VD (E3.1) 03/2020 page 54/173
Path: Setpoint > Fixed value operation setpoints > Functions on/off
• Function “Standby” (chap. 6.2)
• Function “GAS/AIR 2” (chap. 8.3)
• Function “Close all valves” (chap. 8.4)
• Function “Vacuum pump off” (chap. 8.2)

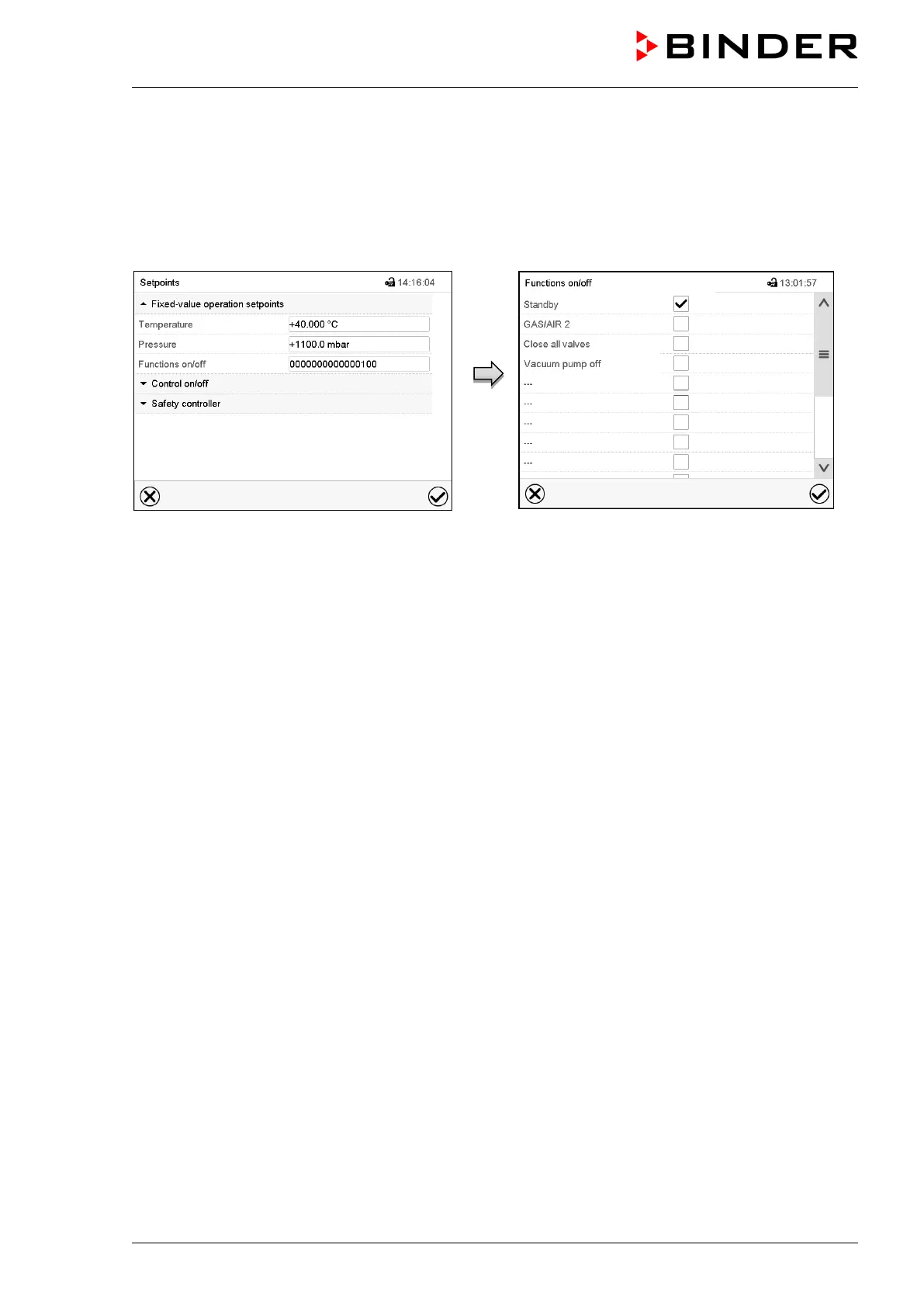

“Setpoints” menu.
Select the field “Functions on/off”.
“Functions on/off” entry menu.
Mark / unmark the checkbox to activate /
deactivate the desired function and press the
Confirm icon
The functions are displayed from right to left.
Activated function: switching status “1” (On)
Deactivated function: switching status “0” (Off)
Example:
Activated operation line “Standby” = 000000000000000
1
Deactivated operation line “Standby” = 000000000000000
0
