Bionet BM3 - Trouble Shoot; ECG Troubleshooting

BM3 www.BIO2NET.com
Revision A
- 34 -
7. Trouble Shoot

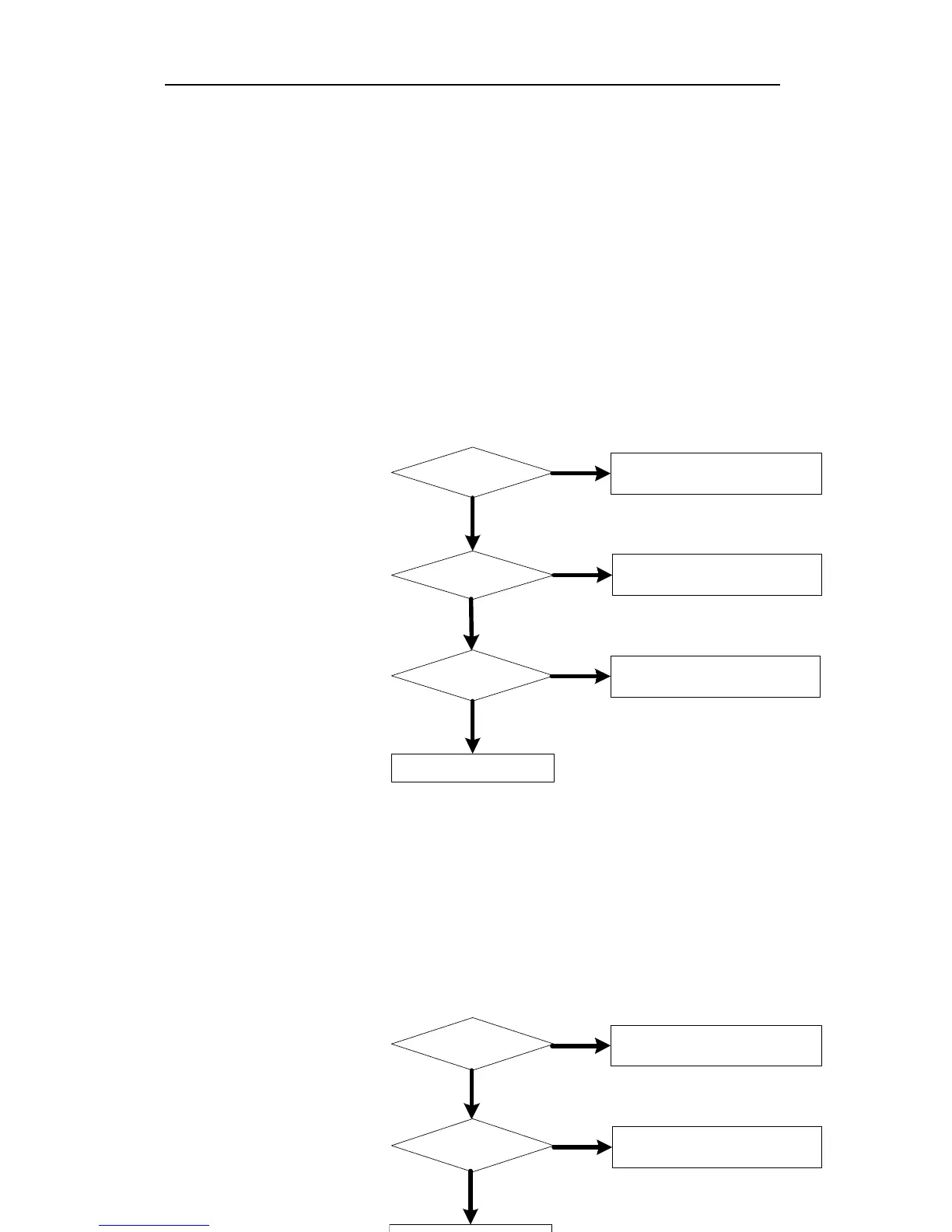

1. Noise in ECG
The patient's skin
is extremely dry
YES
NO
Apply ECG gel or water to the area
of contact then use the electrode.
The electrode is
in poor conditions
The Cable(lead wire)
is disconnected
Repair the ECG B/D
NO
NO
YES
YES
Replace the electrodes (Use CE
compatible products)
Replace lead wires
- Gel is dry.
- Electrodes does not stick well to skin
The extension cables
are disconnected
YES
NO
Replace extension cables
The Finger probe is
in bad conditions?
Repair the Spo2 B/D
NO
YES
Replace the finger probe
Connecters of the equipments
are in bad conditions?
