Chapter 1 Motherboard Description
1-19
1.5 CPU Installation/Jumper Setting

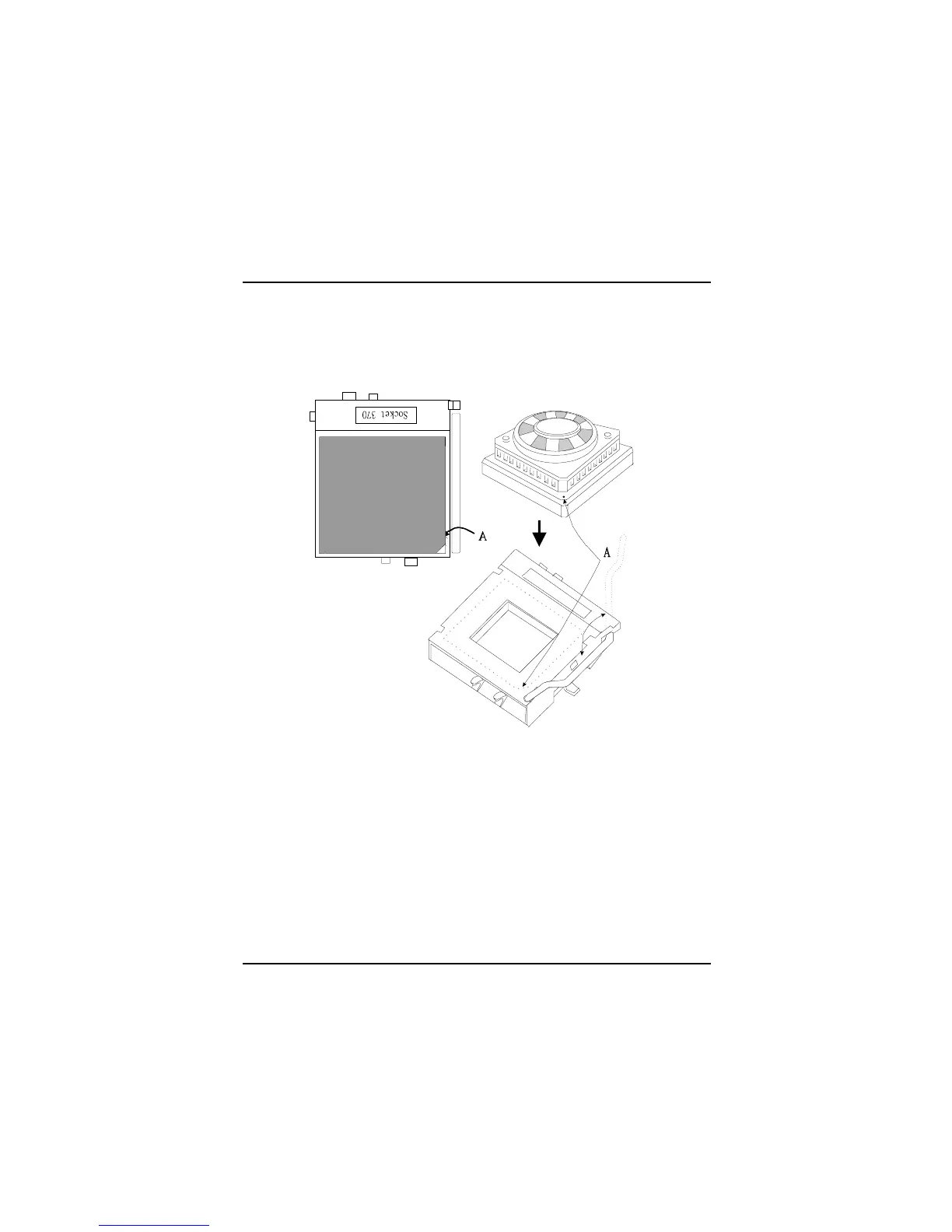

1.5.1 CPU Installation Procedure
1. Pull the lever sideways away from the socket then raise the lever up to a
90-degree angle.
2. Locate Pin A in the socket and look for the white dot or cut edge in the CPU.
Match Pin A with the white dot/cut edge then insert the CPU.
3. Press the lever down to complete the installation.
S
o
c
k
e
t
3
7
0
