2.3 MEMORY MODULE INSTALLATION

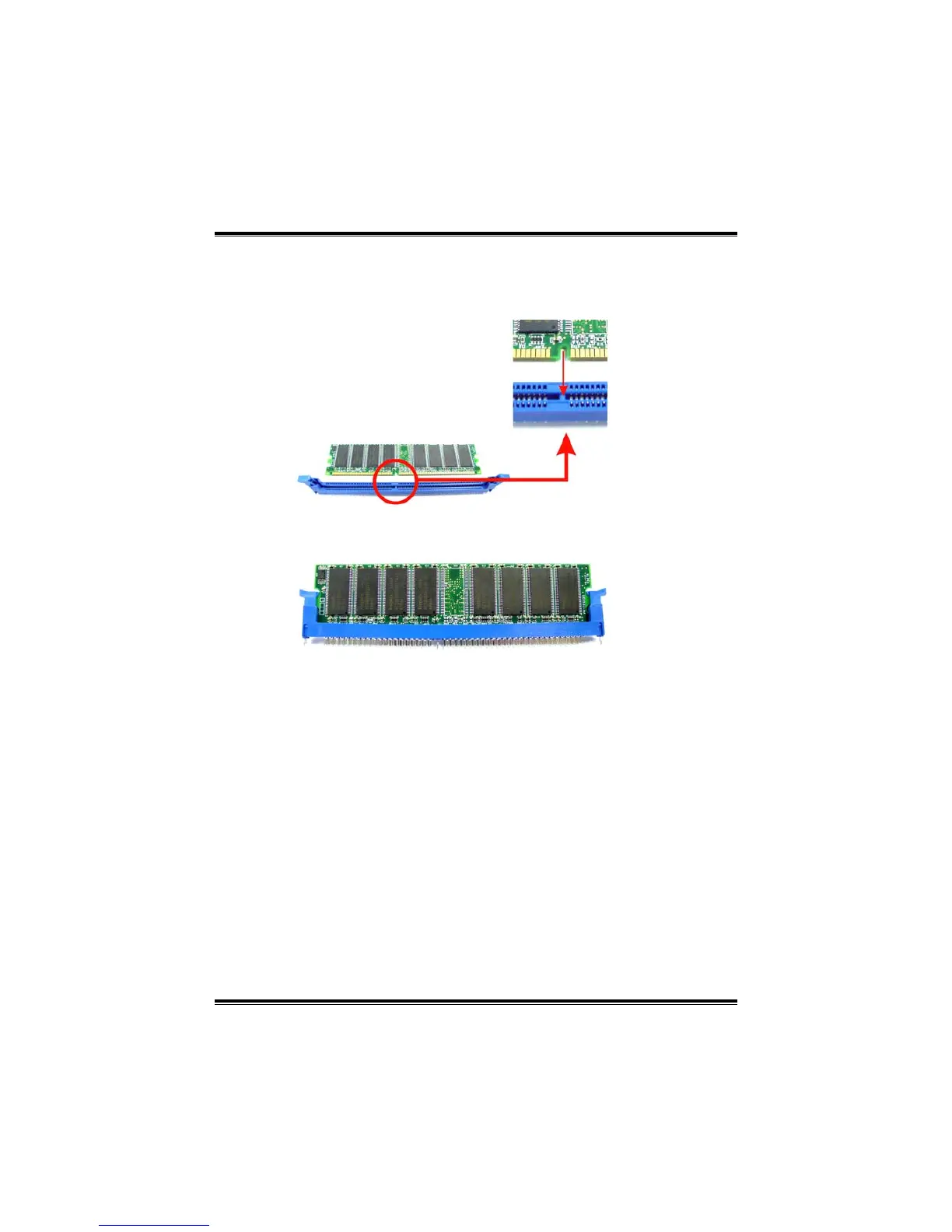

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.
Note:
To assure the system safety, if you need to change DDR modules, firstly,
please unplug the 20-pin power cable with the power connector, and
then you can change the modules. Afterwards, plug in the cable the
power connector again, and finally you can boot up the system.
