Biostar P4M890-M7 FE - BIOS SETUP User Manual

P4M900-M7 FE/P4M890-M7 FE
29
WDRT Run/Stop
This option allows you to select the mode of Watchdog Timer.
The Choices: Stop (default), Run.
WDRT Count
This option allows you to control the count of the Watchdog Timer.
The Choices: 1023 (default); min=0, max=1023, key in a DEC number.
Wakeup Event Detect

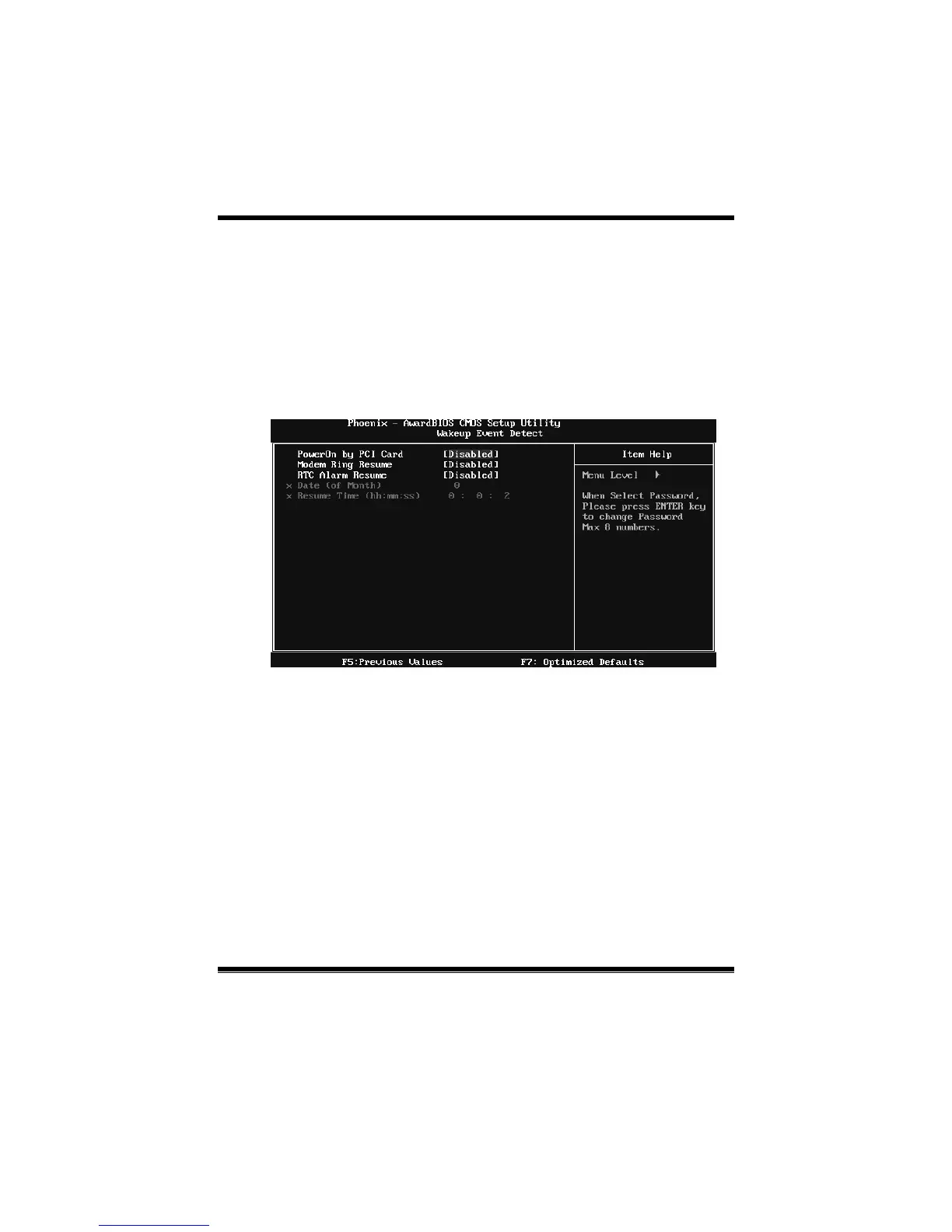

Figure 6.1:IRQ/Event Activity Detect
PowerOn by PCI Card
When you select Enabled, a PME signal from PCI card returns the system to
Full ON state.
For this function to work, you may need a LAN add-on card which supports the
Wake on LAN function. Set the Wake on LAN (WOL) jumper on motherboard
to enable if applicab le.
The Choices: Disabled (default), Enabled.
Modem Ring Resume
This item allows you to disable or enable Modem Ring Resume function.
The Choices: Disabled (default), Enabled.
