Installation
19
The RF line section of the Bird 43 lends itself very readily to panel
mounting. A layout for the panel cut is given in Figure 7. The
thickness of the panel should be about
1
⁄
4
inch. On thinner panels,
build up the thickness with pads or washers to achieve a flush-face
mounting. Attach the line section so that the finger catch is in the
most accessible position.

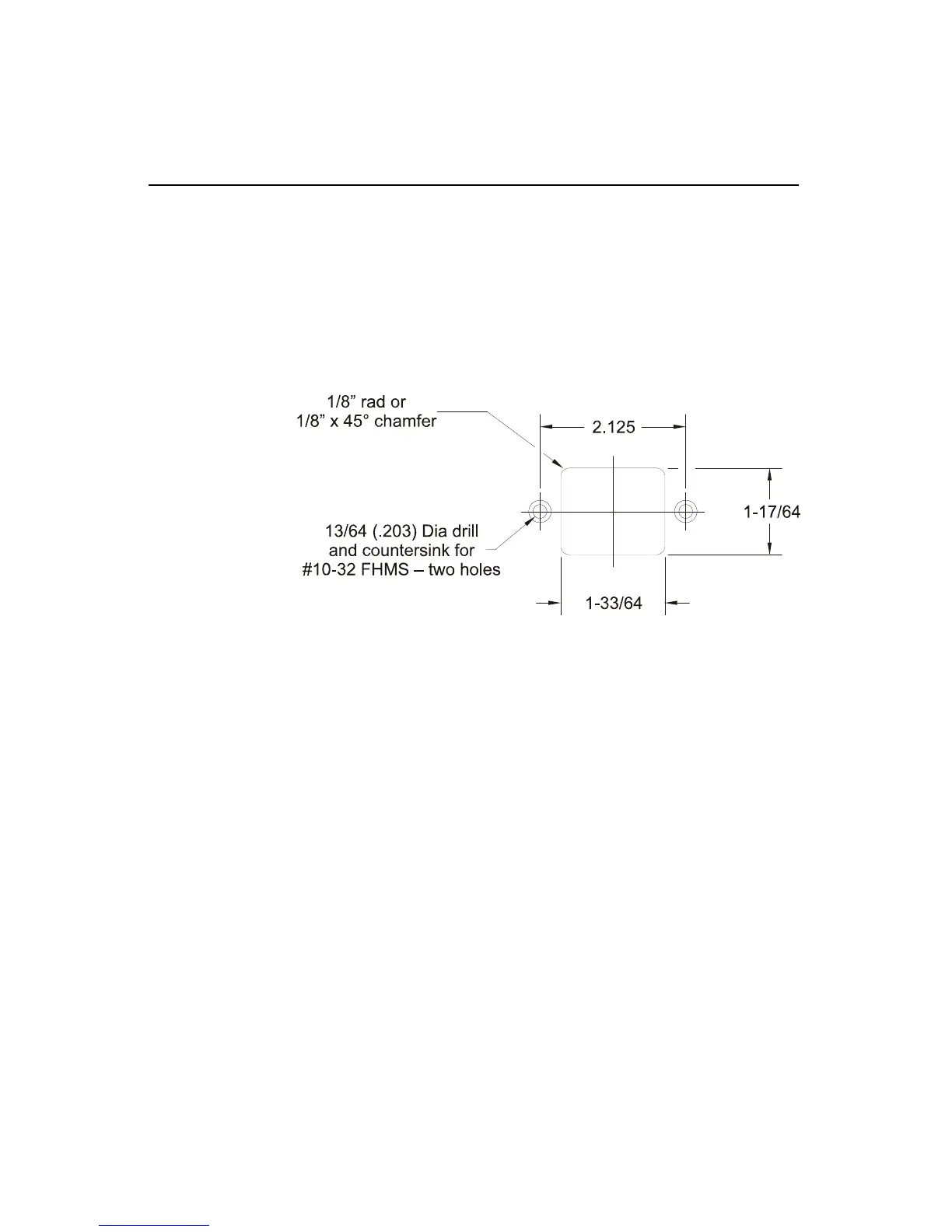

Figure 7
Panel Cut for
Mounting RF
Body
