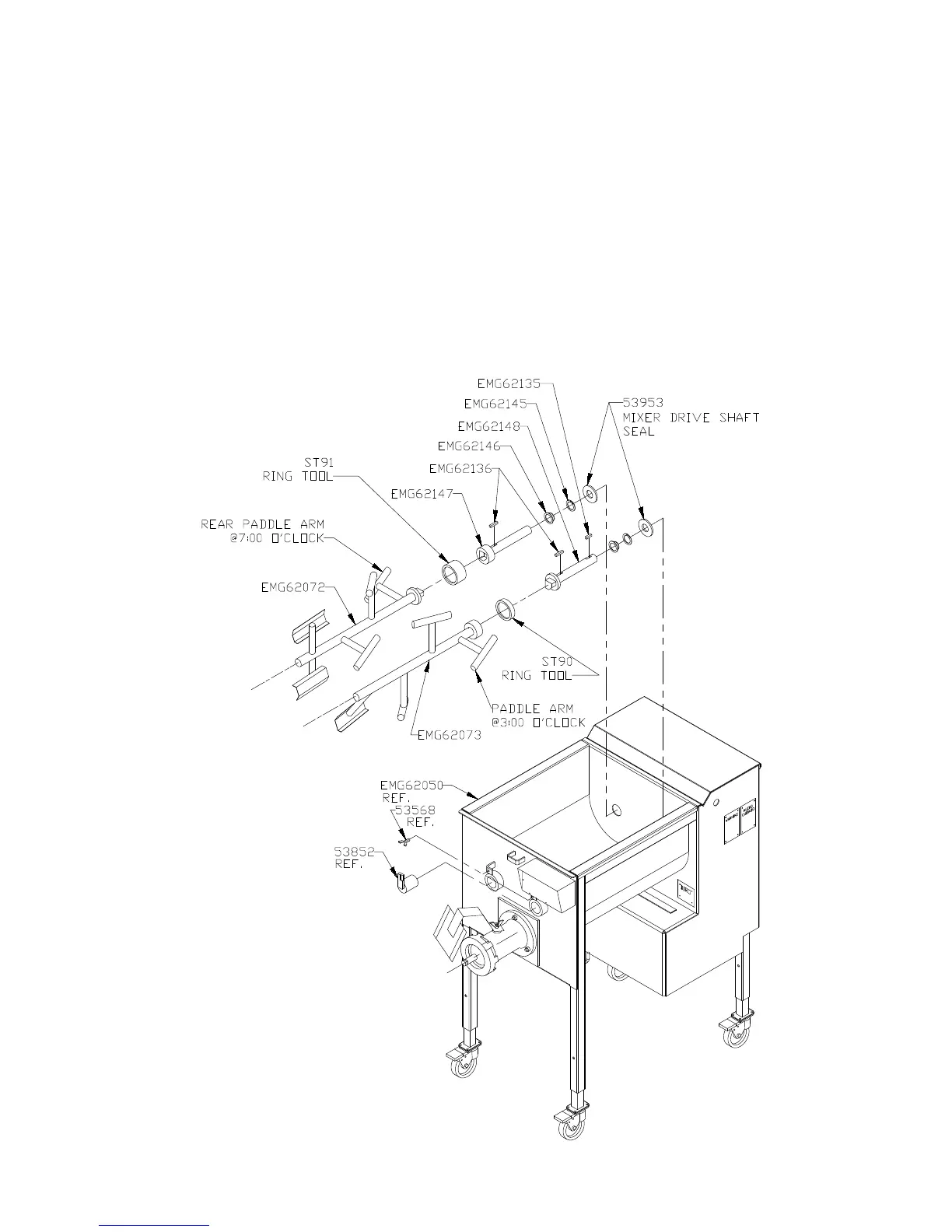

#53953, MIXER DRIVE SHAFT SEAL REPLACEMENT
l. Clean the inside of the groove of the mixer drive shaft seal and mating contact surface of the tub wall
thoroughly with scotch-bright or a roughing pad.
2. Dispense a small amount of #454 Loctite adhesive to both these areas - assure even coverage.
3. Wipe away excess adhesive.
4. Slide the “Pressing Rings” #ST90 and #ST91 over the ends of the mixer drive shaft.
5. Apply “even” pressure to the Rings by installing the paddles and Bearing End Assemblies.
6. Wait 20 minutes Cure-Time.
7. Remove the “Pressing Rings.” The seals will be rmly attached to the tub wall.
NOTE: Part Number for 454 Loctite is #53953A-1
