18
MIXING PADDLE INSTALLATION
S/N’s 6001 to 6057

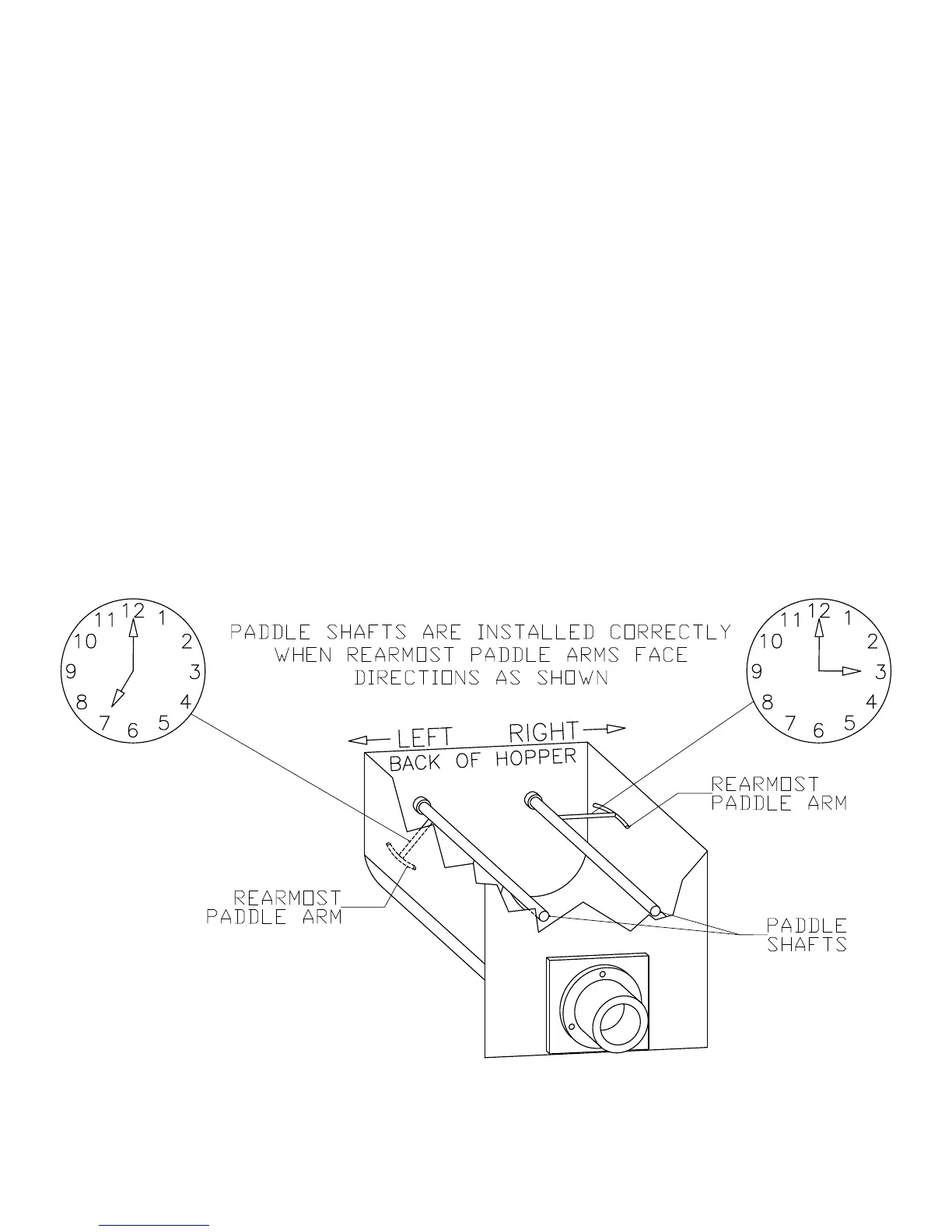

The Mixing Paddles ARE NOT INTER-
CHANGEABLE, however they are timed to
allow for proper mix action.
PADDLE INSTALLATION:
Install the corresponding mixer paddles by
matching the male and female hub drives with
the respective female and male paddle hubs.
Reinstall the paddle lock arms and
tighten the locking wing bolts.
PADDLE REMOVAL:
Removing mixing paddles by rst loosening
the paddle lock knobs (wing bolts located on
front of the machine). Then turn the lock arms
clockwise approx. ¼ turn to unlock the paddle
shafts and remove them from the hopper.
