DRUM ADJUSTMENT AND INSTALLATION
While the hole diameter is xed on the former drum, the thickness of the patty is adjustable. See pictures below.
3. Ensure drum is clean prior to installation. Raise drum cover and insert drum onto drive shaft. Turn round locking
cap clockwise while pushing onto the shaft. You will notice locking cap engage drum shaft when fully seated.

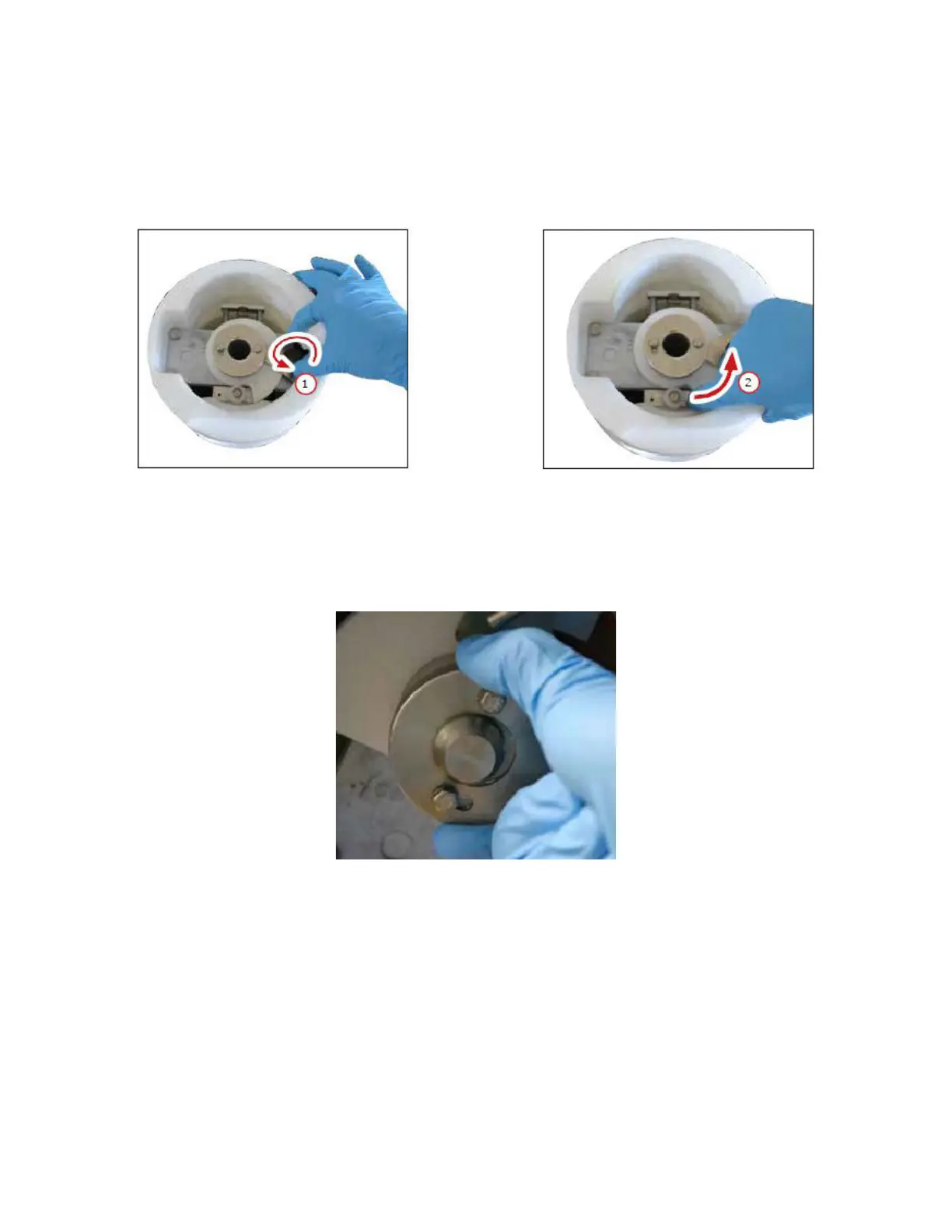

1. Loosen the Black knob or T-handle which presses against the cam.
2. Adjust the cam, by turning it you will notice the thickness or depth of the pusher changes. Adjust to desired depth.
Tighten the Black knob or T-handle securing the cam at your chosen depth.
a. Notice position of the drive pin on drum shaft prior to installation. Align pin and groove for installation.
b. Depressing the pusher to clear the cam may be required to assist in installation.
