21

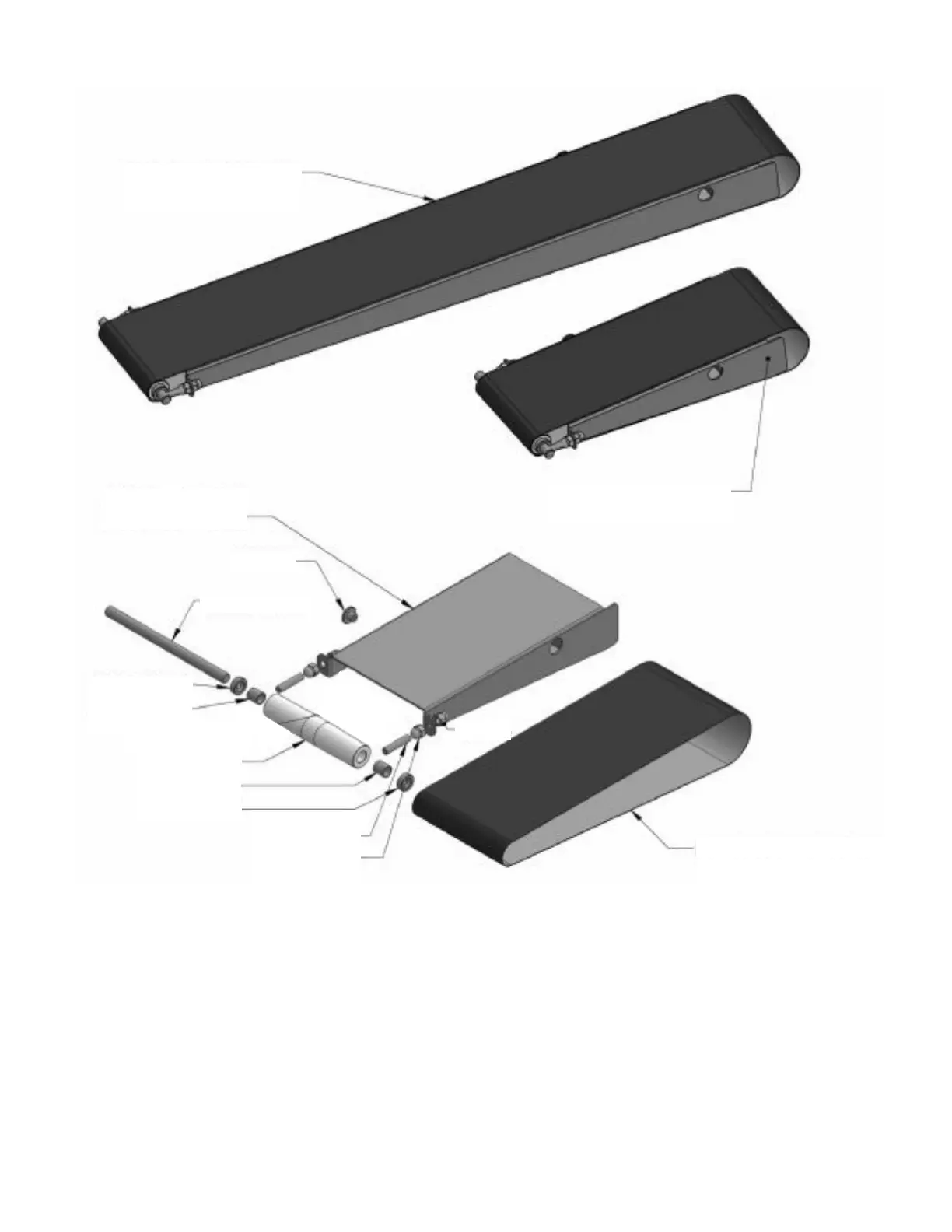

CONVEYOR BELTS AND ASSEMBLIES
DescriptionItem No.
F9314500
Roller, conveyor, w/ F9332200
F9314600
Pin, roller
F9314700
Locking screw, M8 x 38
F9314701
Tensioning nut, conveyor belt
F9314800
Spacer, roller
F9319201
Conveyor belt, long 145 x 1850
F9319202
Conveyor belt, short 145 x 840
F9332200
Sleeve Bushing
Fig No.
1
2
3
4
5
6
7
8
9
F93M0035
Conveyor arm, short
10
11
F93M0039
Long Conveyor Assembly
DescriptionItem No.
F93M0040
Centering disc
F93M0053
Short Conveyor Assembly
GVT105
Acorn nut, M8-1.25, SS
Fig No.
12
13
14
F93M0035L
Conveyor arm, long
1
2
5
6 - Long Belt
7 - Short Belt
8
8
9 - Short Arm
10 - Long Arm
11 - Long Assembly
13 - Short Assembly
12
14
3
4
5
