BIRO F1000N - Page 25

22

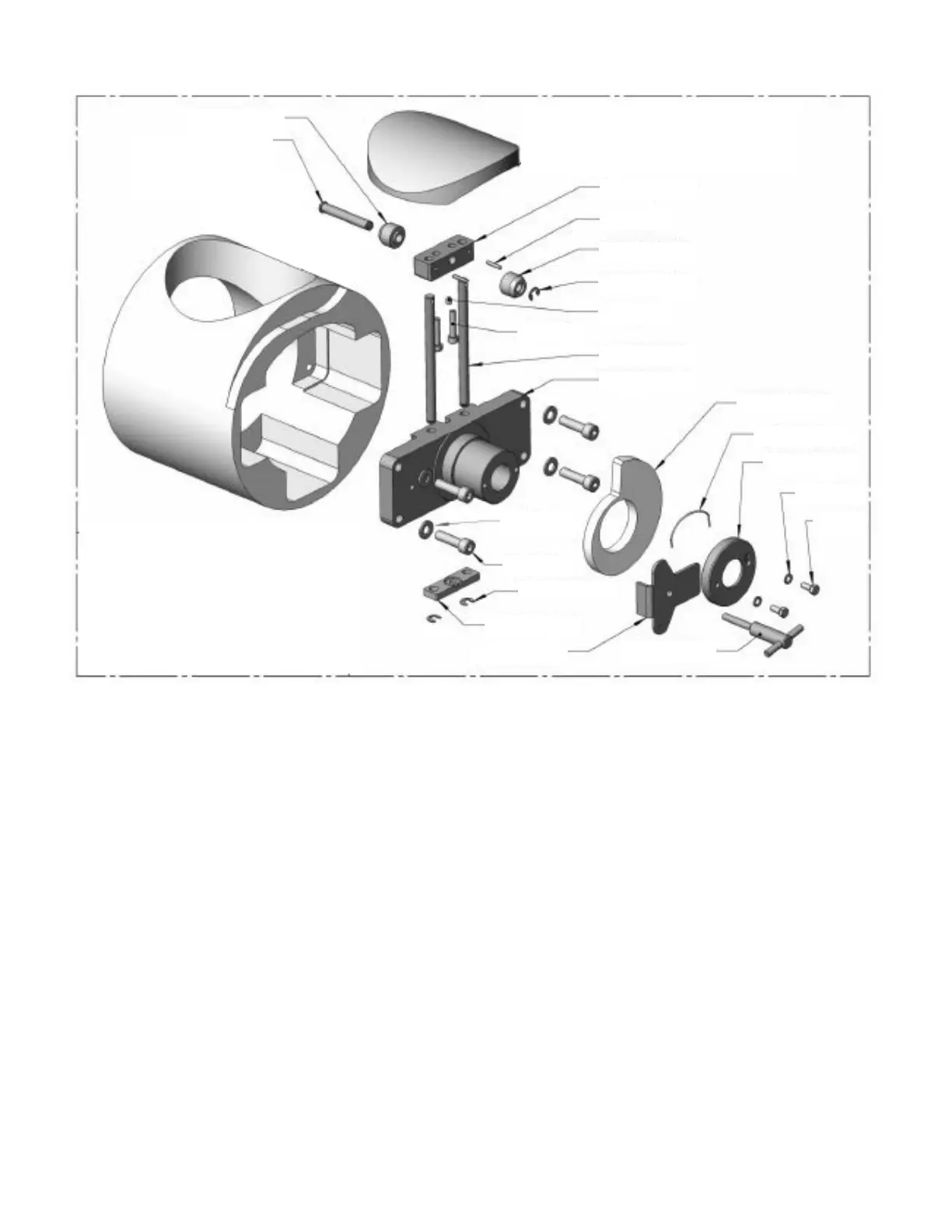

SINGLE HOLE DRUM
Description
Item No.
F9320200
Aluminum frame, old style
F9320400
Plate support
F9320500
Guide plate
F9320600
Pusher shaft
F9320700
Pin, plate support
F9320802
Cylinder’s cam
F9321000
Locking cap
F9321100
Spring, locking cap
Fig No.
1
2
3
4
5
6
7
8
9
10
F9321200
Thickness cam, old style
F9321301
Locker, thickness cam
DescriptionItem No.
GVT040
E-clip, M6 SS
F9325800
Locking handle
GVT071
Roll pin M3 x 20, SS
GVT125
Flat washer, M5, SS
GVT127
Flat washer, M8, SS
GVT193
Hex head screw, M5-0.8 x 12, SS
GVT233
Hex head screw, M8-1.25 x 30, SS
GVT328
Socket screw, M6 x 20, SS
Fig No.
12
13
14
15
16
17
18
19
20
GVT435
Set screw cup pt, M5-0.8 x 5, SS
11
F9320900
Spring, pusher, (not shown)
1
2
3
4
6
5
6
8
9
10
11
12
12
13
14
16
15
17
18
19
20
Contact Biro Manufacturing for Single Hole Drum Assemblies Sold As Complete
