BIRO F1000N - Page 26

23

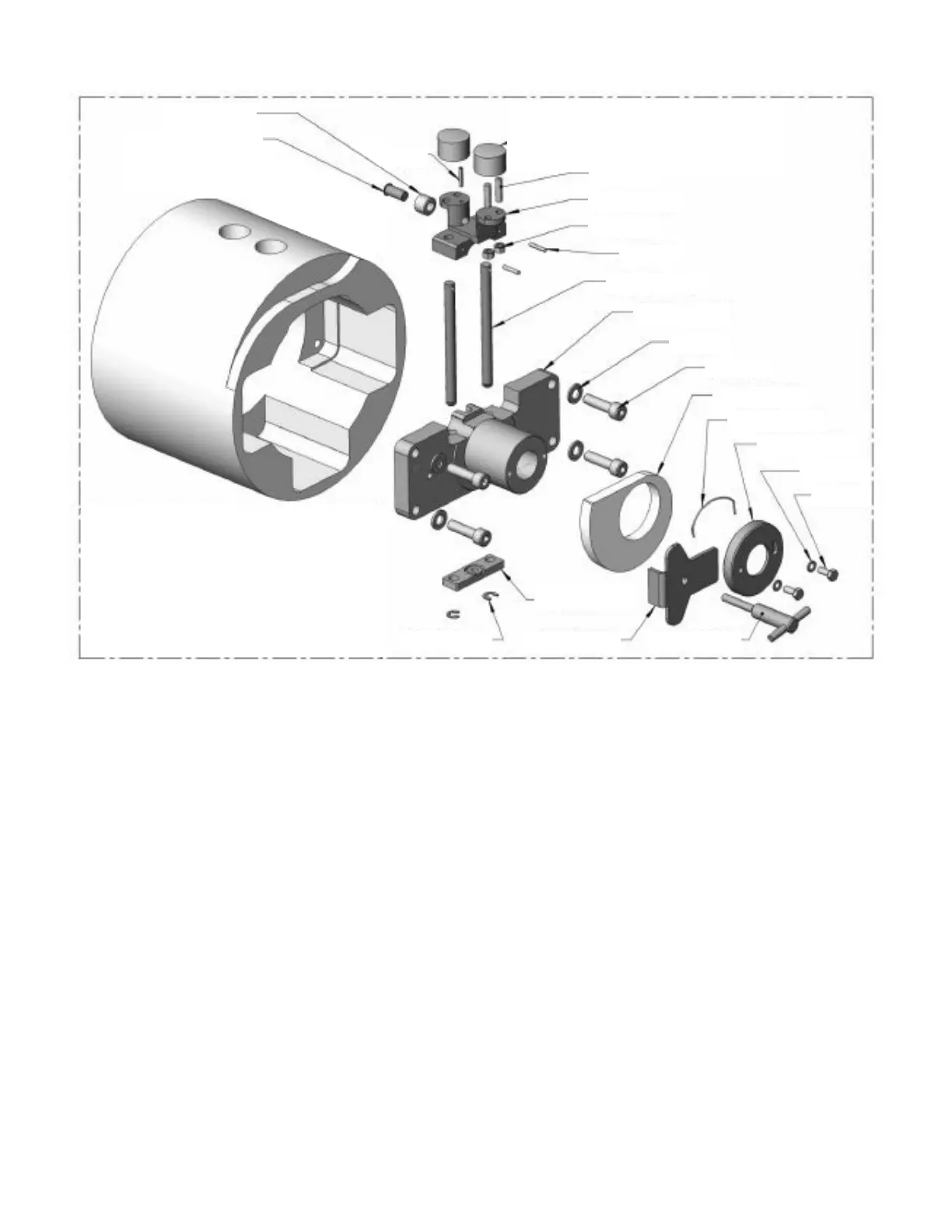

DOUBLE HOLE DRUM
Description
Item No.
F9320205
Aluminum frame, new style
F9320405
Plate support, double drum
F9320500
Guide plate
F9320601
Pusher shaft
F9320702
Pin, plate support
F9320803
Plastic bearing
F9321000
Locking cap
F9321100
Spring, locking cap
Fig No.
1
2
3
4
5
6
7
8
9
10
F9321201
Thickness cam, new style
F9321301
Locker, thickness cam
DescriptionItem No.
GVT040
E-clip M6 SS
F9325800
Locking handle
GVT071
Roll pin M3 x 20, SS
GVT125
Flat washer, M5, SS
GVT127
Flat washer, M8, SS
GVT193
Hex head screw, M5-0.8 x 12, SS
GVT233
Hex head screw, M8-1.25 x 30, SS
Fig No.
12
13
14
15
16
17
18
19
20
11
F9320900
Spring, pusher, (not shown)
Contact Biro Manufacturing for Double Hole Drum Assemblies Sold As Complete
GVT085
Hex nut, M5 x 0.8, SS
GVT457
Set screw at pt, M5-0.8 x 20, SS
1
2
3
4
6
8
9
10
11
12 13
16
15
17
18
19
5
14
20
14
