ANTSPACE HK3 Water cooling container & Dry-Wet Tower Product Manual
36

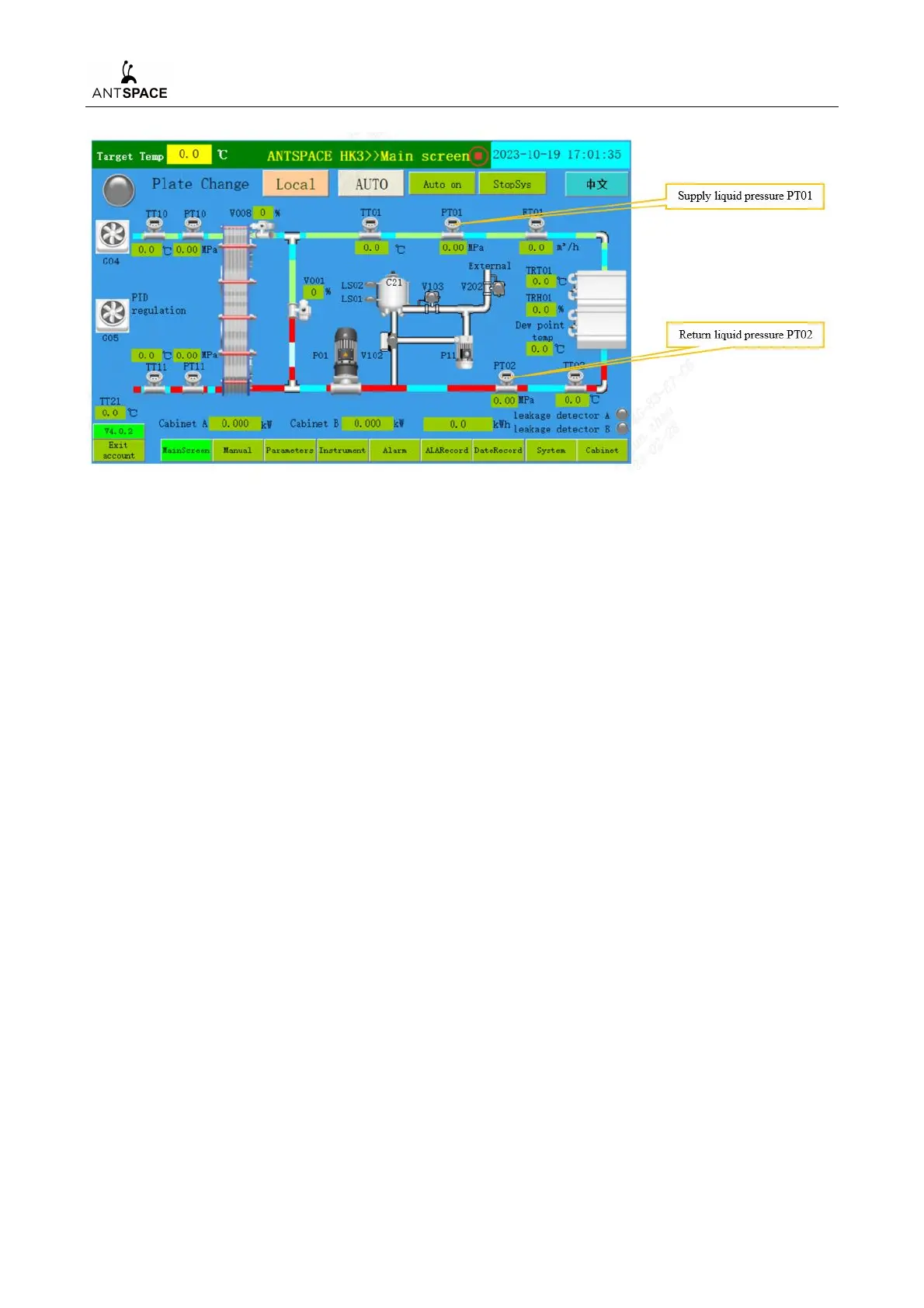

Figure 7-16 System operation interface
3) Regular Replenishment of Water Tank
When water tank C21 needs to be replenished with a small amount of coolant, the following
methods can be referred to:
Method 1: Same as the first Water filling, connect the Water filling pump P11 to an external water source (with
a certain pressure; fill the connecting pipeline), turn on the Water replenishment mode, and externally add Water to
the water tank C21.
Method 2: open the installation chuck of the exhaust valve on the top of the water tank (refer to Figure 7-12),
and manually add Water from the manual filling port to the inside of the water tank.
7.4 Electrical Wiring
The electrical system requirement for the equipment is TN-S three-phase five wire system.
Due to the two distribution cabinets (A/B cabinets) inside the equipment, in order to ensure safe and
stable operation of the equipment, two 500kW three-phase five wire cables (with a rated current of
1200A for the main switch) should be prepared in advance on site.
