ANTSPACE HK3 Water cooling container & Dry-Wet Tower Product Manual
41
below. The wiring diagram is shown in Figure 7-23 Location of the Water level switch and
temperature sensor
.
The wiring steps are as follows:
1: Disassemble the screw sleeve of the metal joint and divide it into two parts: the screw sleeve
and the metal joint.
2: The end of the metal joint should be connected to a 10 meters weather resistant metal
corrugated pipe and form a whole.
3: Inside the container, pass 6 cables through the screw sleeve and then through the reserved
outlet hole (located at the bottom right of the inlet and outlet Water pipe intersection).
4: Thread these 6 cables through one side of the metal joint and the other side of the corrugated
pipe.
5: Insert the metal joint into the reserved outlet hole of the container, where the outer part of
the container is a metal joint and the inner part is a screw sleeve. Tighten the screw sleeve to the
metal joint end and tighten it to a fixed torque to achieve good sealing effect.
6: When laying out metal corrugated pipes outdoors, they should follow the lower one of the
interconnecting pipelines between the container and the cooling tower, and be fixed with 5 stainless
steel straps included in the accessories.
7: The other end of the cable should be connected to the junction box left by the cooling tower.
The correct wiring sequence should correspond one by one between the number tube of the cable
and the number of the terminals in the junction box.

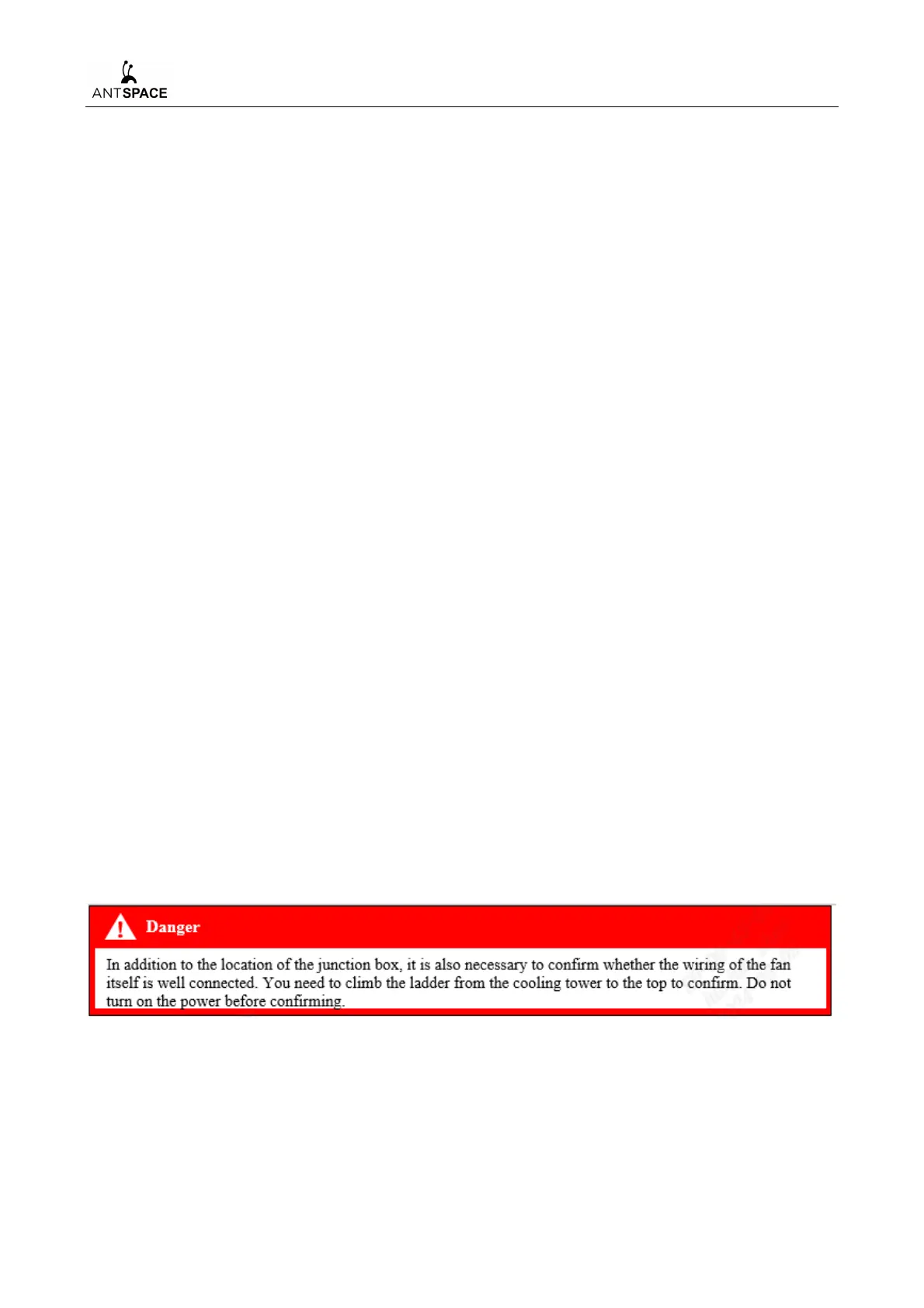

8: After the wiring is completed, it is necessary to start and debug the operation to ensure its
correctness and good wiring.
