There are grounding studs on both sides of the container, and the distribution cabinet should also
be reliably grounded. Therefore, it is chosen to reliably ground the shell of the container and the shell
of the distribution cabinet. When leaving the factory, the phase sequence of the equipment has been
determined. After the equipment arrives at the site, it only needs to adapt to the phase sequence of the
on-site substation.

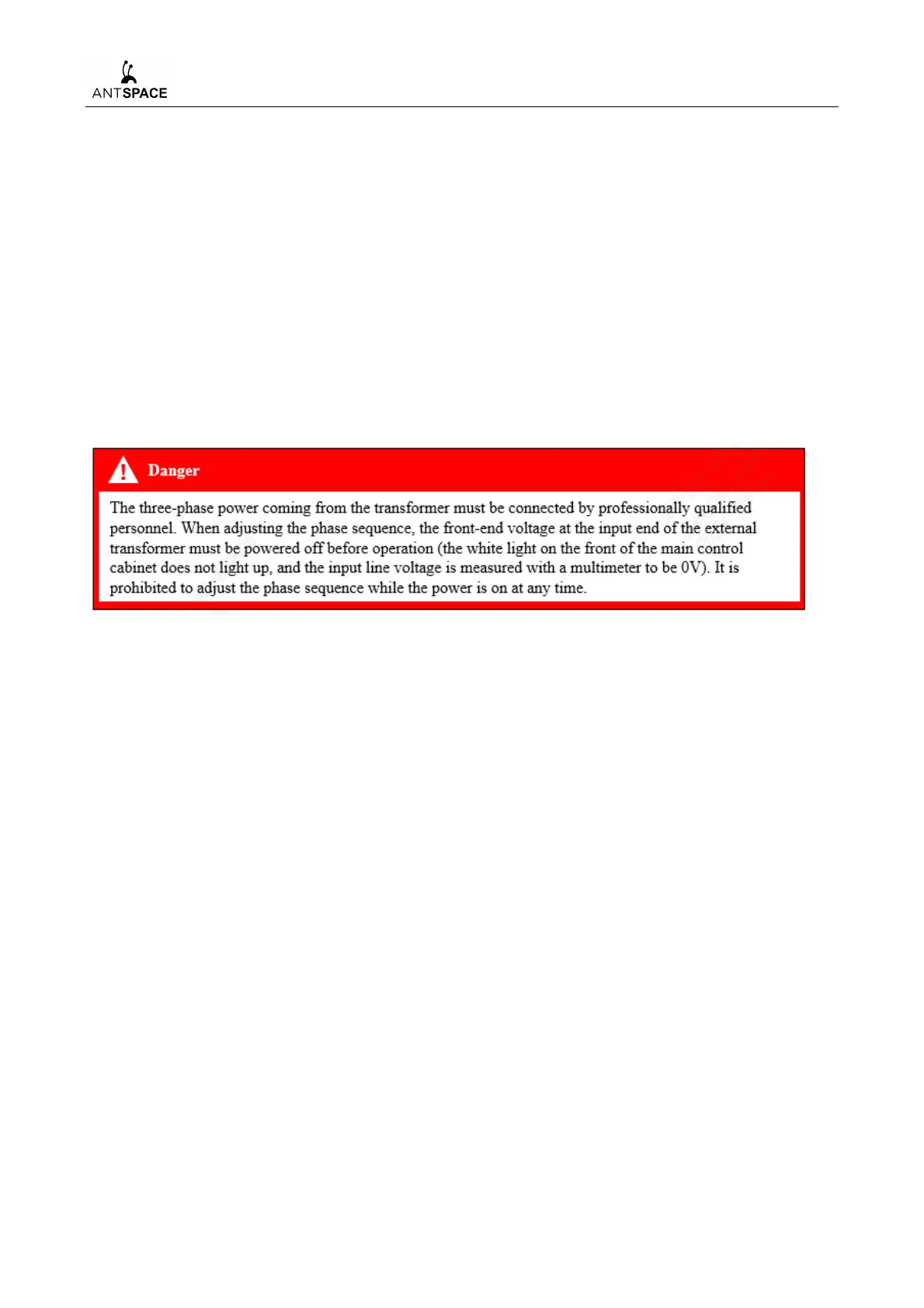

The operation is as follows: connect the L1, L2, L3, N, PE three-phase and five wires of the
substation to the distribution cabinet, power on the main switch of the main control cabinet, and
observe whether there is a power failure alarm on the LCD screen; If there is a power failure alarm,
please adjust the phase sequence of the three phases connected to the main control cabinet L1, L2,
L3; If there is no fault alarm on the LCD screen, it can operate normally.
Due to the separation of the cooling tower and container, there are also three heat dissipation
fans, a spray pump, a Water level sensor, and a temperature sensor above the cooling tower.
After the positions of the cooling tower and container are fully determined, it is necessary to
wire four motors and two sensors. The Water level sensor and temperature sensor have been required
to be installed in the designated positions. The indicating point (depression) of the Water level sensor
must face upwards.
One end of the cable container for the cold tower fan, spray pump, Water level sensor, and
temperature sensor is already connected to the terminal inside the cold tower control cabinet, and the
other end is reserved inside the container. When it is necessary to flip the wire to the side of the
cooling tower, the corrugated pipe metal joint, 10 meters weather resistant metal corrugated pipe, and
5 stainless steel straps in the equipment should be first identified.
All cable wiring locations are at the junction box on the side wall of the cooling tower. The order of
the three cooling fans and spray cooling pumps is not specified. The wiring sequence is U, V, W
(from left to right). The location of the cooling fan and junction box See Figure 7-22. The Water level
sensor is installed as shown in Figure 7-22 Location of the fans and wiring box
