ANTSPACE HK3 Water cooling container & Dry-Wet Tower Product Manual
39

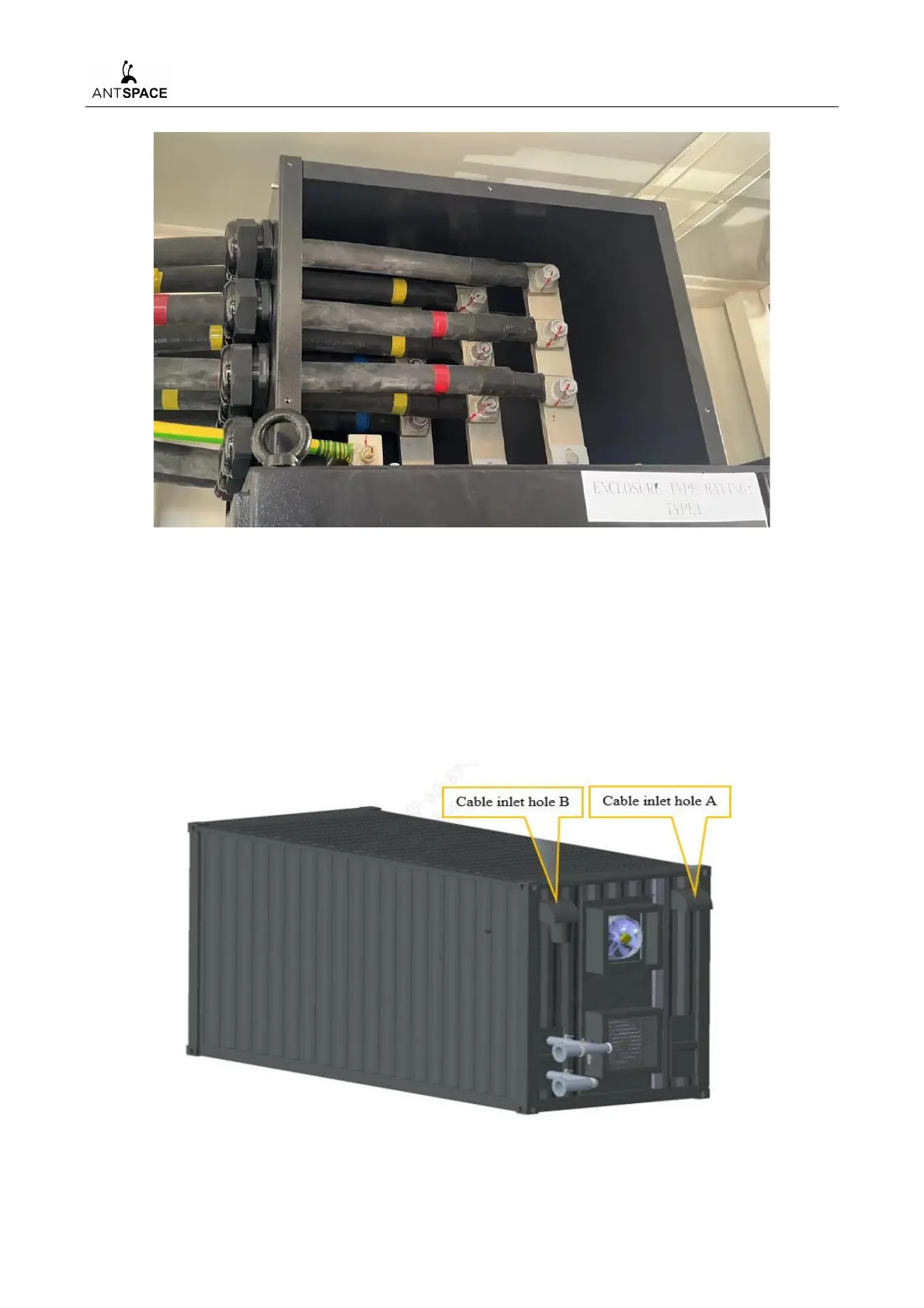

Figure 7-20 Cable connection diagram
The cables are connected from the upper two openings on one side of the container exhaust fan,
as shown in Figure 7-21 (note: it is necessary to use rainproof cloth and cover in the accessories for
protection). The cables are connected from the top junction boxes of the two distribution cabinets and
extend all the way to the corresponding copper bars. They are installed and fixed with screws (already
installed at the copper bar openings).
Figure 7-21 Cable inlet holes
