5 Mounting
5.1 Transporting the compressor
Transport the compressor screwed onto the pallet or lift
it using the lifting eyes. Lift CS.9. and CS.105 with a lift-
ing beam only, see figure 1, page 50.
Weight 1200..1900 kg (depending on the model)
DANGER
Suspended load!
Do not step under the machine!

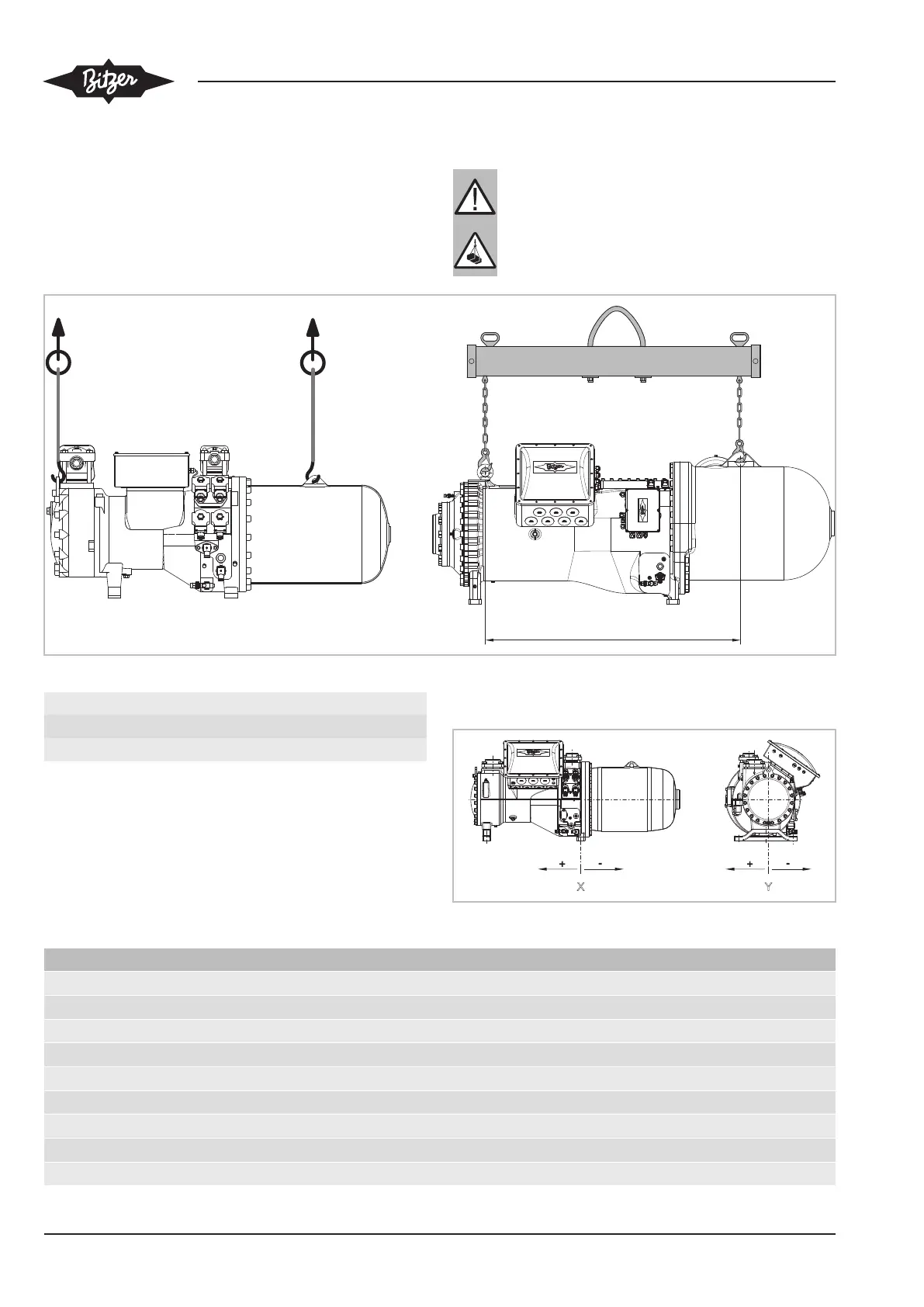

Fig.1: Lifting the compressor. Left CS.6. .. CS.8., right CS.9. and CS.105
X (mm)
CS.9. 1150
CS.105 1448
5.1.1 Centres of gravity and weights
Fig.2: Centres of gravity using the example of the CSH85
CSH compressors Weight (kg) Centre of gravity X (mm) Centre of gravity Y (mm)
CSH6553-35Y 314 89 22
CSH6553-50(Y) 322 100 22
CSH6563-40Y 314 107 22
CSH6563-60(Y) 322 120 22
CSH6583-50Y 365 39 22
CSH6593-60(Y) 365 46 22
CSK6153-50 322 100 22
CSK6163-60 322 120 22
CSH7553-50Y 500 95 25
