KB-206-250
If the ECOLITE condensing unit is mounted on mount-
ing brackets, the installation surface under the four lat-
eral fixing points must be at least 6 x 6 cm. Use three
mounting brackets (on the right, in the middle and on
the left). It is not necessary to screw the bracket in the
middle to the device.
NOTICE
When installing the condensing unit in areas
where extreme wind loads may occur, screw it
always firmly to the ground!
If installed on a roof, provide sufficient lightning
protection!
CAUTION
The fins of the condenser have sharp edges!
Risk of lacerations.
Before performing any work on the condensing
unit: Wear protective gloves.
30 cm
50 cm30 cm
30 cm
200 cm
≥ 30 cm

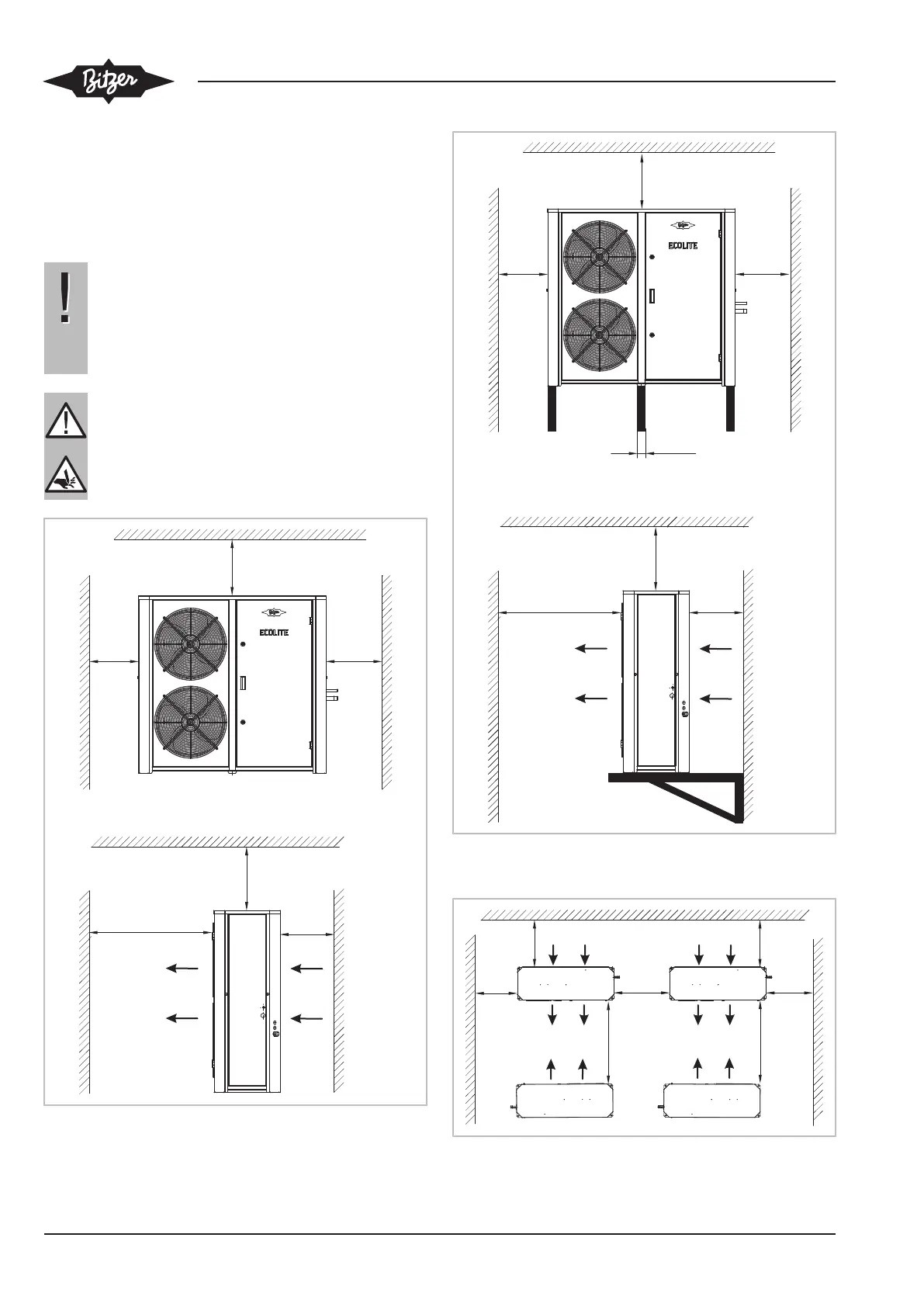

Fig.6: Minimum distances to the wall and ceiling (example shows
LHL5E/ .. )
25 cm
50 cm25 cm
30 cm
200 cm
≥ 25 cm
≥ 6 cm
Fig.7: Minimum distances to the wall and ceiling when mounted on a
mounting bracket (example shows LHL5E/ ..)
≥ 100 cm
30 cm
≥ 30 cm
50 cm
≥ 30 cm
≥ 300 cm
≥ 300 cm
Fig.8: Minimum distances when installing several condensing units
