⚫ Set the stop frequency.
Press StopFreq, input ‘10’ from the keyboard and choose the unit ‘kHz’ to set the stop
frequency to 10 kHz.
⚫ Set the sweep profiles.
Press Type and choose Linear.
When all parameters above are set, the linear sweep waveform generated is shown in Figure
80.
Example 8: Generate a Burst Waveform
Generate a burst sine waveform with 5 cycles. The burst period is 3 ms. Use internal trigger and
0° start phase.
⚫ Set the burst function.
Press Waveforms, and choose the sine waveform as the burst function.
⚫ Set the frequency, amplitude and offset.
1. Press Frequency/Period and choose Frequency which will display in a blue color. Input ‘10’
from the keyboard and choose the unit ‘kHz’ to set the frequency to 10 kHz.
2. Press Amplitude/HighLevel to choose Amplitude which will display in a blue color. Input ‘4’

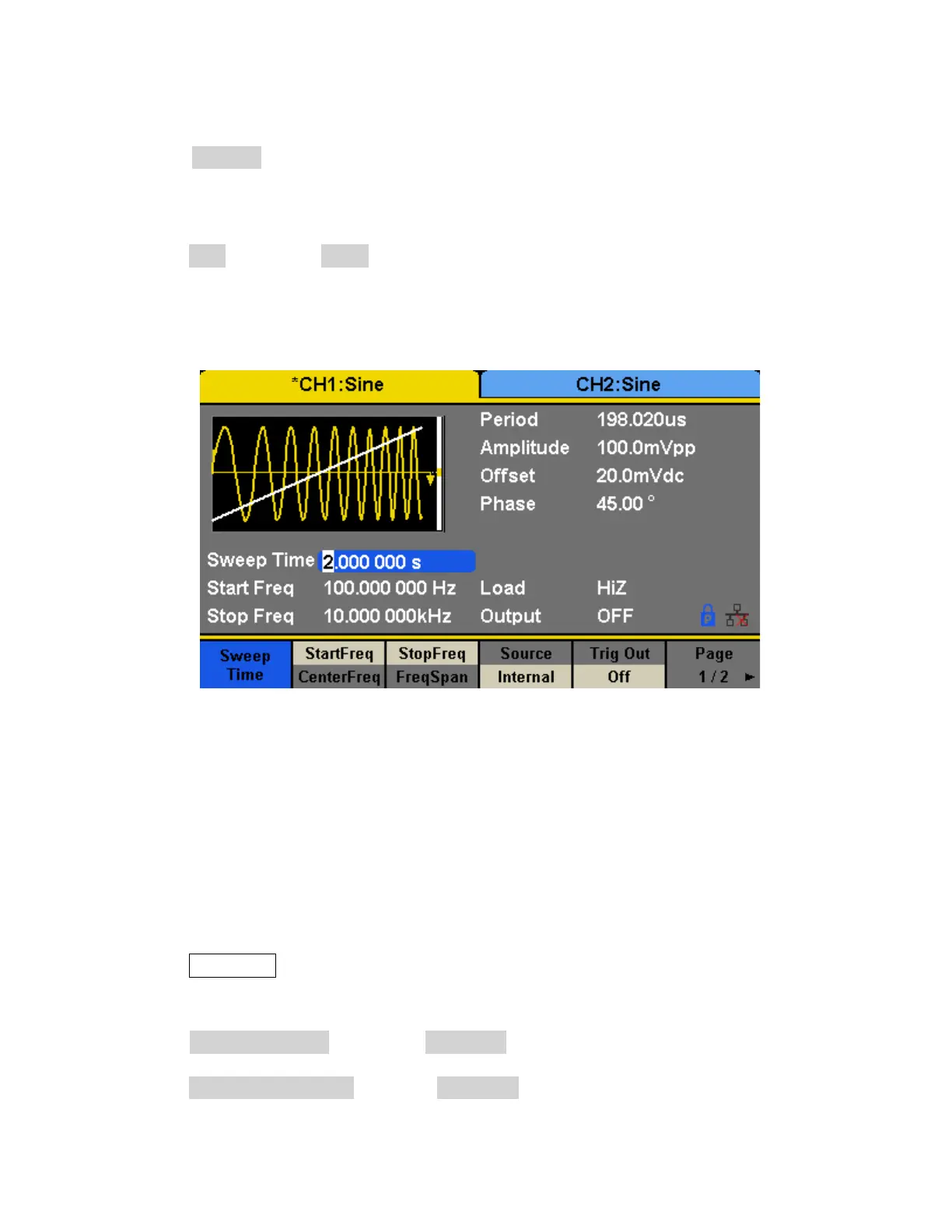

Figure 80 - Generate a Linear Sweep Waveform
