Amplitude shift keying modulation
The source is external. Use the [Aux In/Out]
connector at the rear panel.
Set the frequency at which the output amplitude
shifts between the carrier amplitude and zero
(internal modulation only): 1 mHz to 50 kHz.
PSK Modulation
When using PSK (Phase Shift Keying), configure the generator to “shift” its output phase
between two preset phase values (carrier phase and modulating phase). The default
modulating phase is 180°.
Press Mod → Type → PSK; the parameters of PSK modulation are shown in Figure 34.
Phase shift keying modulation
Table 13 - Table 13 - ASK Modulation Menu
Description
Note: The methods of setting the parameters of ASK are similar to AM.

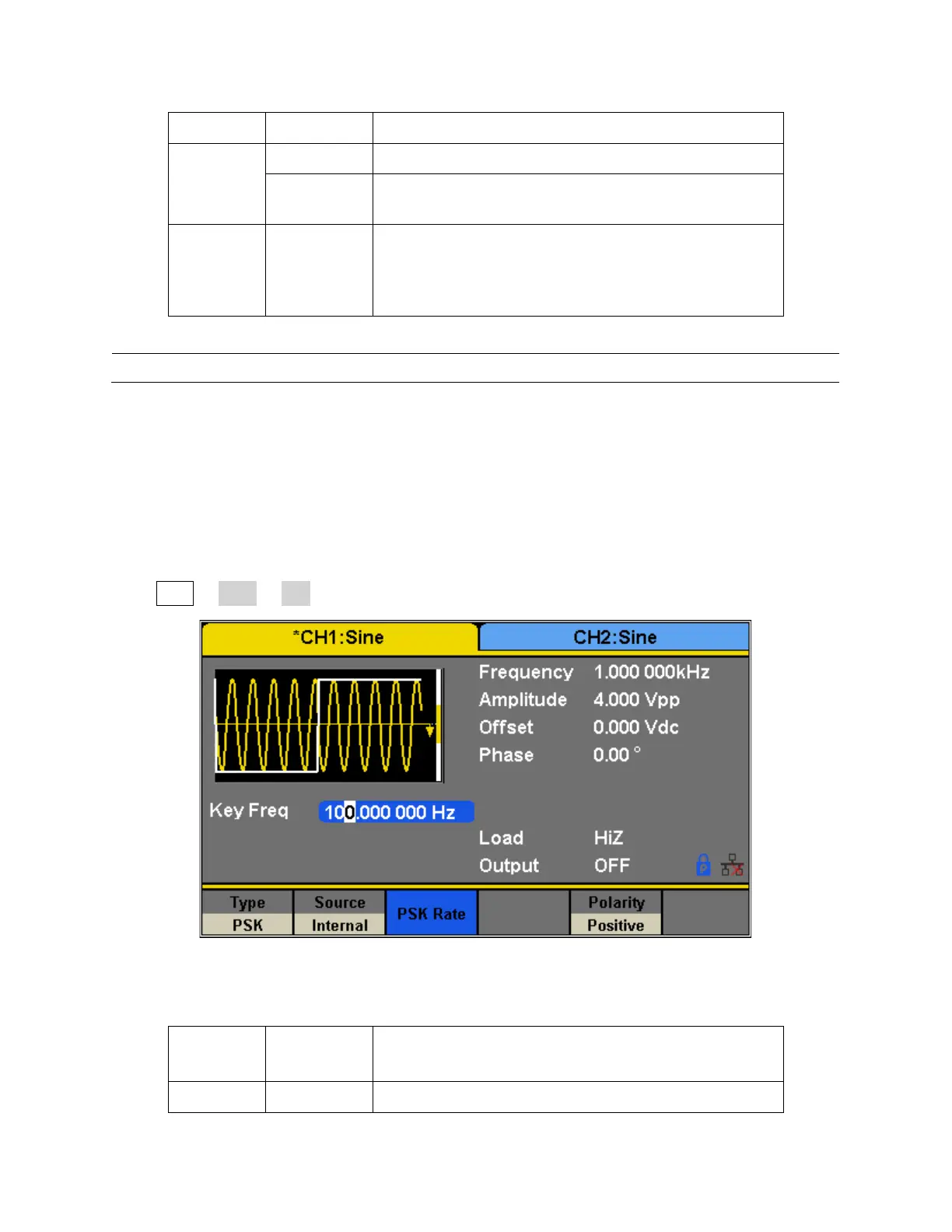

Figure 34 - Setting Interface of PSK Modulation
