56
3.7 List Operation
List mode lets you generate complex sequences of input changes with rapid, precise timing.
This is useful when running test sequences with a minimum amount of overhead.
The parameters of List operation include the name, number of steps (2-84), step width time
(20us-3600s), and every steps set value and slew rate. The list file can be saved in non-volatile
memory where it can be quickly recalled. Users can edit up to 7 groups of List files in CC mode
only.
In List operation mode, the electronic load begins to enable the List operation when it receives
the trigger signal and will continue until the List operation is completed or the instrument
receives another trigger signal.

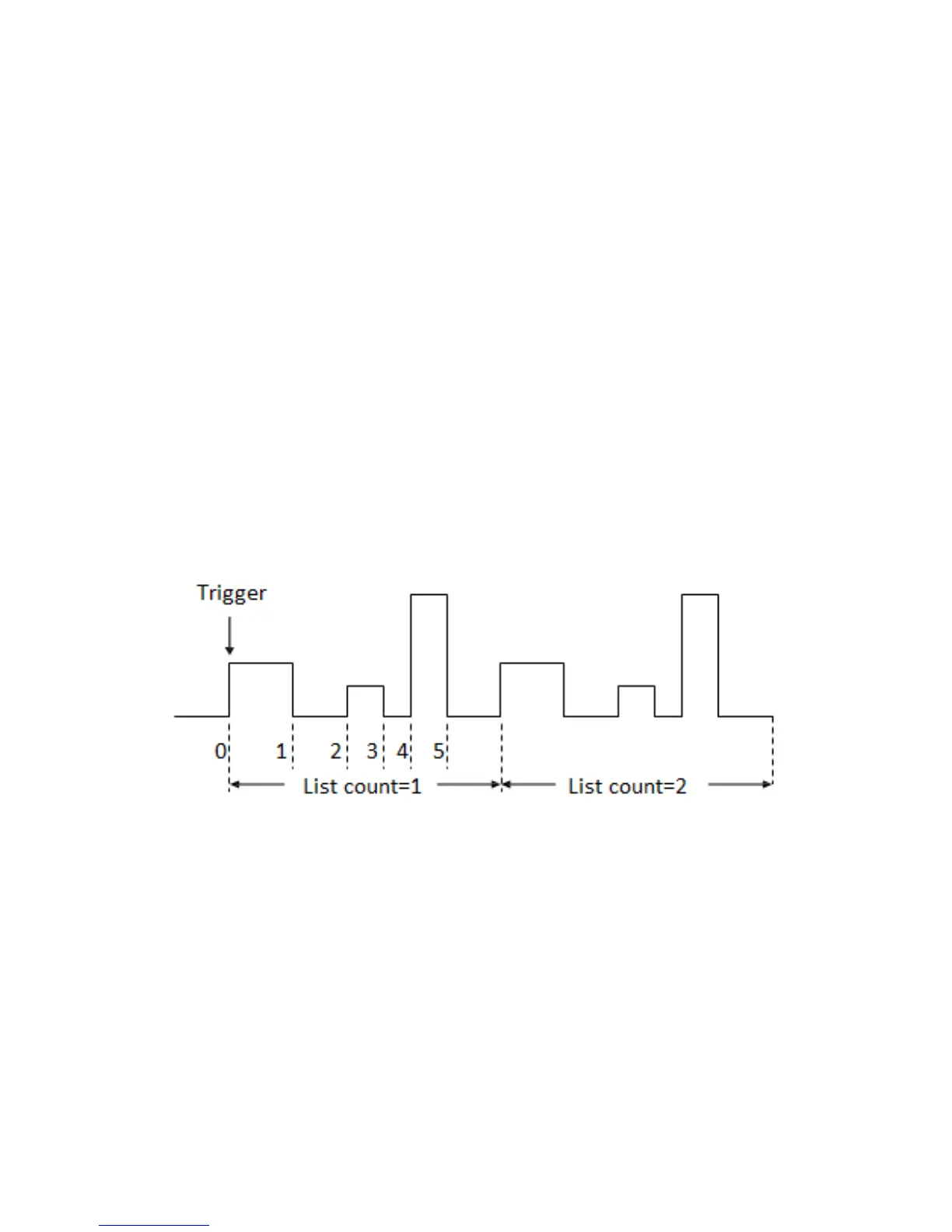

List Sequence
Figure 23 - List Mode Current Waveform
