BK Precision 8614 User Manual

78
4 Remote Operation
4.1 Interface Connection
RS-232

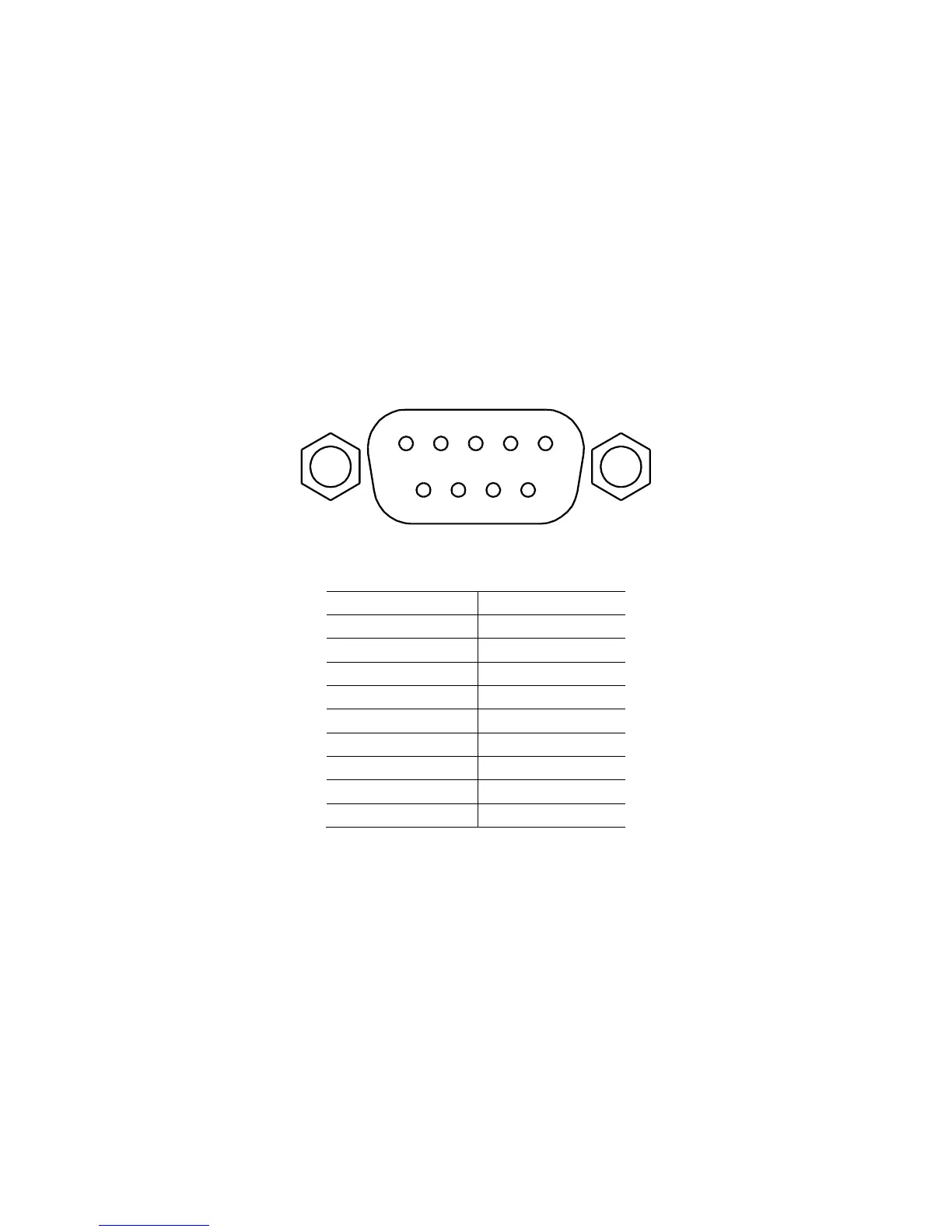

For RS-232 connectivity, refer to the diagram below for pinout information. The RS-232 is
labeled in the rear panel and it is a female DB-9 interface.
Table 6 - RS232 Pin Outs
PIN
Description
1
-
2
Transmit Data
3
Receive Data
4
-
5
GND
6
-
7
CTS
8
RTS
9
-
A straight pin-to-pin DB9 female to DB9 male serial cable is required for using the RS-232
interface. Do not use a null modem or crossover DB9 serial cable.
1
2
3
4
5
6
7
8
9
