Rear Panel

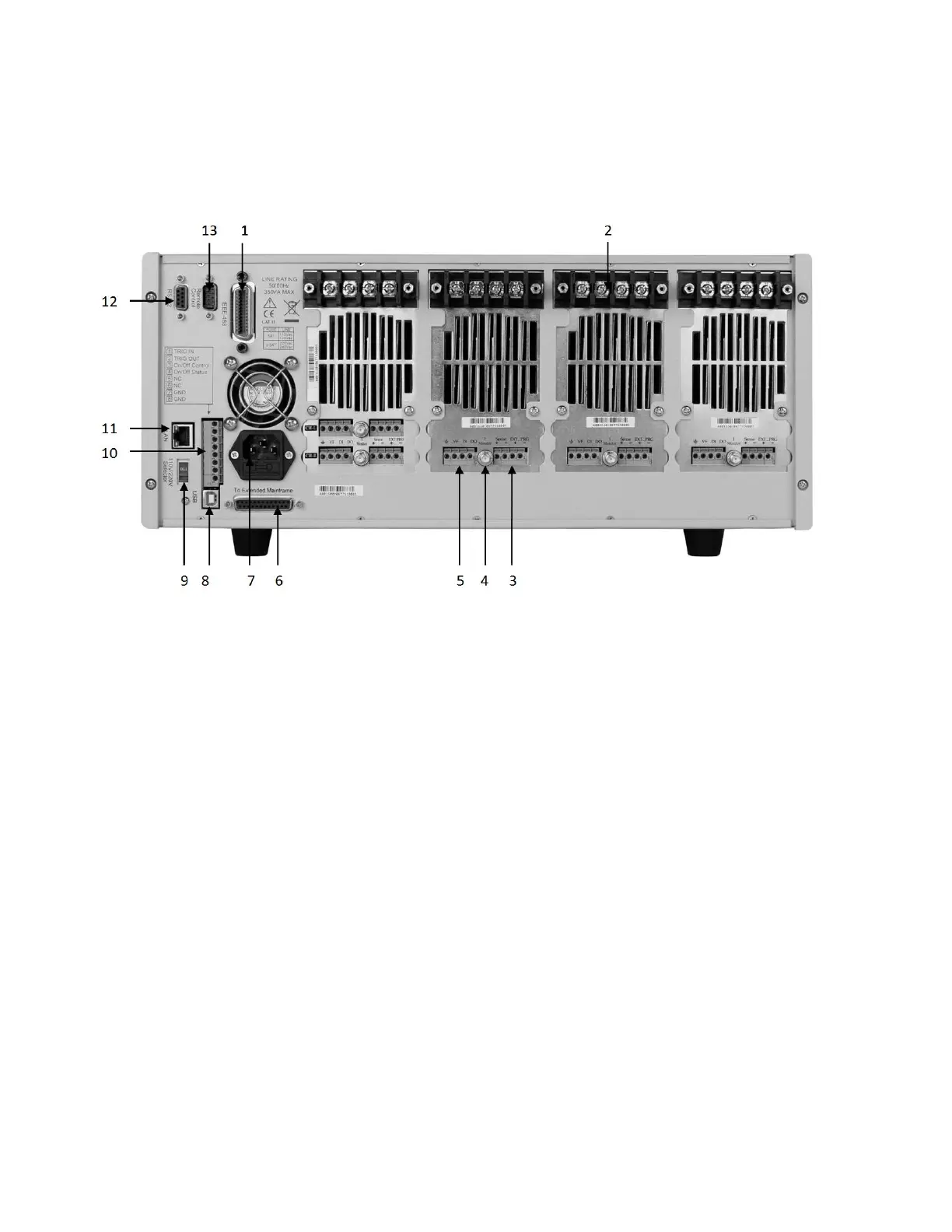

Figure 2 - MDL Series Rear Panel
1) GPIB interface
2) Input terminal of module
3) Remote measurement and external input control terminal
4) Current monitoring output
5) Digital I/O and VF output terminal
6) Extended module interface
7) AC Power input socket
8) USB interface
9) Line voltage selection switch (110V/220V)
10) Trigger I/O and load on/off terminals
11) LAN interface
12) RS-232 interface
13) Not used – for factory use only
