25
The following figures show examples of how channels are assigned when single-channel and dual-
channel modules are installed.

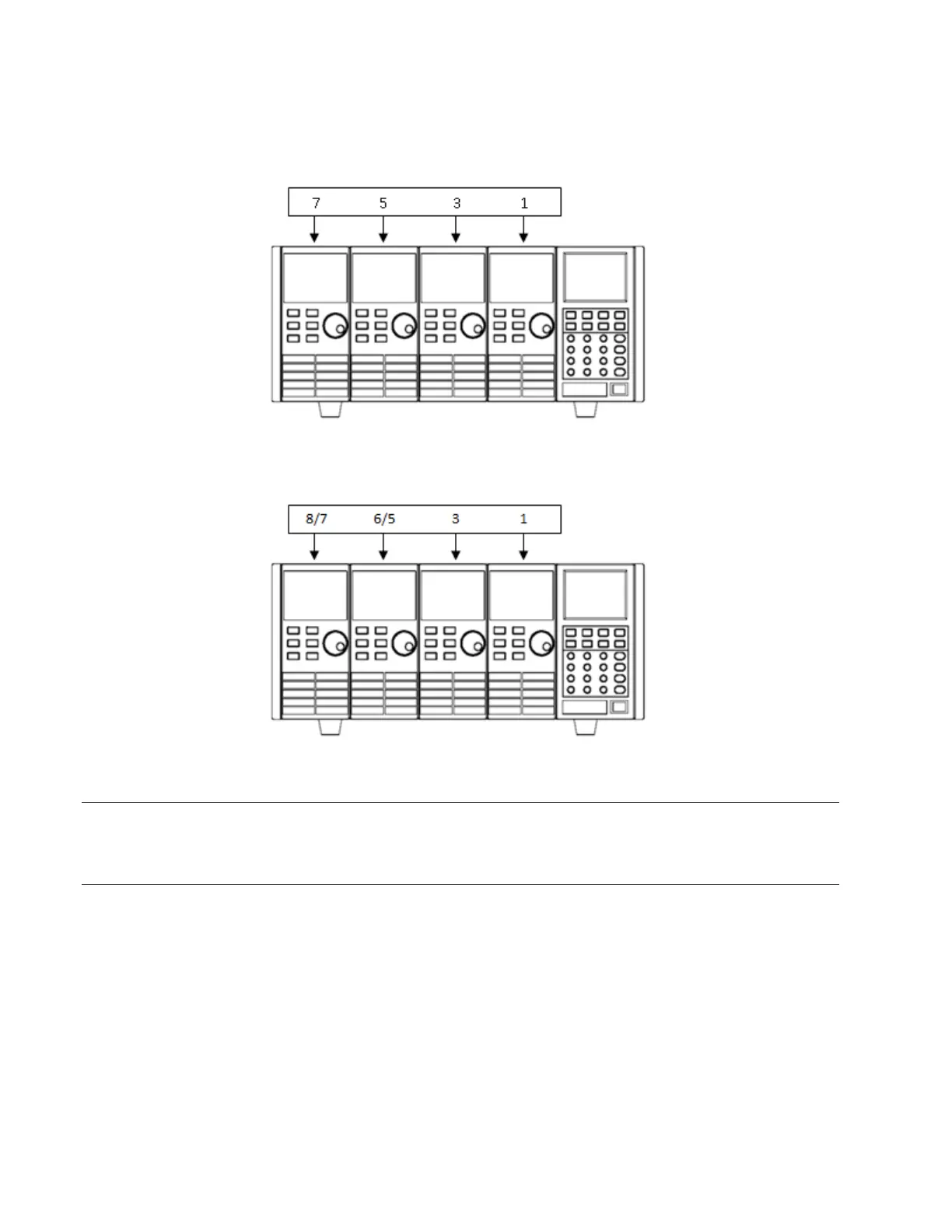

Figure 5 - Channel Number Order When Installing Four Single-Channel Modules
Figure 6 – Channel Number Order When Installing Two Single-Channel Modules and Two Dual-Channel Modules
Note : Mainframe extension module channels are numbered 11-18.
Location
The operating temperature of the MDL Series DC Electronic Load is 0 to 40 ℃. A fan cools the
electronic load by drawing air through both the top and front, and then exhausting it out the back.
Therefore, the electronic load must be installed in a location that allows sufficient space on the
front and back of the unit for adequate air circulation. Minimum clearances for bench operation
are 2 inches from the top and 3 inches from the front and back. If there are radiator fans in your
