23

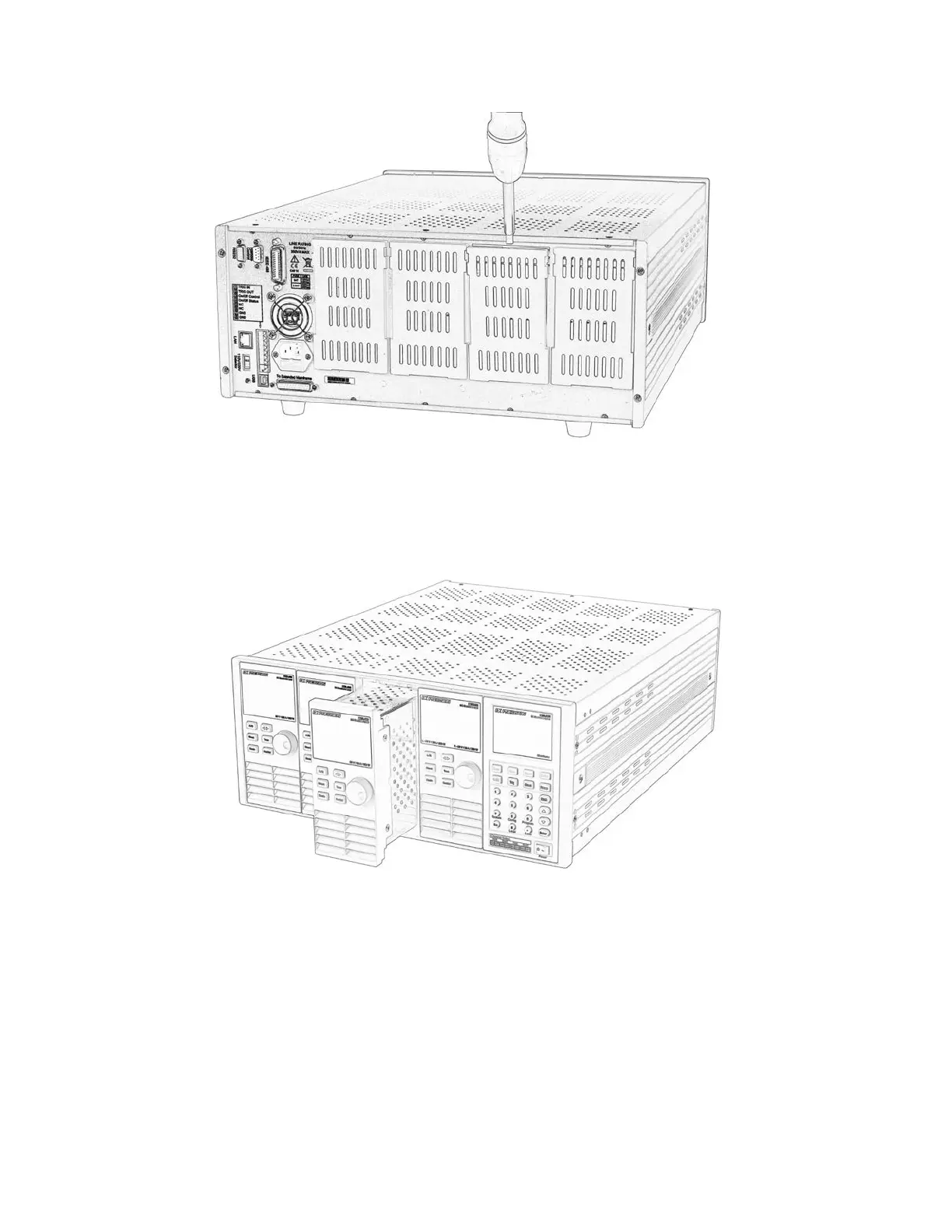

Figure 3b - Module Installation
4. Insert and slide the selected modules into the slot.
Figure 3c - Module Installation
5. Insert and tighten module screws on rear panel.
