3.3.3 POWER IN CONNECTIONS
The Freedom II switch is supplied with a single power adapter but offers the facility to use a second input in order to provide opera-
tional redundancy. The Freedom II unit can operate perfectly well from a single power adapter operating alone. When two adapters
are connected, the unit will spread its load between them; should one power input fail, 100% of the load will be transferred to the
other power adapter without a break in operation. Remote checking of the power inputs is possible at any time via the browser inter-
face.
There is no on/off switch on the Freedom II unit, so operation begins as soon as power is applied at either port.
3.3.3.1 TO CONNECT A POWER ADAPTER
1. Attach the output connector of the supplied power adapter to either of the two power input sockets on the left side of the rear
panel. See Figure 3-5.

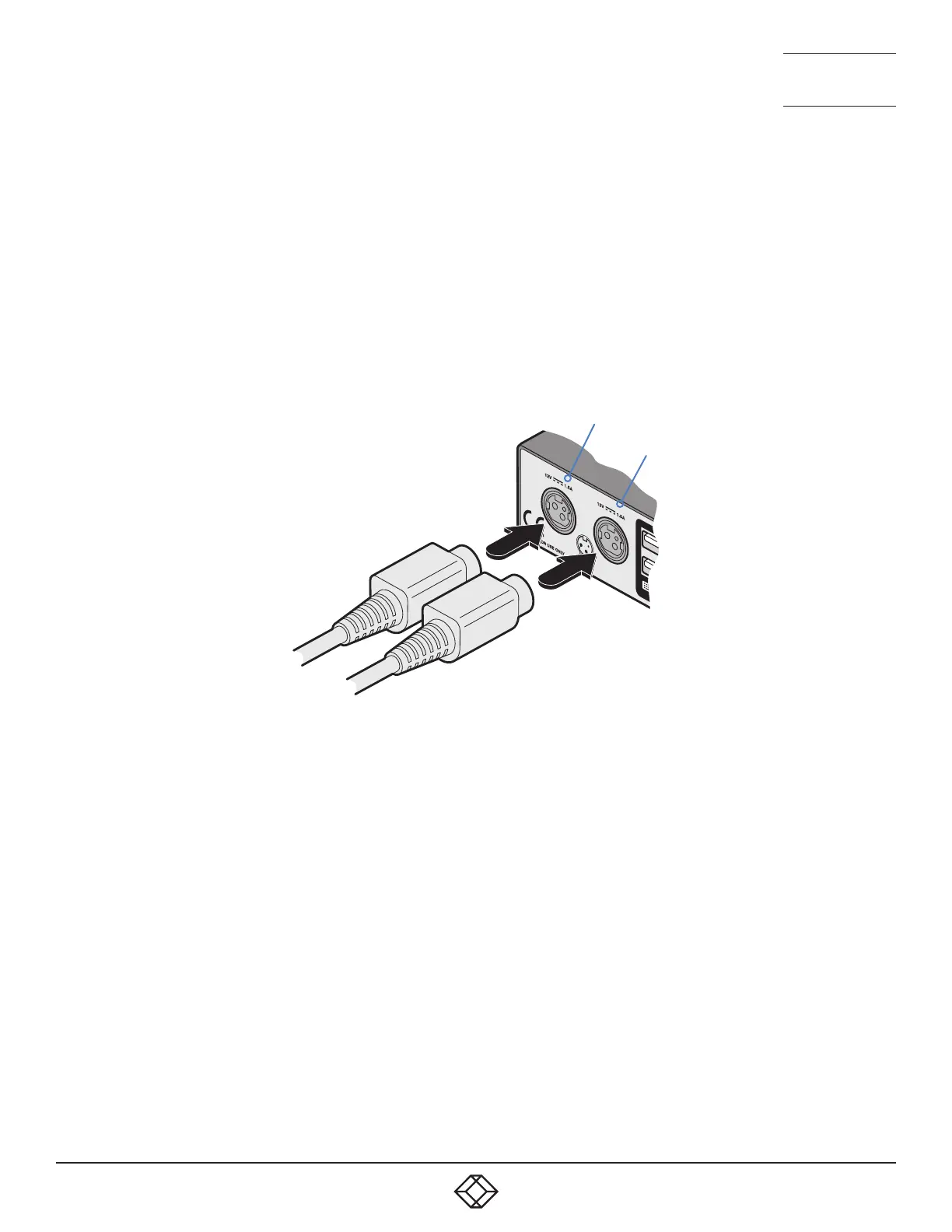

Figure 3-5. Attaching the power adapter lead(s) to the power input socket(s).
î Note: The outer sleeve of each power connector will retract slightly as it locks into place.
Input 1
Input 2
