CHAPTER 4: CONFIGURATION

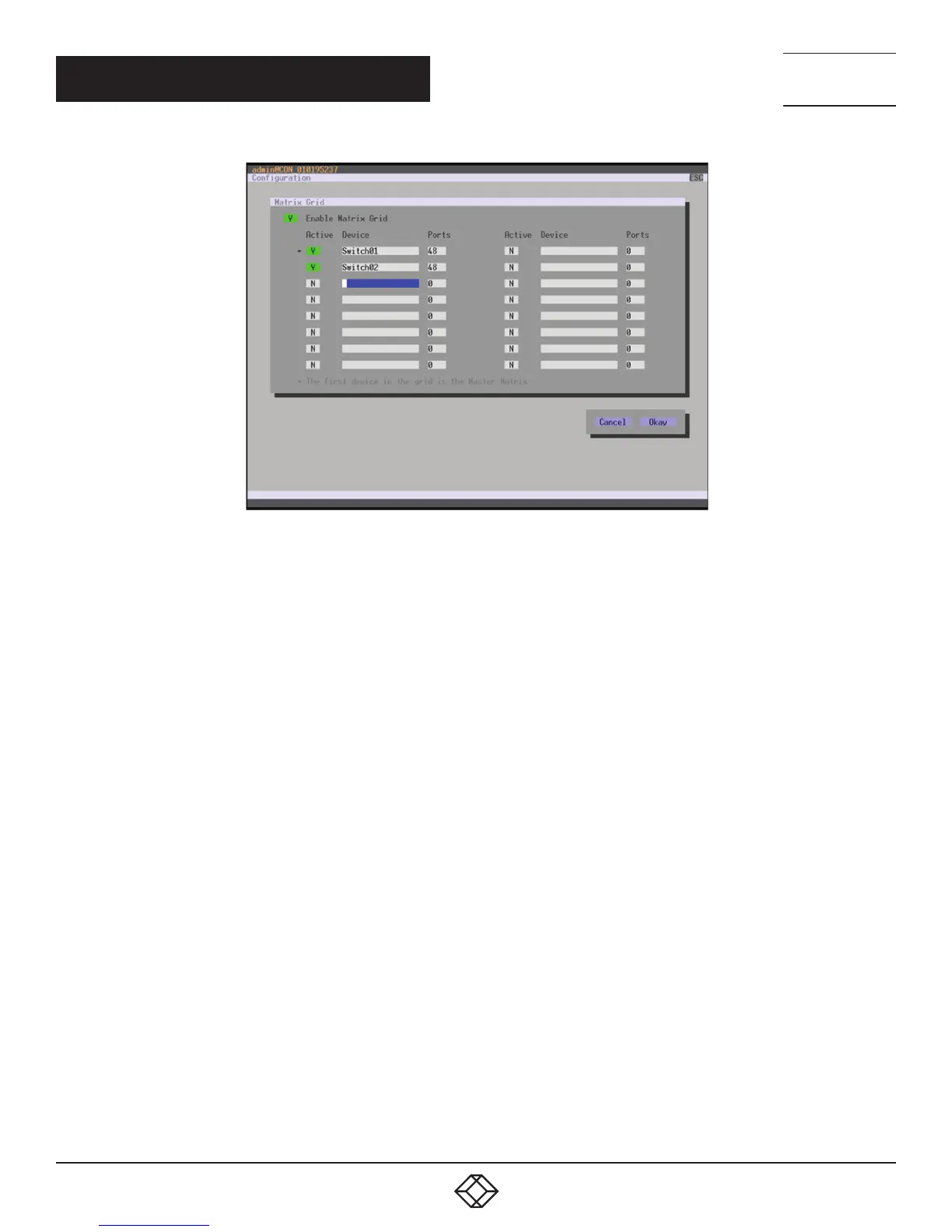

FIGURE 4-64. CONFIGURATION—MATRIX GRID
4. Activate the Enable Matrix Grid function.
5. Write all device names of the Grid matrices into the Matrix Grid list, starting in the left column. Based on the listings, a Grid master
will be automatically determined for the Matrix-Grid. The more on the top a matrix is listed in the matrix Grid list, the more likely
the matrix is considered in the automatic master selection, provided that certain criteria like system availability are fulfilled.
6. Activate the single matrices in the Matrix Grid list by enabling the Y (YES) function.
7. Enter the number of chassis ports for each matrix (8, 16, 32, 48, 64, 80, 160 or 288).
8. Restart all matrices, beginning with the master matrix.
The Matrix Grid can be used now and offers the possibility for a cross-matrix switching of CON Devices to CPU Devices.
