CHAPTER 4: CONFIGURATION
OSD
To configure a Matrix Grid, proceed as follows. The following configuration steps have to be repeated for each matrix separately:
Select Configuration > System in the main menu.

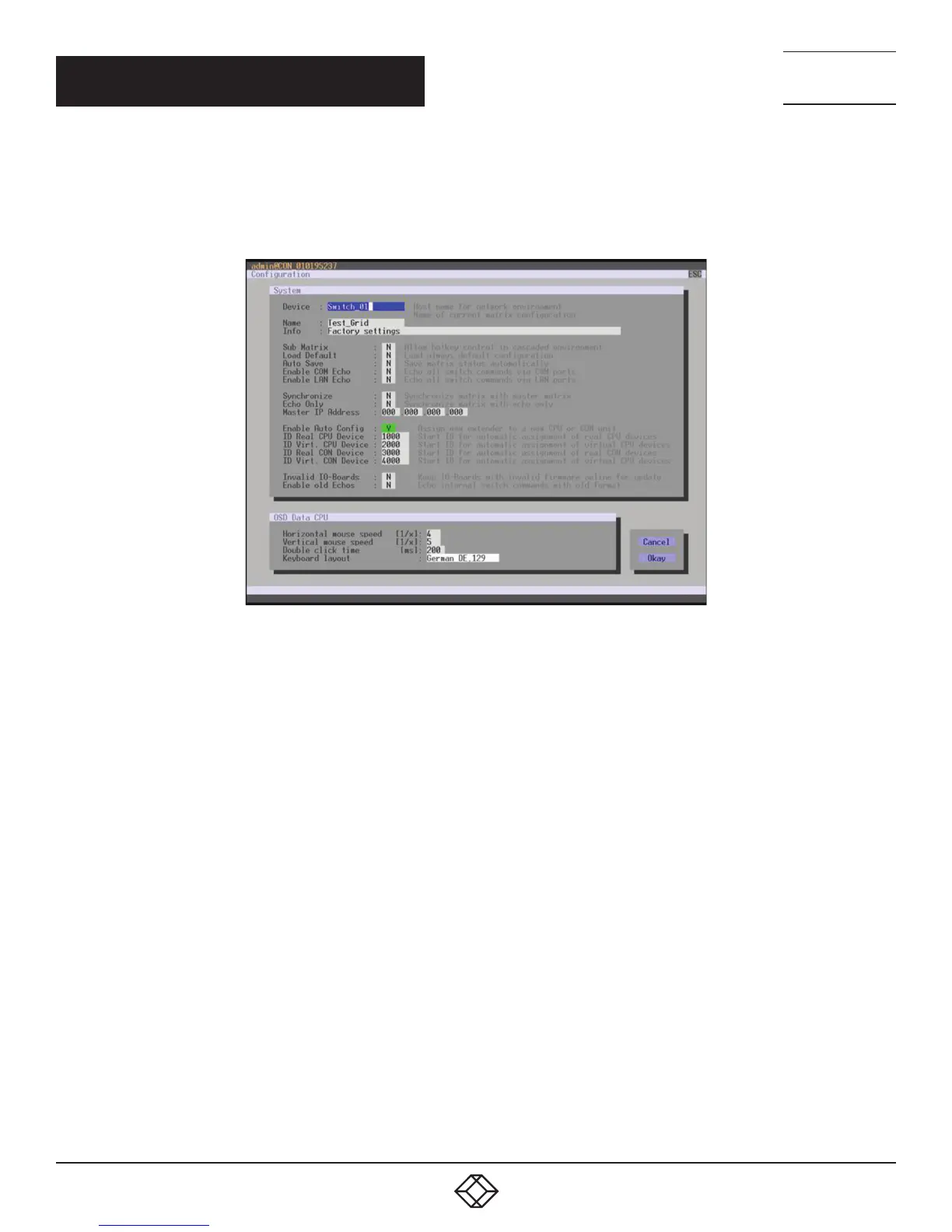

FIGURE 4-63. CONFIGURATION—SYSTEM
1. Enter a unique name for each matrix into the Device field. Each name only may exist once within the Matrix Grid.
2. Enter a unique Grid name into the Name field. The Grid name has to be same within all Grid matrices.
3. Select Configuration > Matrix Grid in the main menu.
To Next Page
