CHAPTER 5: OPERATION
Possbility 2:
Select Status > Matrix View in the task area or select Status > Grid Port View when using a Matrix Grid.

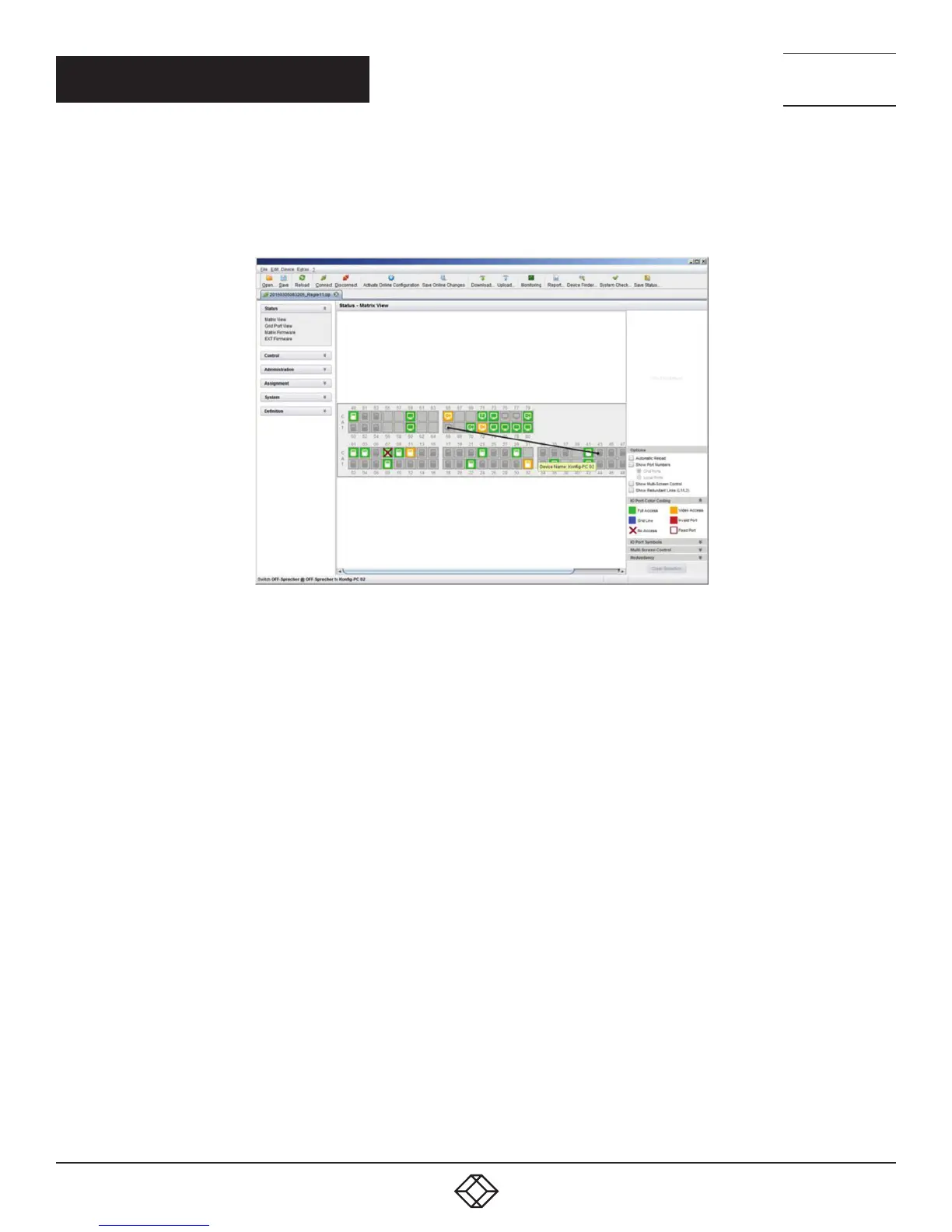

FIGURE 5-5. STATUS—MATRIX VIEW
To perform switching operations between CON and CPU Devices, proceed as follows:
1. Move the mouse cursor to the port that has to be switched.
2. Hold down the left mouse button and move the cursor to the port that has to be connected to the initial port. The current cursor
movement will be displayed by a black auxiliary line.
3. Release the left mouse button. A popup to select the available switching type (Full Access, Video Access or Private Mode) will be
opened.
4. Select the desired switching type. The switching operation will be immediately executed. At the same time all extender units that
are assigned to the involved devices will be switched.
NOTE: If a port is shown with a red cross on Matrix View, the console does not have access rights to the CPU connected to that
port.
To disconnect an existing connection between CON and CPU Devices, proceed as follows:
1. Click on the port that is to be disconnected by using the right mouse button.
2. Select the Disconnect function in the popup that appears. The connected ports will be immediately disconnected. At the same
time, all further connections of the extenders assigned to the involved devices will be disconnected.
