CHAPTER 2: OVERVIEW
PORTS I/O BOARD
CATx SFP Fiber SFP Coax

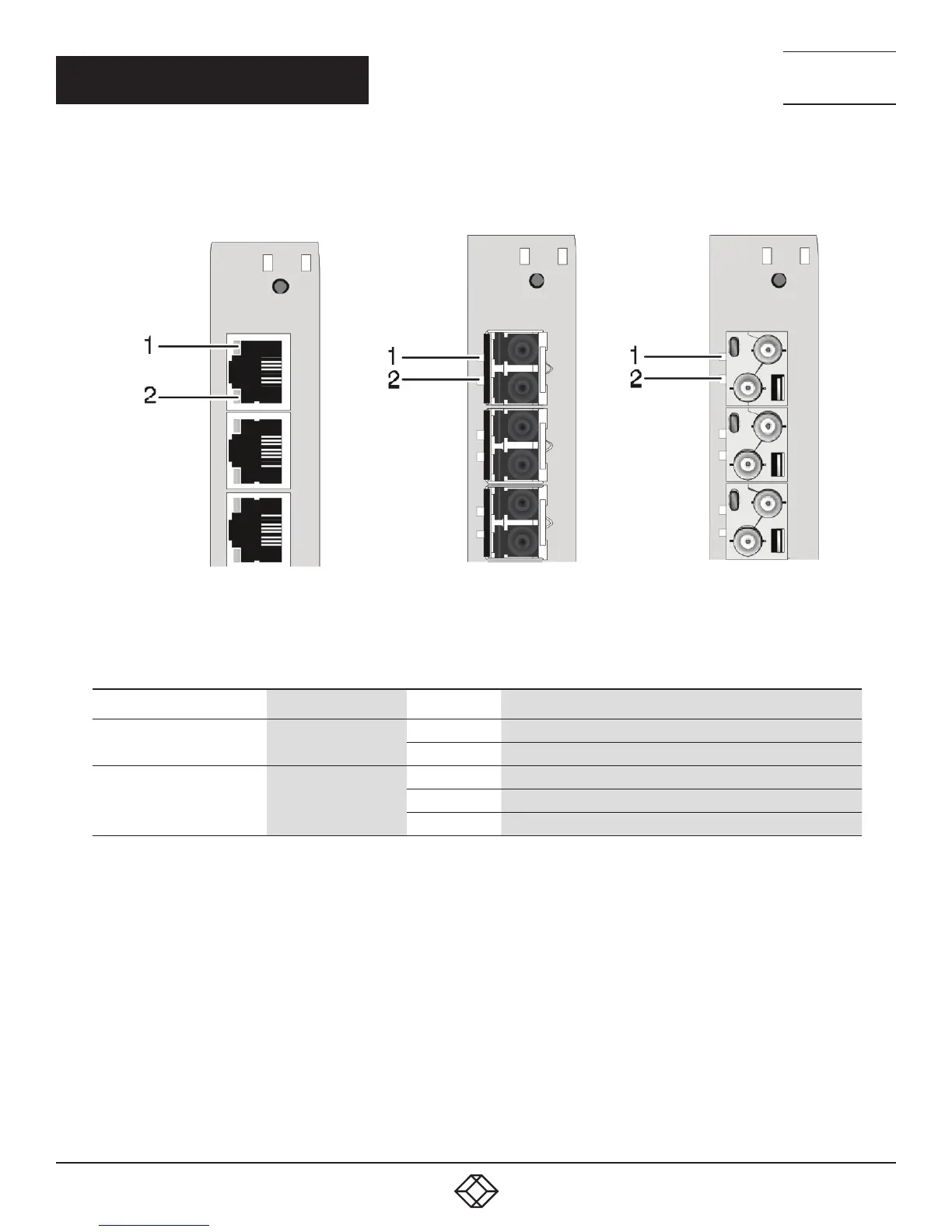

FIGURE 2-9. STATUS LEDS ON THE PORTS OF THE I/O BOARDS
TABLE 2-12. STATUS LEDS ON THE PORTS OF THE I/O BOARDS
NUMBER IN FIGURE 2-9 LED STATUS DESCRIPTION
1 Link Status (orange)
Off Port not activated
Flashing Port activated, no connection via interconnect cable
2 Link Status (green)
Off Port not activated
Flashing Port activated, no connection via interconnect cable
On Connection via interconnect cable OK, data traffic active
