12.1 Head Compartment
The head compartment is equipped with a light,
fresh water shower and could be equipped with
a portable marine toilet or an optional porcelain
toilet with a holding tank. A compartment in the
step and a storage rack on the side of the head
compartment provide storage for equipment and
dunnage.
Natural lighting and fresh air is provided by an
opening port window on the side of the compart-
ment and the compartment door. Additional light-
ing is provided by a 12 volt light in the cabin head-
liner controlled by a switch on the light xture.
Battery Switch and DC Breaker Panel
The battery switch panel is located on the rear
bulkhead. The battery switches for the engine and
house batteries, heavy duty main circuit breakers
and accessory breakers are located in this panel.
Refer to the Electrical Systems chapter for more
information on the operation of the components
in the battery switch panel.
Equipment Access panels
Access to the back of the helm is provided by
removing the battery switch panel and a remov-
able panel below the breaker panel in the rear
bulkhead.
Other removable panels in the head liner provide
access to the windshield wiper motor and other
components.

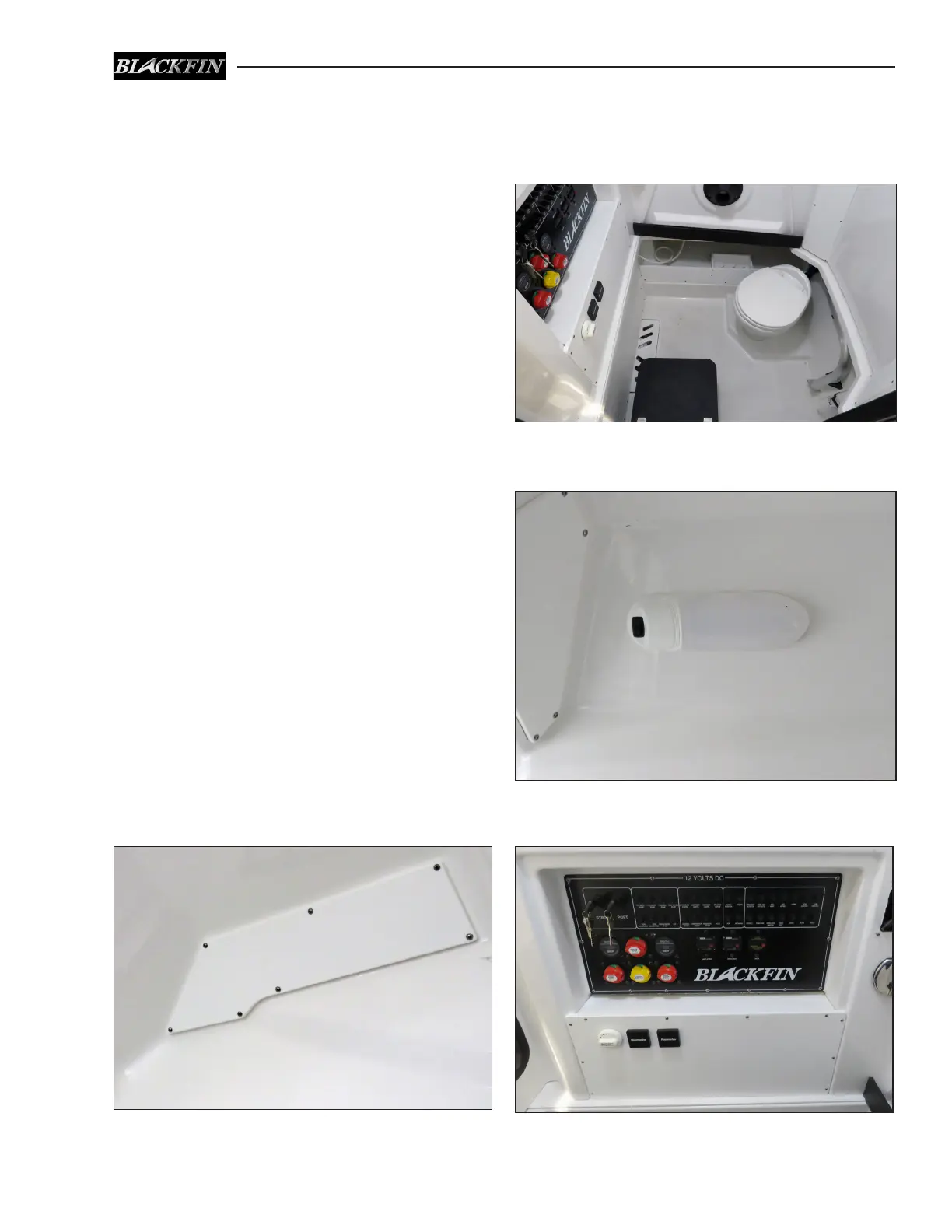

Chapter 12:
INTERIOR EQUIPMENT
Head Compartment
Battery Switch Panel & Access Panel
Head Compartment Light & Switch
Equipment Access Panel In Head Liner
