Ventilation System
10.2 Windshield Ventilation
Ventilation through the windshield is provided by
a power actuated opening panel at the top of the
windshield. The vent panel is opened and closed
by an electric actuator controlled by the W/S Vent
switch in the helm switch panel. To open the vent,
press hold the top of the switch and open the panel
to the desired position. To close the panel, press
and hold the bottom of the switch until the panel
is completely closed.
A limit switch in the actuator will automatically
stop the actuator when it reaches the full open or
closed position to prevent damage to the wind-
shield or the actuator. The switch automatically
returns to the o position when it is released.
10.3 Maintenance
• Periodically lubricate all hinges and latch
assemblies with a light oil.
• Keep the windshield slide tracks clean.
Periodically coating the tracks with silicone
spray will reduce friction and keep the
windshield sliding smoothly.
• Periodically clean and coat gasket materials
with silicone to help keep them pliable.

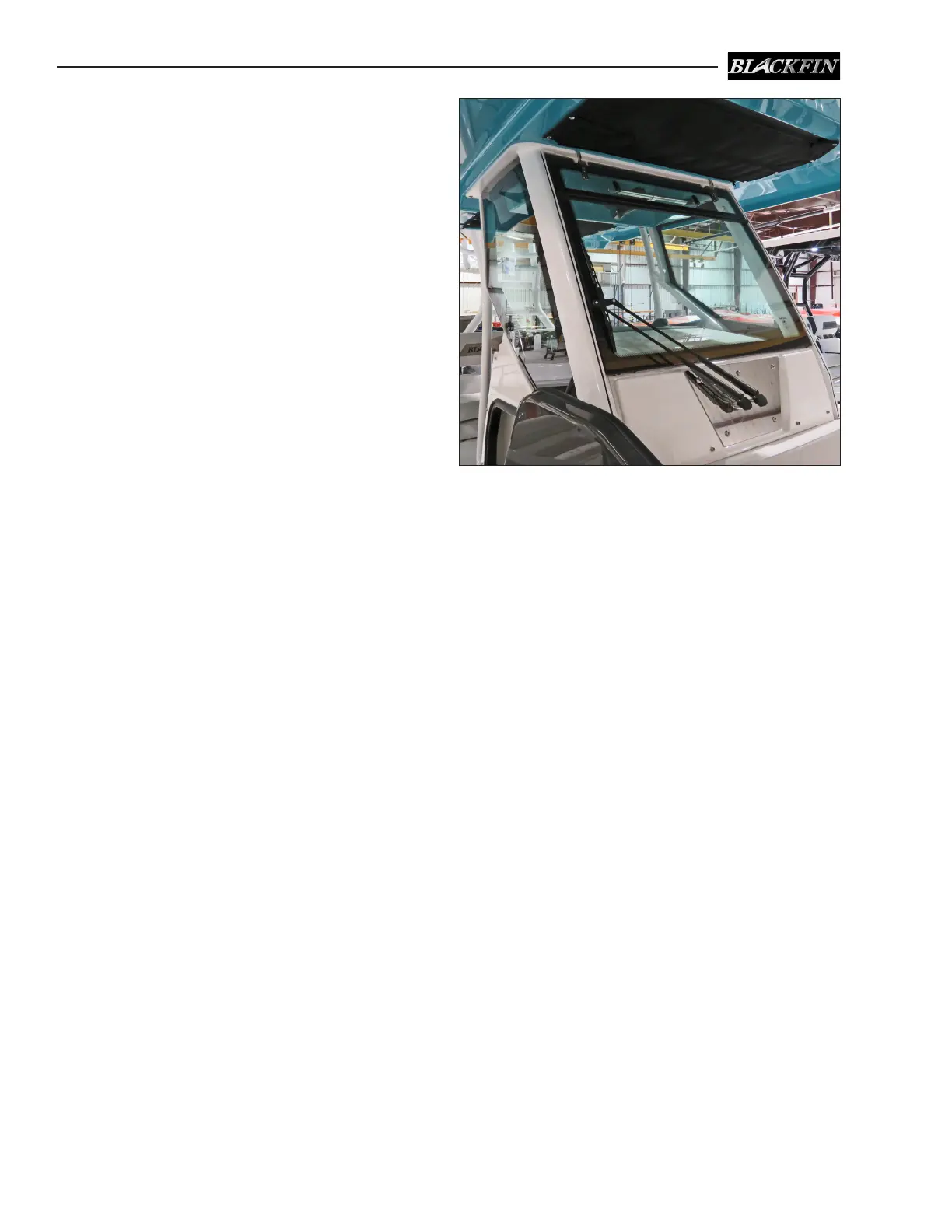

Windshield & Power Actuated Windshield Vent
