Electrical System
Heavy Duty Main Circuit Breakers
DC Power is distributed to the accessory breakers,
windlass and other main circuits through heavy duty
circuit breakers located in the battery switch panel
near the battery switches. These main circuits are
deactivated when the House battery switch is o.
If a heavy duty circuit breaker is tripped by an over-
load, a red or yellow lever will be exposed near the
center of the breaker. Reset the breaker by rotating
the lever until it locks in the horizontal position. The
circuit breaker can be tested by pressing the red
test button.
Notice:
If a main circuit breaker trips, always make
sure the problem that caused the breaker to
trip is found and corrected before resetting
the breaker.
6.8 Engine Control
Systems Circuit Protection
Main Circuit Breakers
Power assist steering and engines with electronic
steering and control systems are equipped with
heavy duty circuit breakers or fuses for each
steering pump and the controls that protect those
components from an overload. Other heavy duty
circuit breakers or fuses protect the auxiliary
charging circuit for each engine.
Circuit protection will vary with each engine instal-
lation as controls and steering systems may be
dierent. Refer to the engine and steering system
owner’s manuals for information on circuit protec-
tion and amperage requirements for the engines
and control systems on your boat.

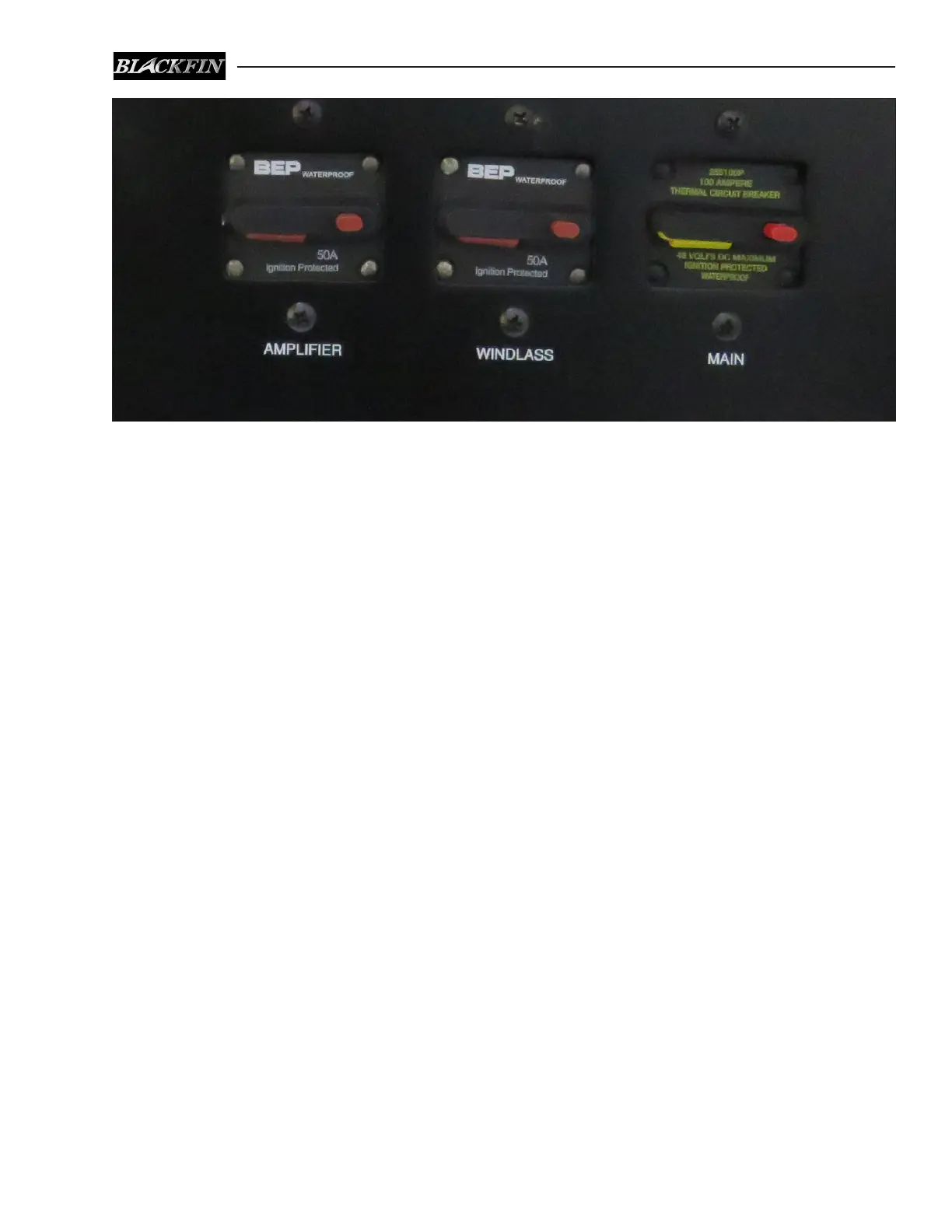

Heavy Duty Circuit Breakers
