Blackmagicdesign Blackmagic URSA Mini - Front Panel; Rear Panel; Top Panel; Bottom Panel

Blackmagic URSA Overview20

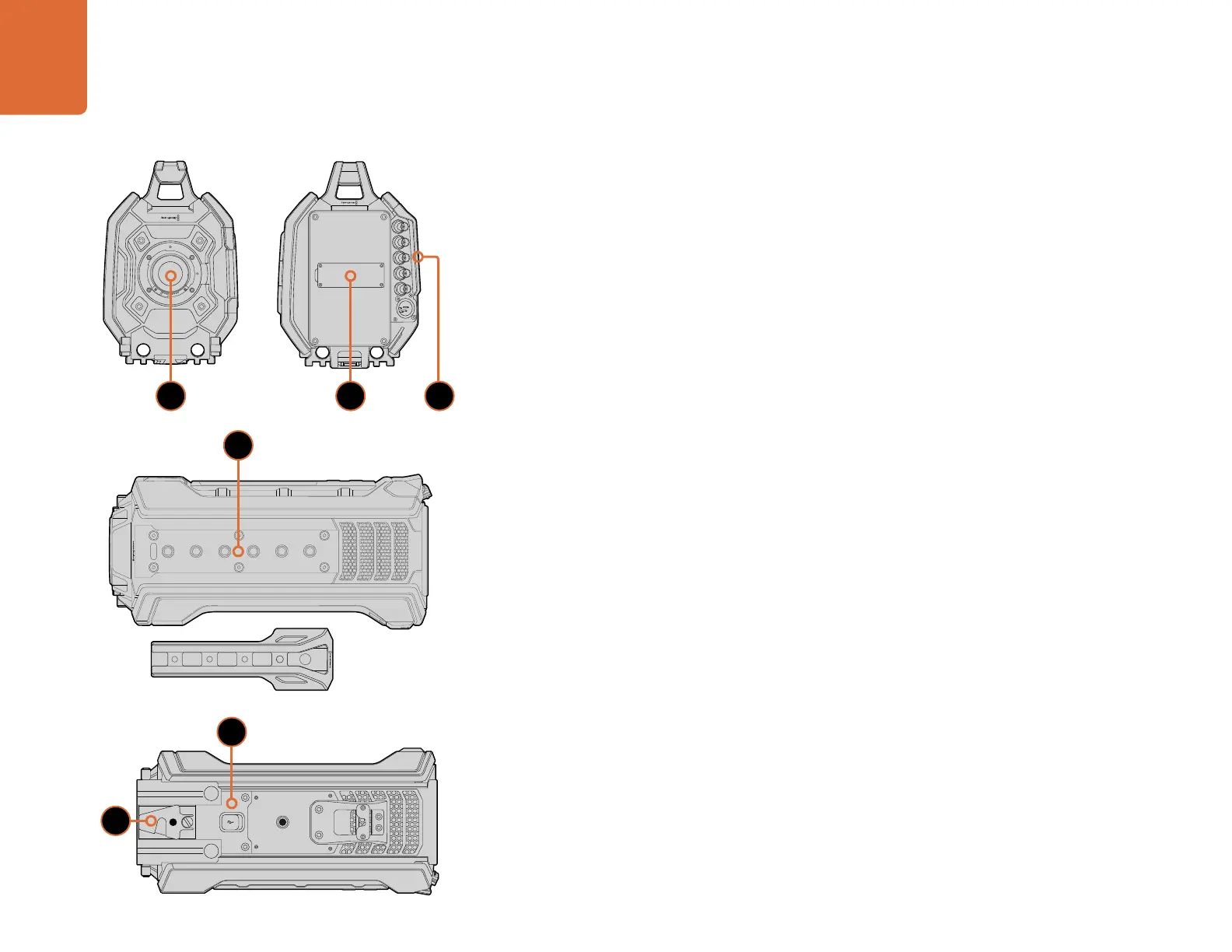

Front Panel
1. LENS MOUNT
Lens mount for attaching lenses. EF mount shown in illustration.
Rear Panel
2. BATTERY PLATE MOUNT
Mounting points and connector for attaching a third party V-mount or gold mount plate. Page 52.
3. REAR PANEL CONNECTORS
Rear panel connectors such as SDI output, SDI input, reference input, timecode input, timecode output
and 12V power input. Refer to the 'Blackmagic URSA connectors' section for more information.
Top Panel
4. 3/8" MOUNTING POINTS and TOP HANDLE
Mounting points for attaching top handle and accessories.
Bottom Panel
5. USB 2.0
USB 2.0 Mini-B port for updating internal software. Pages 22 and 64.
6. 15mm LIGHTWEIGHT ROD and VCT-14 BASE PLATE SUPPORT
15mm LWS standard mounts for attaching rods, and mounting points for a VCT-14 quick release plate.
