Blackmagicdesign Blackmagic URSA Mini - Camera Video Output; HD Monitoring Output; 12 G-SDI Output; Connecting to Video Switchers

Camera Video Output46
0
-6
-12
-18
-24
-30
-36
-42
-48
REF IN
SDI IN
SDI OUT
TIMECODE IN
TIMECODE OUT
CH1
SOLO
L
R
CH1
MUTE
CH2
SOLO
CH2
MUTE
IRIS
FOCUS
PEAK
DISP
MENU
SLATE
AUDIO IN
1
2
1
2
V
HD Monitoring Output
Blackmagic URSA and URSA Mini's down converted 3G-SDI out connector always outputs 1080 HD
video so you can easily connect to routers, monitors, SDI capture devices, broadcast switchers and
other SDI devices.
12G-SDI Output
The 12G-SDI out connector on the rear panel supports HD and 4K video including High P formats
such as 2160p50, 59.94 and 60 on a single SDI cable. You can use the 12G-SDI output to connect
to any SDI monitor as well as 4K switchers such as ATEM Production Studio 4K. This output can be
switched between HD and Ultra HD by selecting HD or 4K from 'display settings/SDI mode' on the
touchscreen.
Connecting to Video Switchers
The SDI outputs allow you to use your camera for live television production. You can connect the
rear panel SDI output directly to production switchers for live production work, or to ATEM Camera
Converters to convert your signal to optical so you can send it hundreds of meters to a broadcast
truck on location.
When connected to a switcher, you can easily view the switcher's program output on your Blackmagic
URSA. To do this, first connect the switcher to your camera's rear 12G-SDI input. Now press the
'program' button marked PGM on your Blackmagic URSA's fold out monitor. To switch back to the
camera image, simply press the PGM button again. This feature will also be available in URSA Mini
in a future software update.

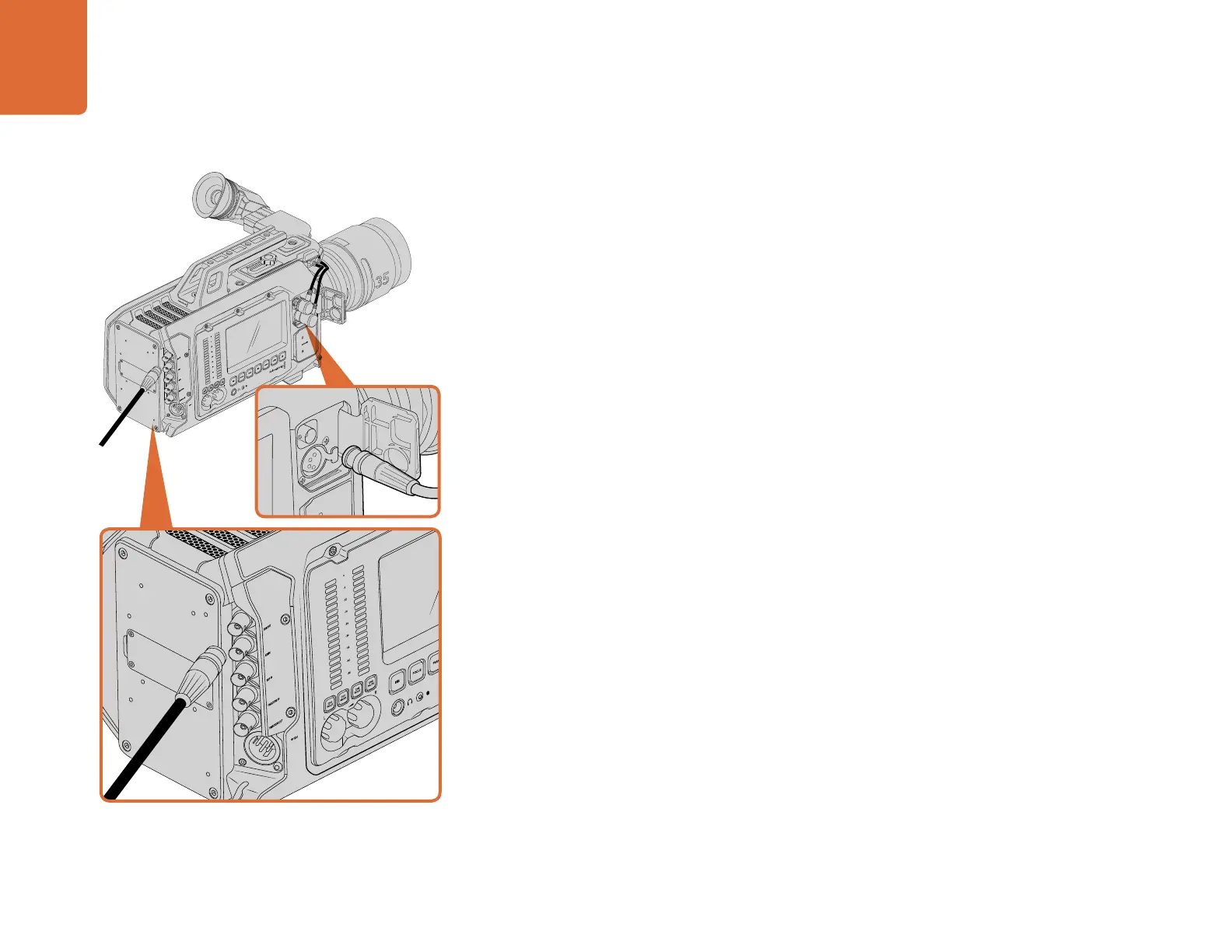

You can connect the 12G-SDI output to any 1080 HD or Ultra
HD live production switcher or monitor. The HD monitoring
output can be plugged into an external viewfinder, such as
the Blackmagic URSA Viewfinder, or plugged into an external
monitor when mounted to production equipment. For
example a jib arm or crane.
IRIS
FOCUS
PEAK
DISP
AUDIO IN
MENU
SLATE
CH1
SOLO
CH1
MUTE
CH2
SOLO
CH1
MUTE
SDI OUT
SDI IN
REF IN
TIMECODE IN
TIMECODE OUT
L
R
0
-6
-12
-18
-24
-30
-36
-42
-48
Camera Video Output
0
-6
-12
-18
-24
-30
-36
-42
-48
REF IN
SDI IN
SDI OUT
TIMECODE IN
TIMECODE OUT
CH1
SOLO
L
R
CH1
MUTE
CH2
SOLO
CH2
MUTE
IRIS
FOCUS
PEAK
DISP
MENU
SLATE
AUDIO IN
1
2
1
2
V
