Switching to 16mm
The optional Cintel Scanner 16mm gate kit contains all the parts you’ll require and making the
changes to your scanner’s setup are minimal.

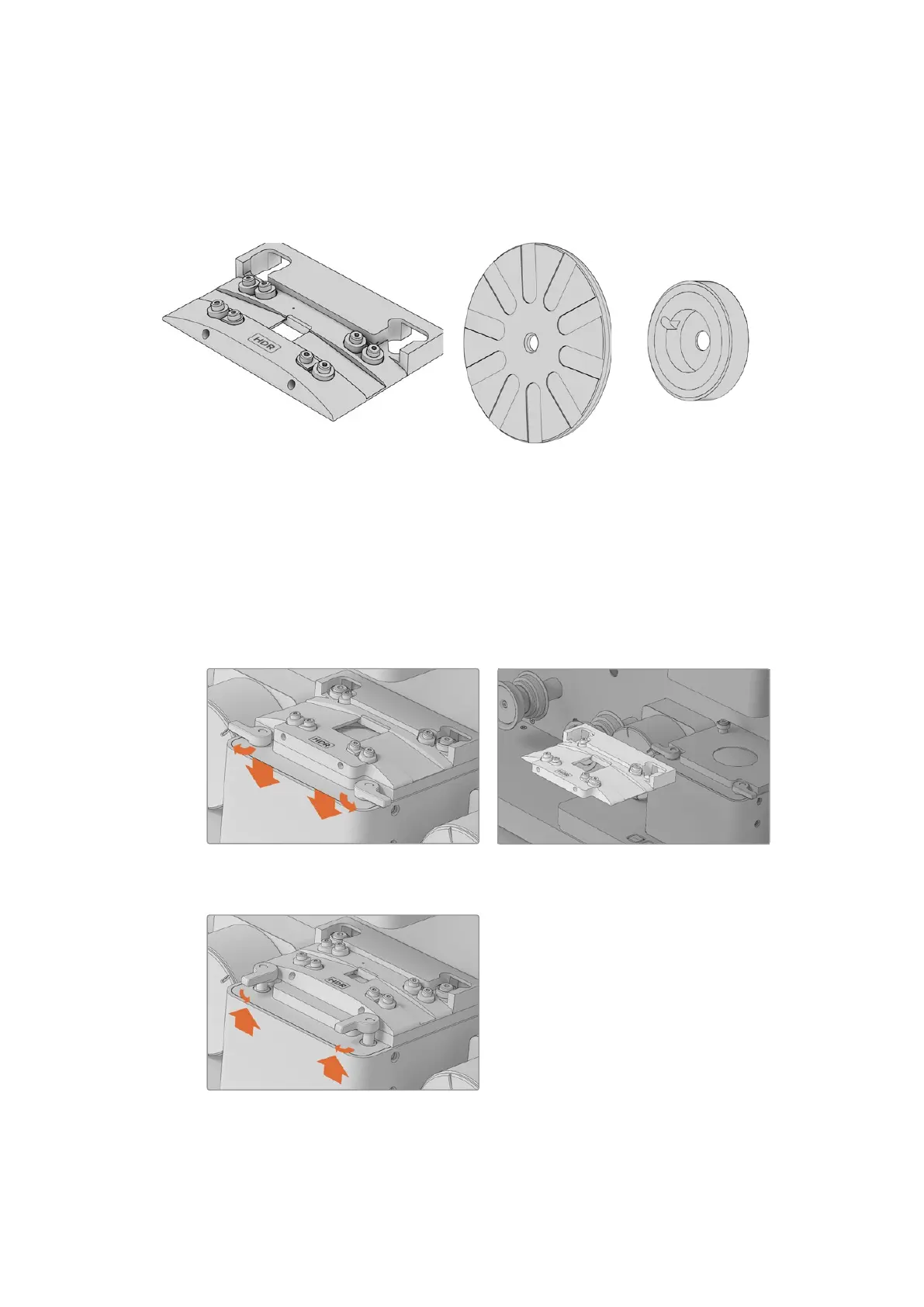

16mm skid plate Inner spacer Outer spacer
The 16mm kit contains a 16mm skid plate, two inner spacers and two outer spacers.
Switching to 16mm scanning is easy:
1 Swapping the Skid Plate
Swap the 35mm skid plate with the 16mm skid plate by pushing the retention levers
down on the front of the 35mm plate and turning them outwards. Now remove the
35mm plate and replace it with the 16mm plate. When fitting a skid plate, make sure that
the retention levers are lifted all the way up before turning them inwards, or the plate
may not seat properly.
When removing the skid plate you
will need to push the retention levers
down and then turn them outward.
Removing the 35mm skid plate to
install the 16mm skid plate.
To secure a skid plate lift the retention
levers all the way up and turn them inward.
21Using Your Scanner
