Unpacking and Mounting
Welcome to your new Cintel scanner!
The first thing to do before you can get started using your scanner is to unpack and securely
mount your scanner to a stable surface, or against a wall. Mounting holes are located on your
scanner’s base, under the feet, for added stability when mounting to a desk. Mounting holes are
also located on the back panel so you can firmly mount your scanner to a dedicated wall mount.
After opening your scanner’s road case, you will see that spaces have been cut in the foam
padding to give you a sturdy grip on your scanner.
Please note that Cintel weighs over 130 pounds, or 60kg, and is clearly too heavy to be
unpacked by one person. Youwill need to make sure that all lifting is performed by 2people
using correct lifting techniques, such as bending your knees, keeping a straight back and lifting
with careful, controlled movements.
Once you have gently removed your scanner from its road case, place it upright on a flat,
stablesurface capable of supporting its weight.

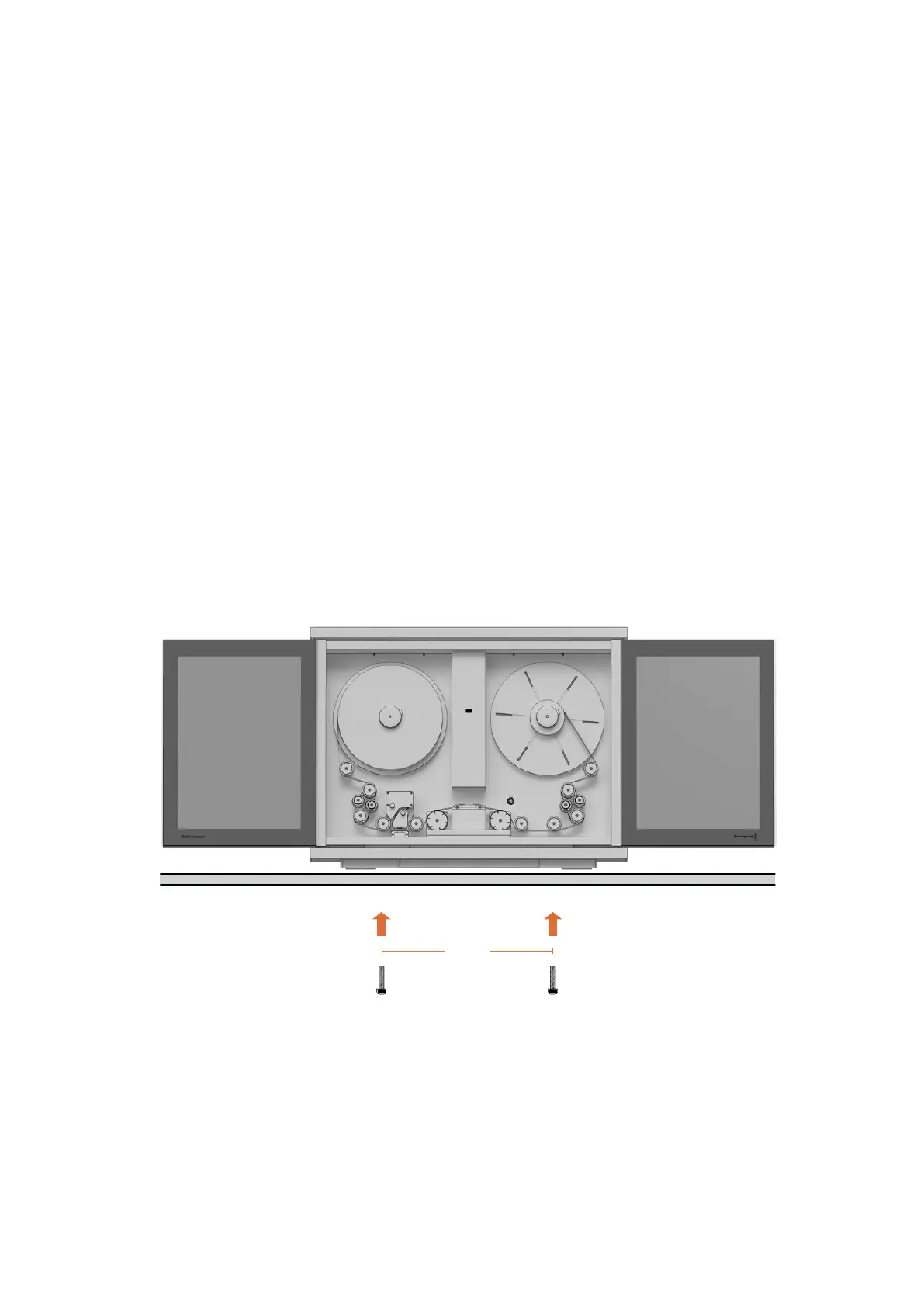

Desk Mounting
For added stability, you can secure your scanner to your work surface using the mounting holes
in your scanner’s feet. To do this, you’ll need to drill two holes through your desk or work
surface so you can insert two M6 safety bolts and screw them into the mounting holes under
your scanner’s feet. This will hold your scanner firmly to the surface and prevent it from moving
546mm
7Unpacking and Mounting
