You can also load 3D LUTs for adding looks, grades, and color profiles to your converted
output. The 3D LUT is a full 33 point hardware lookup table for greater accuracy with color
manipulation and can even be used to accurately color calibrate consumer televisions so they
can be used for critical color correction work. The 3D LUT also allows color space conversions
so different color spaces can be used with various displays. Your Mini Converter SDI to HDMI
6G comes with two default LUTs, including color to monochrome and Blackmagic camera
default color space to REC 709.
SDI to HDMI 6G
SDI to HDMI 6G
1
4
2
5
3
6
7
8

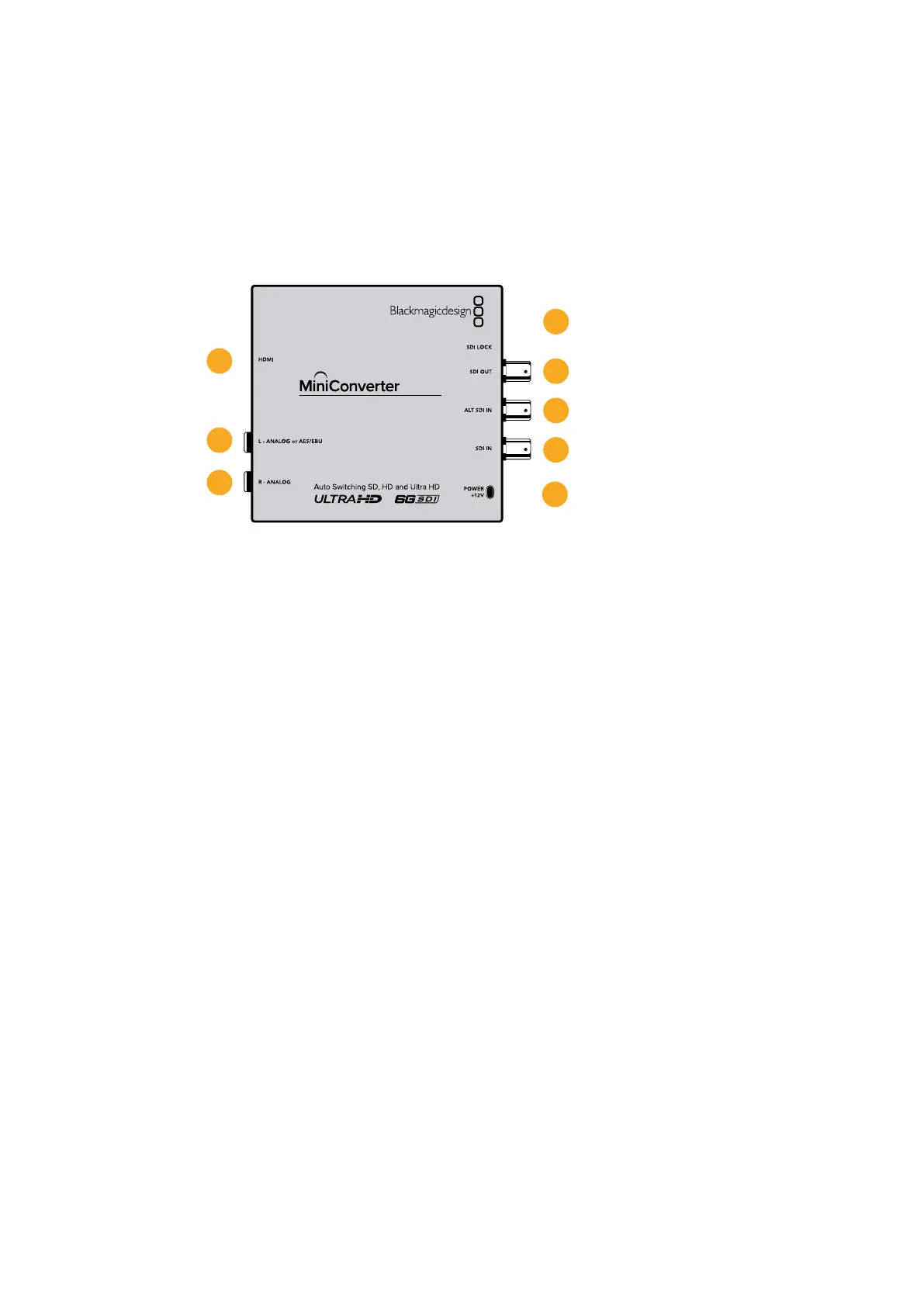

Connectors
1 HDMI
HDMI type A video output.
2 L - ANALOG or AES/EBU
Balanced left channel analog audio, or AES/EBU digital audio output 1/4" jack connector.
3 R - ANALOG
Balanced right channel analog audio output 1/4" jack connector.
4 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer.
TheMini Converter’s internal software is also updated using the USB port.
5 SDI OUT
SDI video output BNC connector
6 ALT SDI IN
Redundant SDI input is provided as an optional back up.
7 SDI IN
Primary SDI input.
8 POWER +12V
12 volt power supply input.
Switches
Mini Converter SDI to HDMI 6G’s switches provide the following settings:
Switch 8 - Analog Audio, AES/EBU Audio
Set switch 8 to OFF to select balanced analog audio, or to ON for digital AES/EBU audio output.
Switch 7 - LUT Off, LUT On
Set Switch 7 to OFF to disable the LUT, or to ON to enable the LUT.
