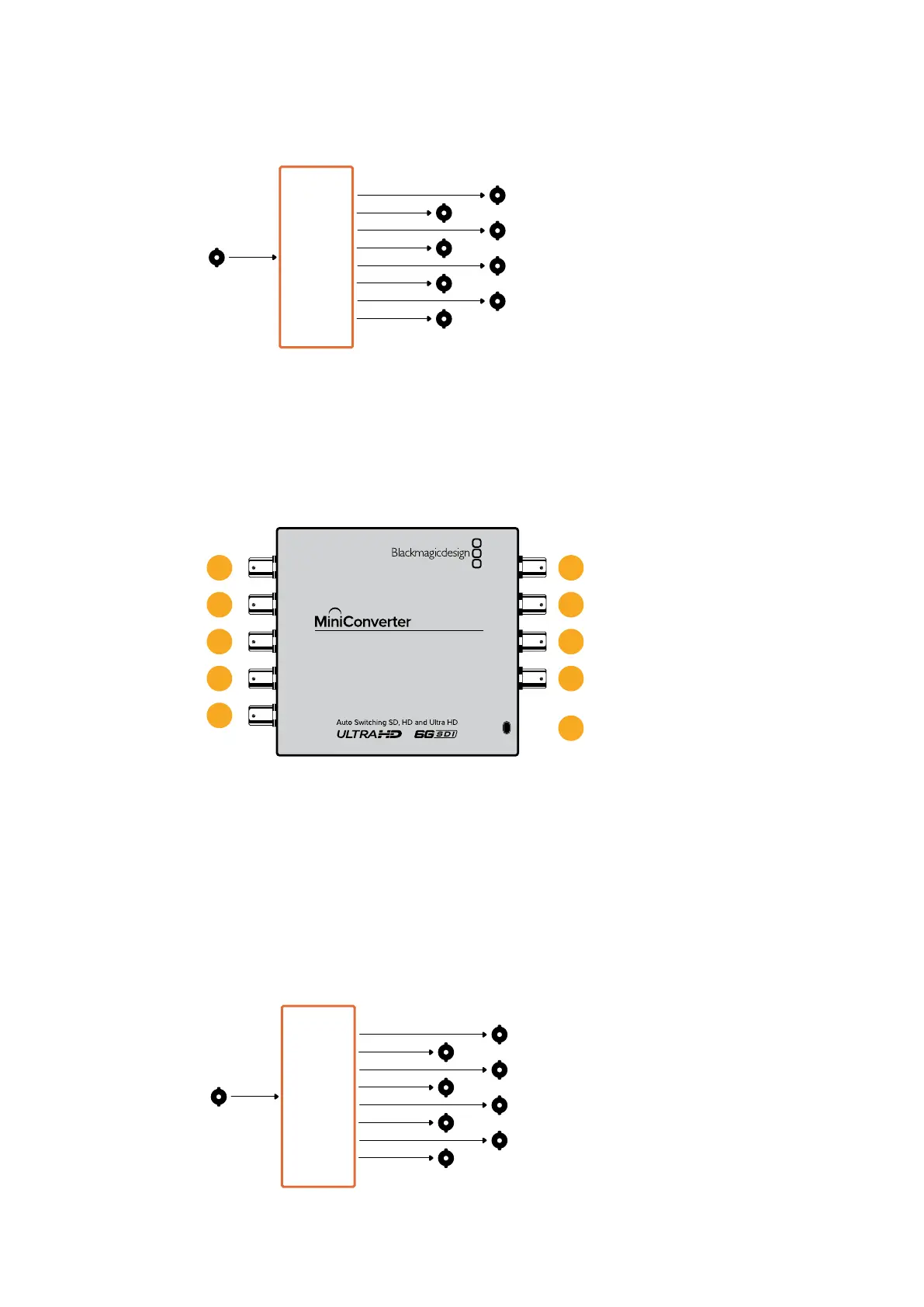

Mini Converter SDI Distribution Block Diagram
SDI In
8 Output
Re-clocking
Distribution
Amplifier
SDI Out
SDI Out
SDI Out
SDI Out
SDI Out
SDI Out
SDI Out
SDI Out
Mini Converter SDI Distribution 4K
Your Mini Converter SDI Distribution 4K outputs your SDI signal to eight SDI destinations
simultaneously, such as decks, monitor walls and switchers. Whenever the video input changes
between SD/HD/3G/6G-SDI video formats, Mini Converter SDI Distribution 4K automatically
switches the 8 re-clocked outputs to match, with support for ASI, ancillary data and embedded
audio formats.
POWER
+12V
SDI IN
SDI OUT
SDI OUT
SDI OUT
SDI OUT
SDI OUT
SDI OUT
SDI OUT
SDI OUT
SDI Distribution 4K
1 6
3 8
2 7
5
4 9
10
Connectors
1-8 SDI OUT
SDI video outputs on BNC connectors.
9 SDI IN
SDI input.
10 POWER +12V
12 volt power supply input.
Mini Converter SDI Distribution 4K Block Diagram
SDI In
8 Output
Re-clocking
Distribution
Amplifier
SDI Out
SDI Out
SDI Out
SDI Out
SDI Out
SDI Out
SDI Out
SDI Out
