Blackmagicdesign Mini Converter Sync Generator User Manual

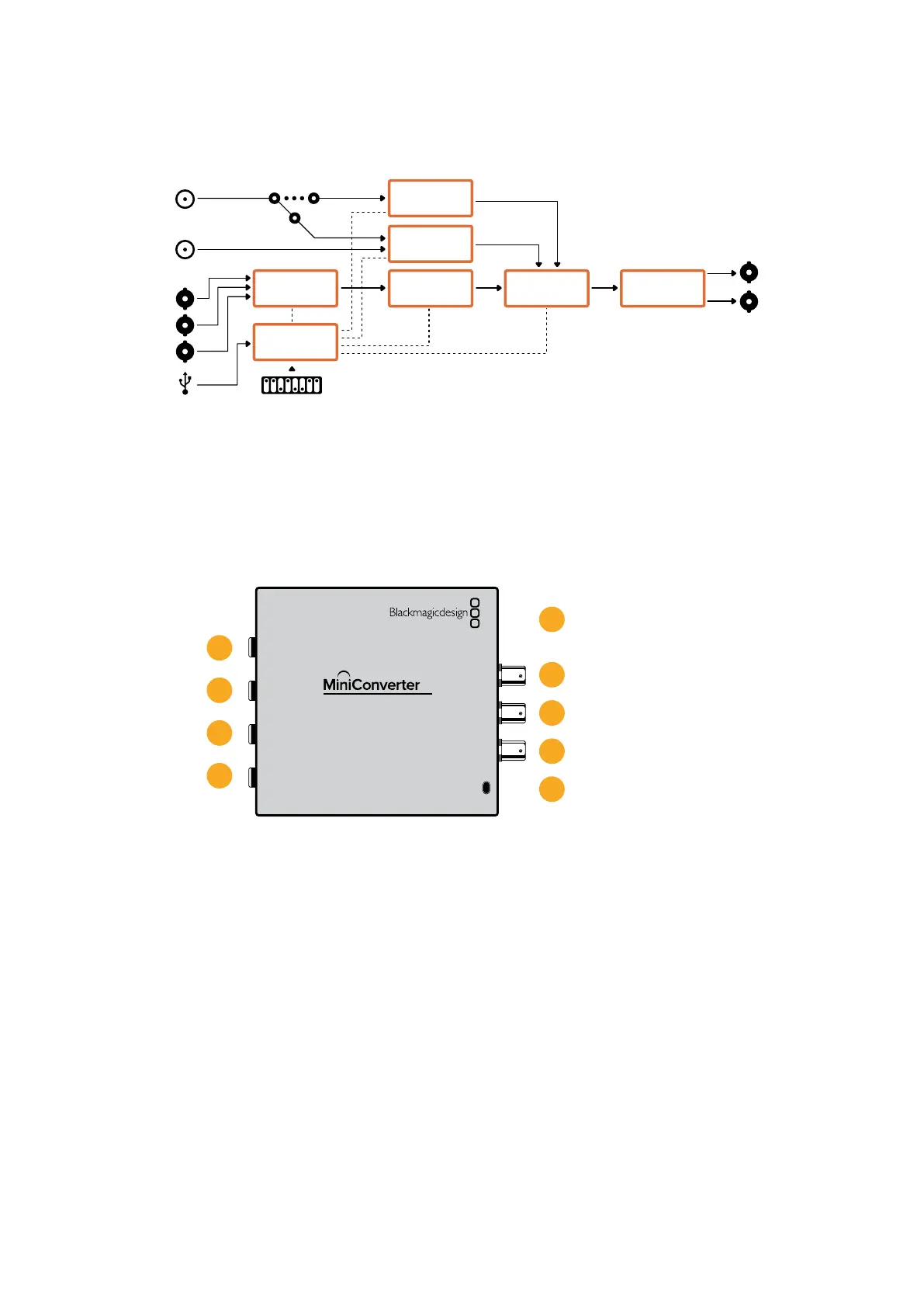

Mini Converter Analog to SDI Block Diagram
12 bit Analog
to Digital SD/HD
Video Converter
Component input can switch to
S-Video and Composite
Mini Switches
Customizable
Video Processor
Central
Processor and
Firmware
SDI Audio
Embedder
Automatic
SD/HD/1.5G-SDI
Cable Driver
USB
Y
R-Y
B-Y
SDI Out
SDI Out
Analog or AES/EBU
Audio Switch
AES/EBU
Sample Rate
Converter
Audio Analog to
Digital from
Balanced Input
Right Analog In
Left Analog In
or AES/EBU
Mini Converter SDI to Audio
Your Mini Converter SDI to Audio can de-embed 4 channels of audio from any SDI video
connection and output to 4 channels of analog audio or 8 channels of AES/EBU digital.
Outputto audio equipment such as audio mixers, analog decks and reference monitors.
Additional SDIaudio channels can be de-embedded by daisy chaining another Mini Converter
SDI to Audio to your converter’s SDI output.
3
SDI to Audio
CH 1 ANALOG or
CH 1&2 AES/EBU
CH 2 ANALOG or
CH 3&4 AES/EBU
CH 3 ANALOG or
CH 5&6 AES/EBU
CH 4 ANALOG or
CH 7&8 AES/EBU
SDI LOCK
SDI OUT
ALT SDI IN
SDI IN
POWER
+12V
1
6
5
4
2
7
8
9
Connectors
1 CH 1 ANALOG or CH 1 & 2 AES/EBU
Balanced analog audio channel 1, or AES/EBU digital audio channels 1 and 2 output
1/4"jack connector.
2 CH 2 ANALOG or CH 3 & 4 AES/EBU
Balanced analog audio channel 2, or AES/EBU digital audio channels 3 and 4 output
1/4" jack connector.
3 CH 3 ANALOG or CH 5 & 6 AES/EBU
Balanced analog audio channel 3, or AES/EBU digital audio channels 5 and 6 output
1/4" jack connector.
4 CH 4 ANALOG or CH 7 & 8 AES/EBU
Balanced analog audio channel 4, or AES/EBU digital audio channels 7 and 8 output
1/4" jack connector.
Blackmagic Mini Converters 62
