Blackmagicdesign Mini Converter Sync Generator User Manual

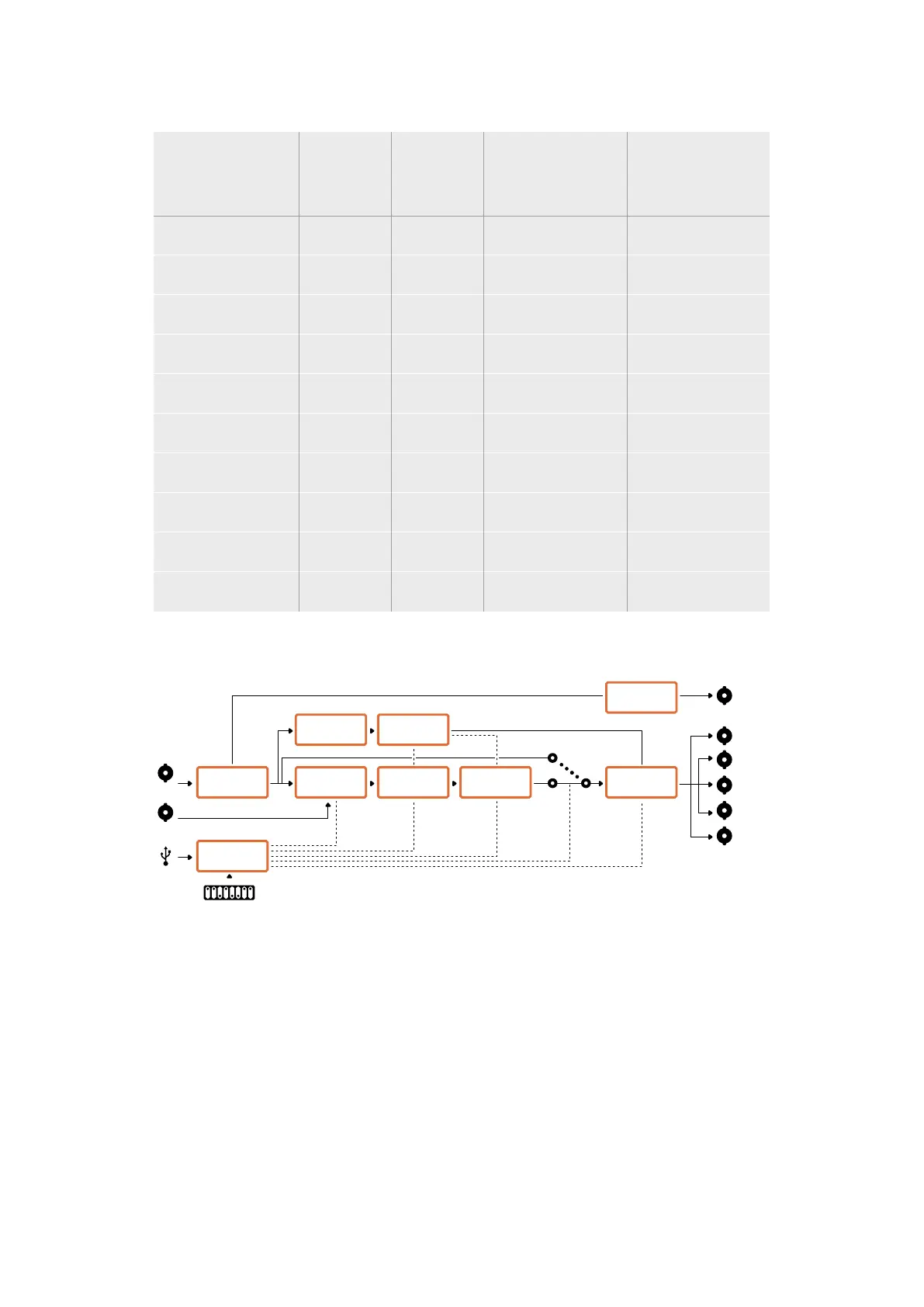

Input Video
NTSC
Switches
1 and 2 ON
PAL
Switch
1 ON
720p
Switches
1 and 3 ON
1080
Switches
1, 2 and 3 ON
1080p30 525i59.94 625i50 720p60 1080p30
1080i50 525i59.94 625i50 720p50 1080i50
1080i59.94 525i59.94 625i50 720p59.94 1080i59.94
1080i60 525i59.94 625i50 720p60 1080i60
1080p50 525i59.94 625i50 720p50 1080p50
1080p59.94 525i59.94 625i50 720p59.94 1080p59.94
1080p60 525i59.94 625i50 720p60 1080p60
2048x1556PsF23.98 525i59.94 625i50 2048x1556PsF23.98 2048x1556PsF23.98
2048x1556PsF24 525i59.94 625i50 2048x1556PsF24 2048x1556PsF24
2048x1556PsF25 525i59.94 625i50 2048x1556PsF25 2048x1556PsF25
Mini Converter UpDownCross Block Diagram
Use bypass if
you want to
use for SDI
distribution
Equalizer
Re-Clocker and
10 bit De-Serializer
Automatic
Ref In
Mini Switches
Frame Re-Sync
Central
Processor and
Firmware
Format Conversion
Up/Down/Cross
SDI Audio
De-Embedder
Audio
Delay
Standards
Converter
NTSC/PAL
USB
SDI In
SDI Out
SDI Out
SDI Out
SDI Out
SDI Loop
Out
SDI Out
Automatic
SD/HD/3G-SDI
Cable Driver
SDI Audio
Embedder and
SDI Cable Driver
Mini Converter UpDownCross HD
Mini Converter UpDownCross HD is a powerful standards converter that gives you the ability to
convert any SD or HD video format with up, down, or cross conversion via SDI and HDMI. This
converter supports all SD and HD formats up to 1080p60 plus NTSC and PAL with aspect ratio
options for up and down conversions. The HDMI input also accepts 1024 x 768, 800 x 600, and
640 x 480 computer output resolutions.
Blackmagic Mini Converters 91
