HDMI to SDI 4K
HDMI to SDI 4K
1
4
2
5
3
6
7

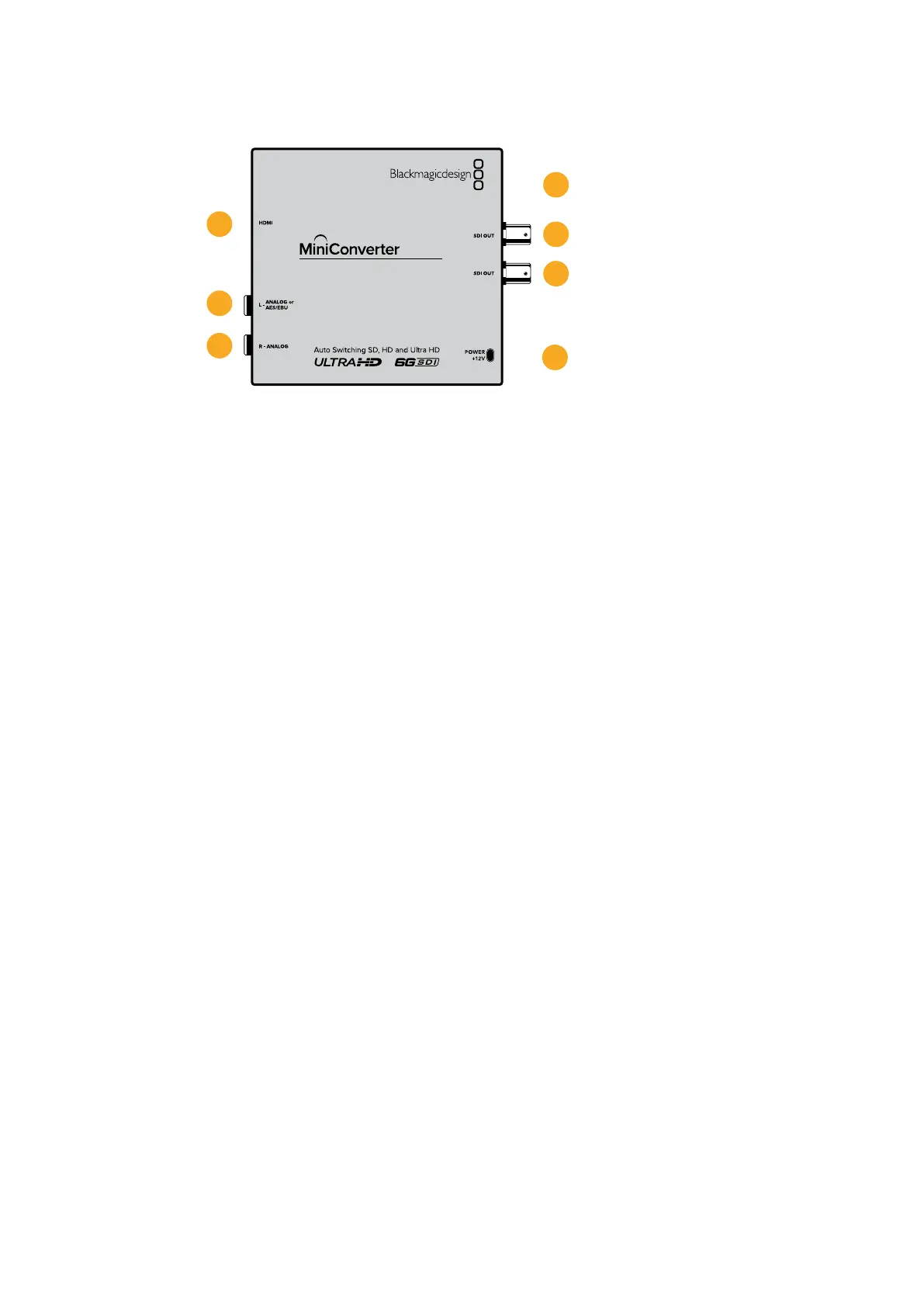

Connectors
1 HDMI
HDMI type A video input.
2 L - ANALOG or AES/EBU
Balanced left channel analog audio or AES/EBU digital audio input 1/4" jack connector.
3 R - ANALOG
Balanced right channel analog audio input 1/4" jack connector.
4 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer.
TheMini Converter’s internal software is also updated using the USB port.
5 SDI OUT
SDI video output BNC connector.
6 SDI OUT
Second SDI output.
7 POWER +12V
12 volt power supply input.
Switches
Mini Converter HDMI to SDI 4K’s switches provide the following settings:
Switch 8 - Analog Audio, AES/EBU Audio
Set switch 8 to OFF to select balanced analog audio, or to ON for digital AES/EBU audio input.
To use these inputs Switch 7 must also be set to ON.
Switch 7 - HDMI Audio - Input Audio
Set switch 7 to OFF to select embedded HDMI audio, or to ON for analog or AES/EBU audio.
Switches 2, 1 - Select Format Bit 1,0
When connecting an HDMI source that can output Ultra HD and HD, you can set your converter
to force the source output to one or the other. This can be helpful when you want to record or
display your computer’s desktop on SDI equipment in HD so it is larger and easy to view.
While it may appear like it’s an up or down conversion setting, what your converter is actually
doing is telling your source equipment to output Ultra HD or HD video so that your converter can
then output the source video’s native HD or Ultra HD resolution without up or downconversion.
Blackmagic Mini Converters 44
