L -
ANALOG or
AES/EBU
Y or
NTSC/PAL
B-Y or
S-VIDEO Y
R-Y or
S-VIDEO C
R - ANALOG
SDI to Analog
SDI LOCK
SDI OUT
ALT SDI IN
SDI IN
POWER
+12V
1
7
6
4
2
8
5
3
9
10

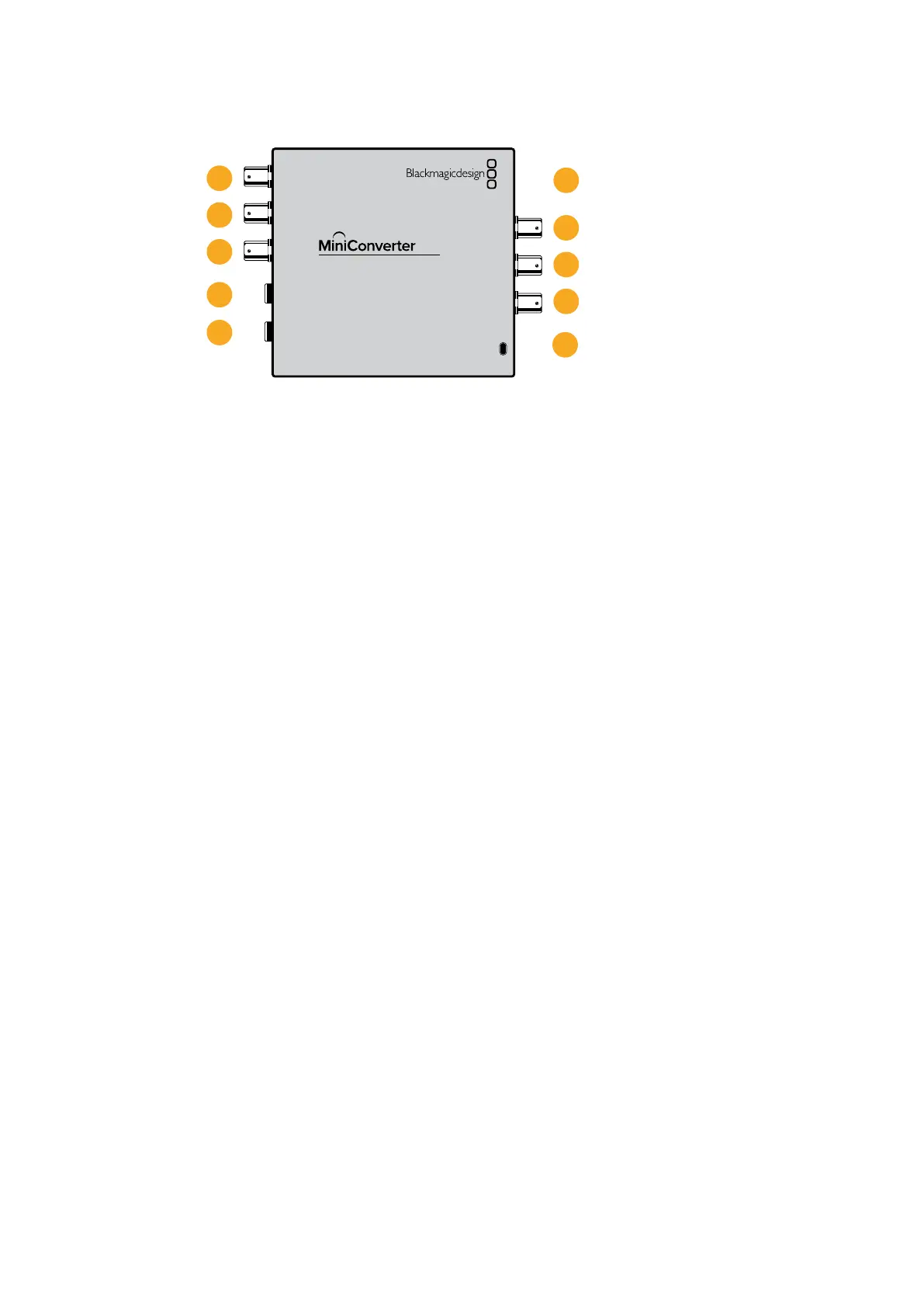

Connectors
1 Y or NTSC/PAL
Analog component Y, or composite NTSC/PAL output on a BNC connector.
2 B-Y or S-VIDEO Y
Analog component B-Y, or S-Video Y output BNC connector.
3 R-Y or S-VIDEO C
Analog component R-Y, or S-Video C output BNC connector.
4 L - ANALOG or AES/EBU
Balanced left channel analog audio, or AES/EBU digital audio output on a 1/4" jack
connector.
5 R - ANALOG
Balanced right channel analog audio output 1/4" jack connector.
6 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer.
TheMini Converter’s internal software is also updated using the USB port.
7 SDI OUT
SDI video output on a BNC connector.
8 ALT SDI IN
Redundant SDI input is provided as an optional back up.
9 SDI IN
Primary SDI input.
10 POWER +12V
12 volt power supply input.
Switches
Switch 8 - Analog Audio, AES/EBU Audio
Set switch 8 to OFF to select balanced analog audio, or to ON for digital AES/EBU audio output.
Switch 7 - 7.5 IRE - 0.0 IRE
The USA and countries using NTSC with 7.5 setup should set switch 7 to OFF. If you’re working
in countries not using 7.5 setup, set switch 7 to ON. This setting only affects composite or
S-Video outputs.
Blackmagic Mini Converters 50
