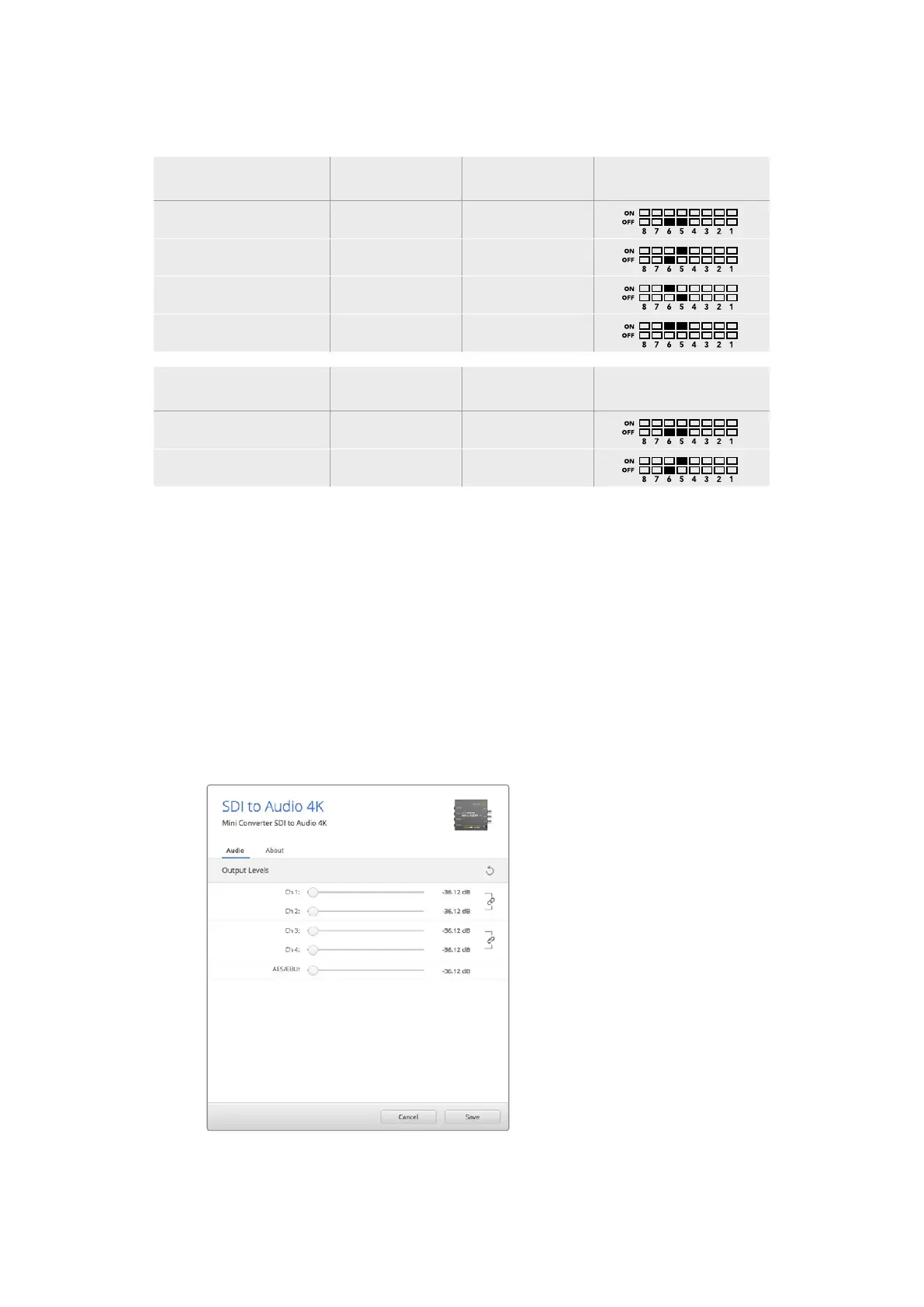

Audio Selection Tables
Analog Audio Channels Switch 6 Switch 5 Switch Diagram
1 to 4 OFF OFF
5 to 8 OFF ON
9 to 12 ON OFF
13 to 16 ON ON
AES/EBU Channels Switch 6 Switch 5 Switch Diagram
1 to 8 OFF OFF
9 to 16 OFF ON
Blackmagic Converters Setup Settings
The Converters Setup utility can be used to change settings and update your Mini Converter’s
software. You can access these settings by moving between the ‘audio,’ and ‘about’ tabs.
The ‘about’ tab is detailed in the ‘changing settings’ section in this manual.
The ‘audio’ tab for Mini Converter SDI to Audio 4K contains the following settings.
Output Levels menu
This menu allows you to adjust the gain on the audio output. You can adjust audio levels
independently per channel, or together as channel pairs by clicking the ‘link’ icon next to their
sliders. To reset all audio levels back to 0 dB click the ‘reset’ button at the top of the ‘output
levels’ menu.
Use the ‘audio’ tab in Converters Setup to adjust analog audio levels.
Blackmagic Mini Converters 67
