Audio Channel De-Embed or Disable Settings
Switch Setting Audio Channels
4
ON Disable analog CH 4, AES/EBU CH 7 and 8
OFF Embed analog CH 4, AES/EBU CH 7 and 8
3
ON Disable analog CH 3, AES/EBU CH 5 and 6
OFF Embed analog CH 3, AES/EBU CH 5 and 6
2
ON Disable analog CH 2, AES/EBU CH 3 and 4
OFF Embed analog CH 2, AES/EBU CH 3 and 4
1
ON Disable analog CH 1, AES/EBU CH 1 and 2
OFF Embed analog CH 1, AES/EBU CH 1 and 2
The switch legend on the base of your converter gives you
alltheinformation you need to change conversion settings.

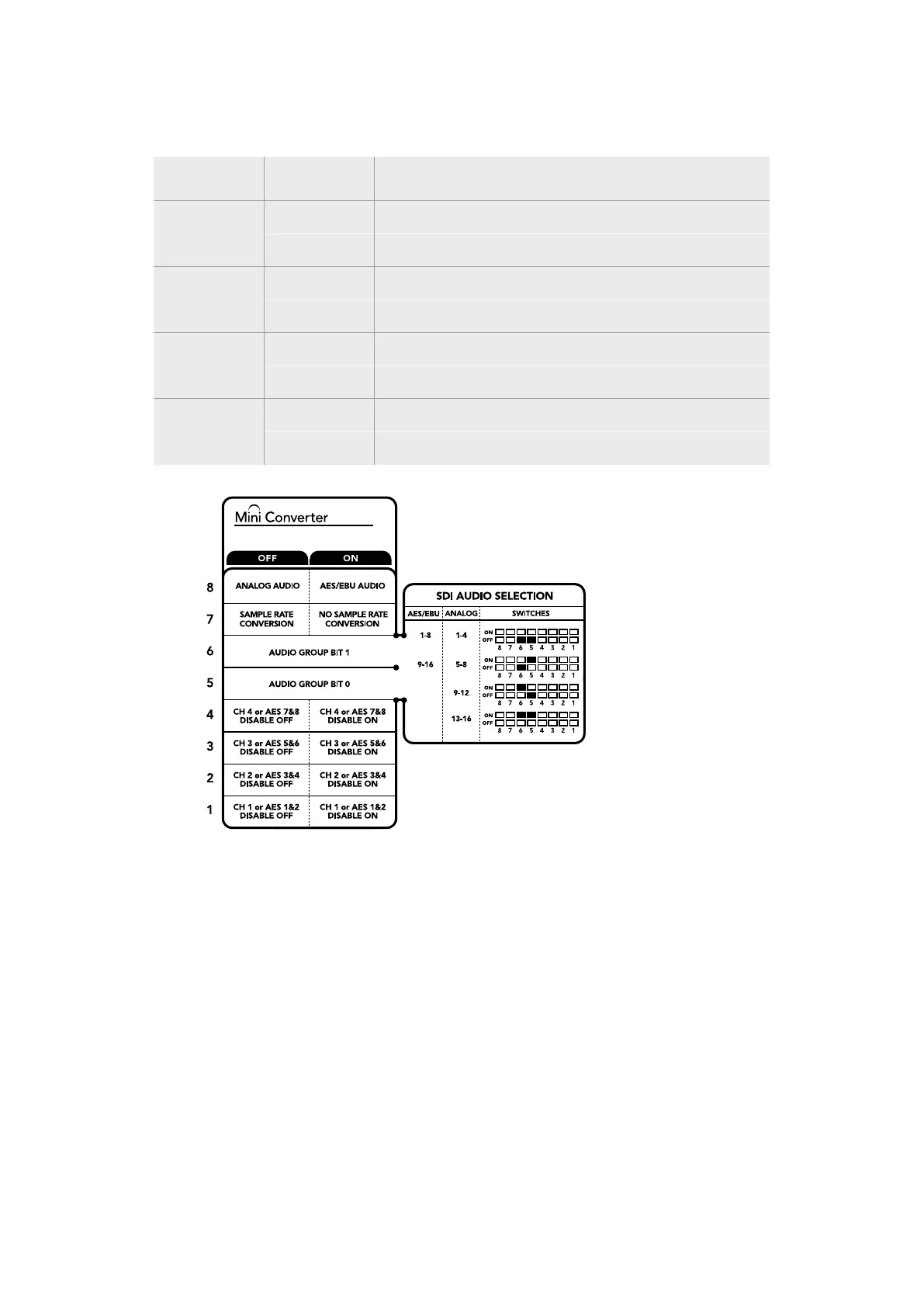

Mini Switch Settings Example
Try experimenting with the switches. Select analog audio channels 1 to 4 by setting switches 8,
6 and 5 to the OFF position.
Blackmagic Converters Setup Settings
The Converters Setup utility can be used to change settings and update your Mini Converter’s
software. You can access these settings by moving between the ‘audio,’ and ‘about’ tabs.
The ‘about’ tab is detailed in the ‘changing settings’ section in this manual.
The ‘audio’ tab for Mini Converter Audio to SDI 4K contains the following settings.
Blackmagic Mini Converters 74
