Operating Manual BMP-320
General
3.6 The scarifying drum
The heart of the scarifier is the scarifying drum.
The assembly of the scarifying drum is very easy. Each tool will be
pushed on the axle together with spacers according to the enclosed
assembly plans. The spacers ensure the necessary distance between
the flailes. The enclosed assembly plans take into account the
required lateral clearance of the flailes, approximately 3 - 5 mm.

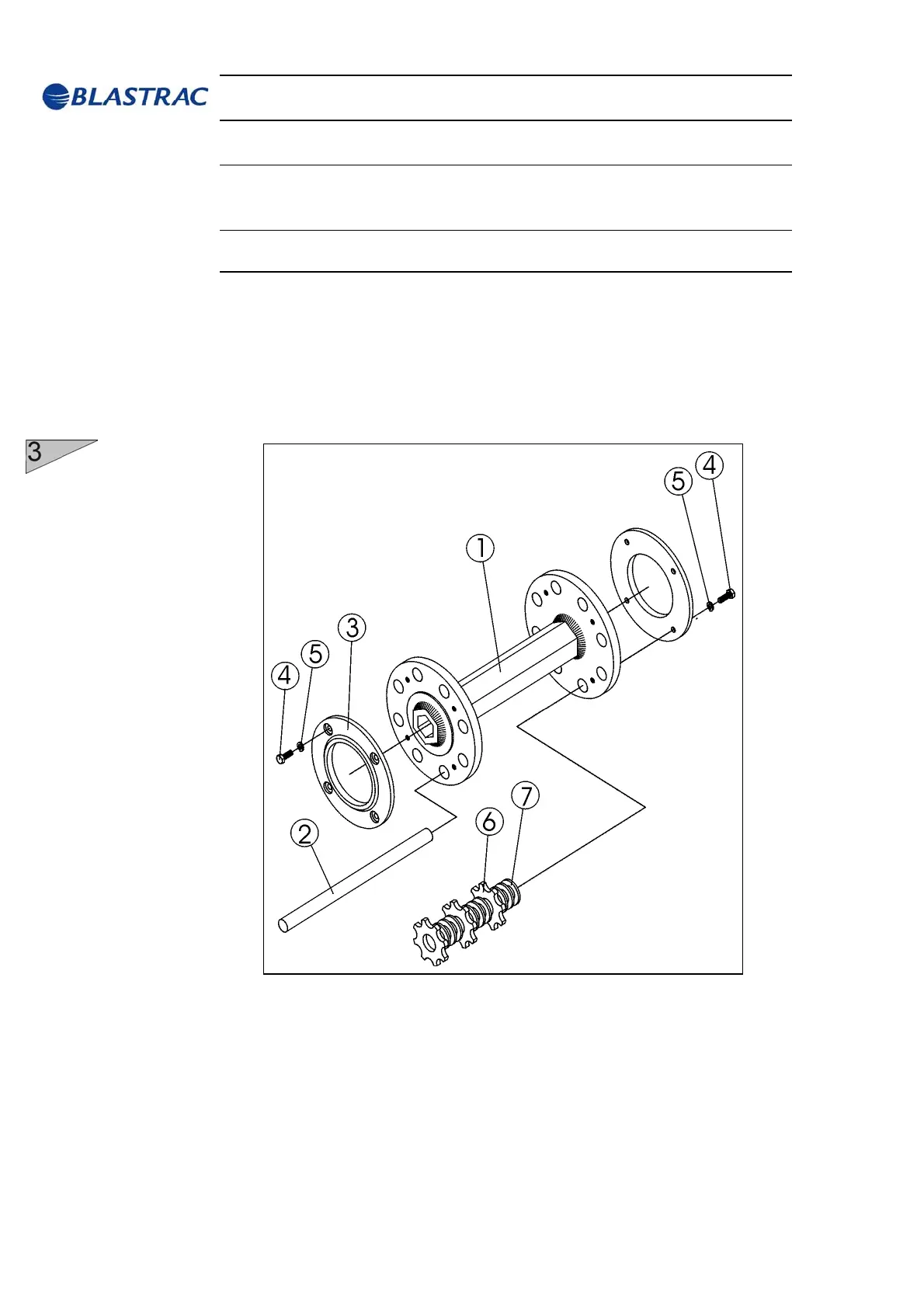

Fig. 3.2
1 Scarifying drum
2 Axle
3 Lock plate
4 Safety screw
5 Washer
6 Scarifying flaile
7 Spacer
6
