Blaupunkt Calais MP48 User Manual

281
TÜRKÇE
ENGLISH DEUTSCHFRANÇAISITALIANOESPAÑOL
PORTUGUÊSNEDERLANDS
SVENSKA

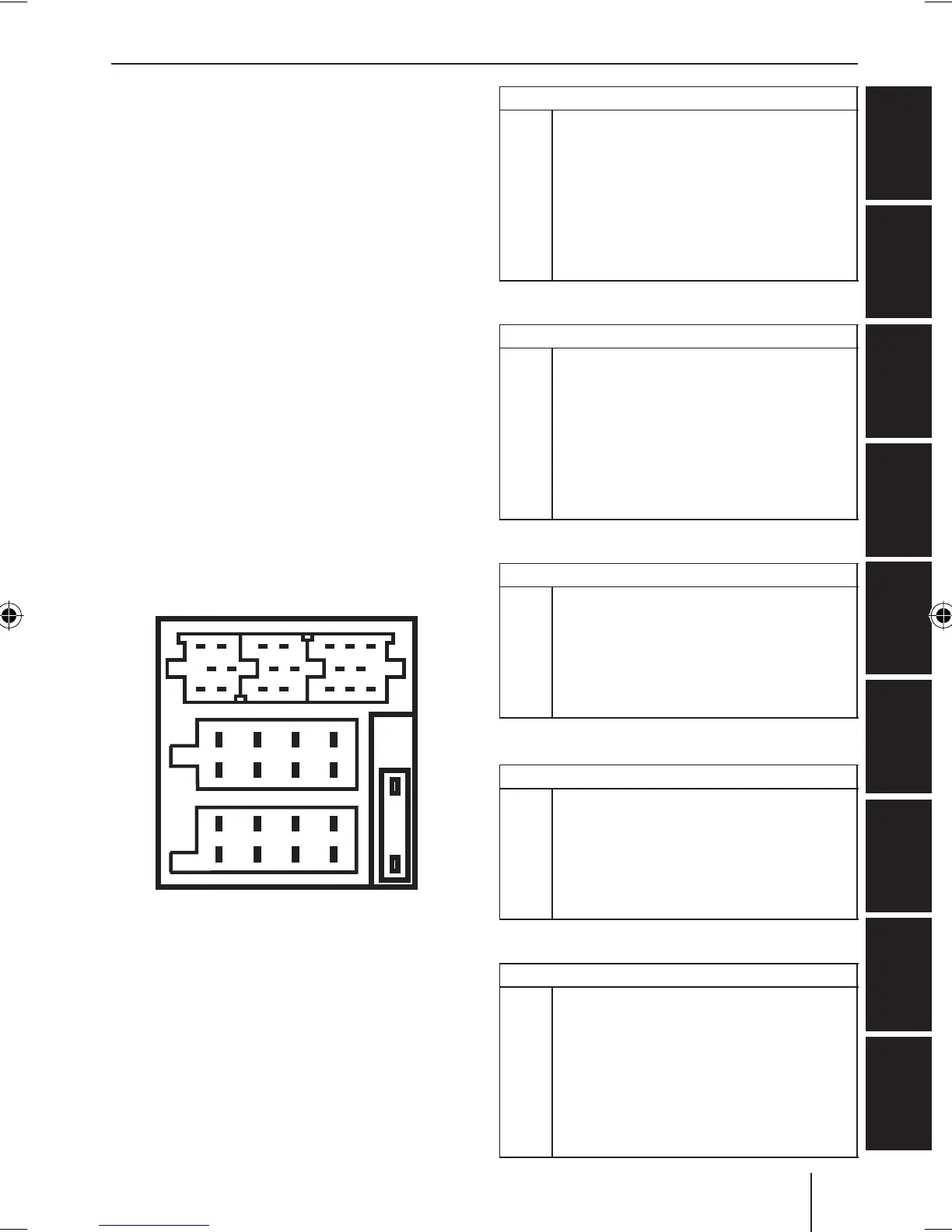

ISO Connector
A POWER SUPPLY CONNECTOR
1 –
2 GALA
3 –
4 IGNITION
5 ANTENNA SUPPLY (12V OUT, I max 100mA)
6 DIM
7 BATTERY
8 GND
B SPEAKER CONNECTOR
1 –
2 –
3 SPEAKER RF +
4 SPEAKER RF –
5 SPEAKER LF +
6 SPEAKER LF –
7 –
8 –
C1 PREAMP CONNECTOR
1 LINE OUT LF
2 LINE OUT RF
3 LINE OUT GND
4 SUBWOOFER-OUT
5 SUBWOOFER-OUT GND
6 EXT. AMP. ON (12V OUT, I max 100mA)
C2 PHONE CONNECTOR
7 PHONE AF IN
8 PHONE GND
9 PHONE MUTE ( LOW ACTIVE)
10 –
11 –
12 –
C3 AUX CONNECTOR
13 DATA IN
14 DATA OUT
15 UB (12V OUT)
16 REMOTE (12V OUT, I max 100mA)
17 DATA GND
18 AF GND
19 AF LEFT
20 AF RIGHT
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
C
B
A
14
7
10 13
16
19
3
6
9
12
15
18
2
58
11
14 17
20
C-1 C-2 C-3
10_ISO_AnschlCalxxLG.indd 28110_ISO_AnschlCalxxLG.indd 281 11.06.2008 15:10:37 Uhr11.06.2008 15:10:37 Uhr

Blaupunkt Calais MP48 Specifications

General

Brand	Blaupunkt
Model	Calais MP48
Category	Car Receiver
Language	English
