Power terminals

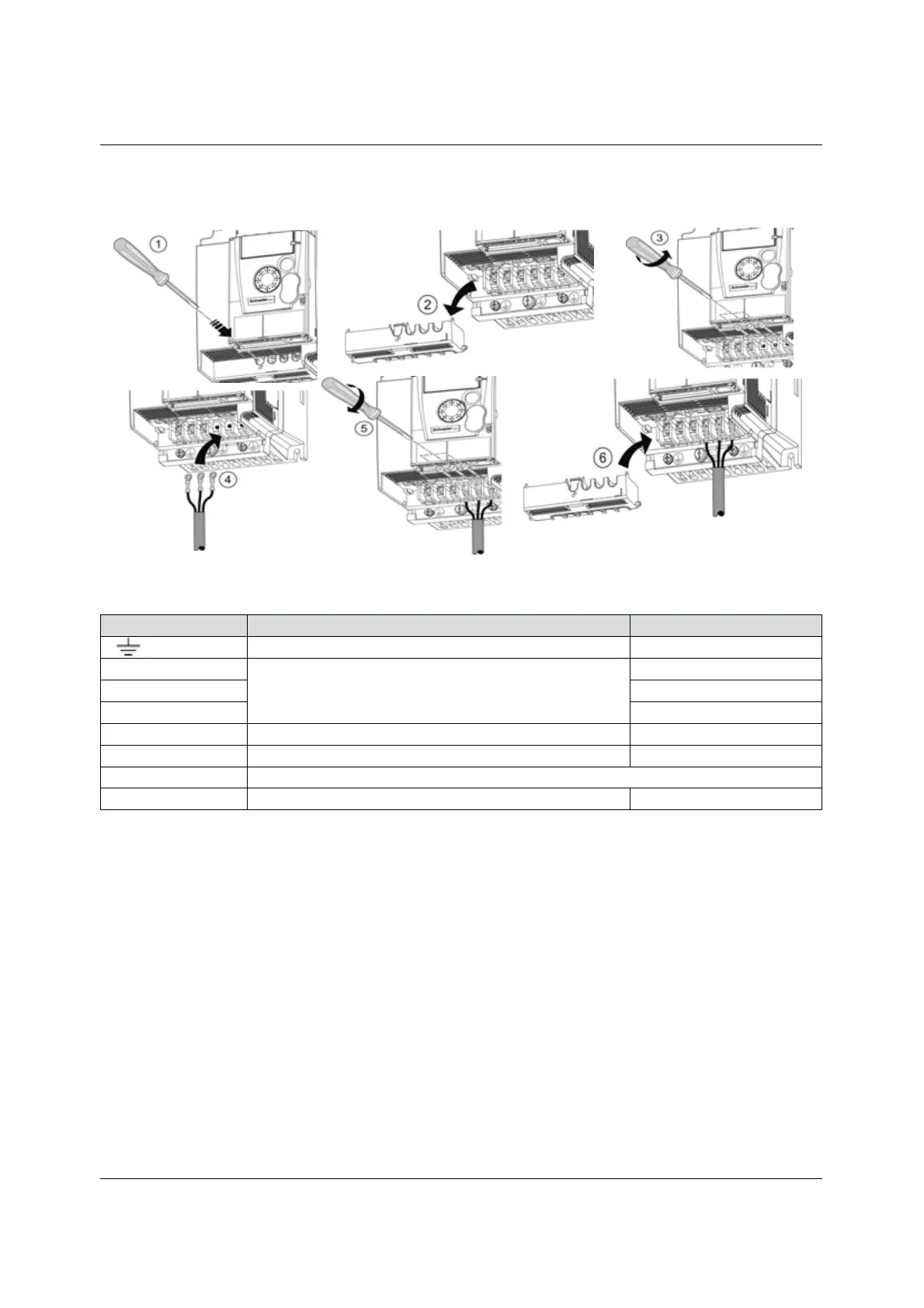

Access to the motor terminals if you use ring terminals
Characteristics and functions of power terminals
Terminal Function For ER12
Ground terminal All ratings
R/L1 - S/L2/N Power supply 1-phase 100…120 V
R/L1 - S/L2/N 1-phase 200…240 V
R/L1 - S/L2 - T/L3 3-phase 200…240 V
PA/+ + output (dc) to the braking module DC Bus (divisible part on wiring trap) All ratings
PC/- – output (dc) to the braking module DC Bus (divisible part on wiring trap) All ratings
PO Not used
U/T1 - V/T2 - W/T3 Outputs to the motor All ratings
