66
Configuration Mode - Complete menu (FULL)
Code Name/Description Adjustment range Factory setting
FUn-
Function menu (continued)
JOG
• Jog assignment
nO
nO
L1H
L2H
L3H
L4H

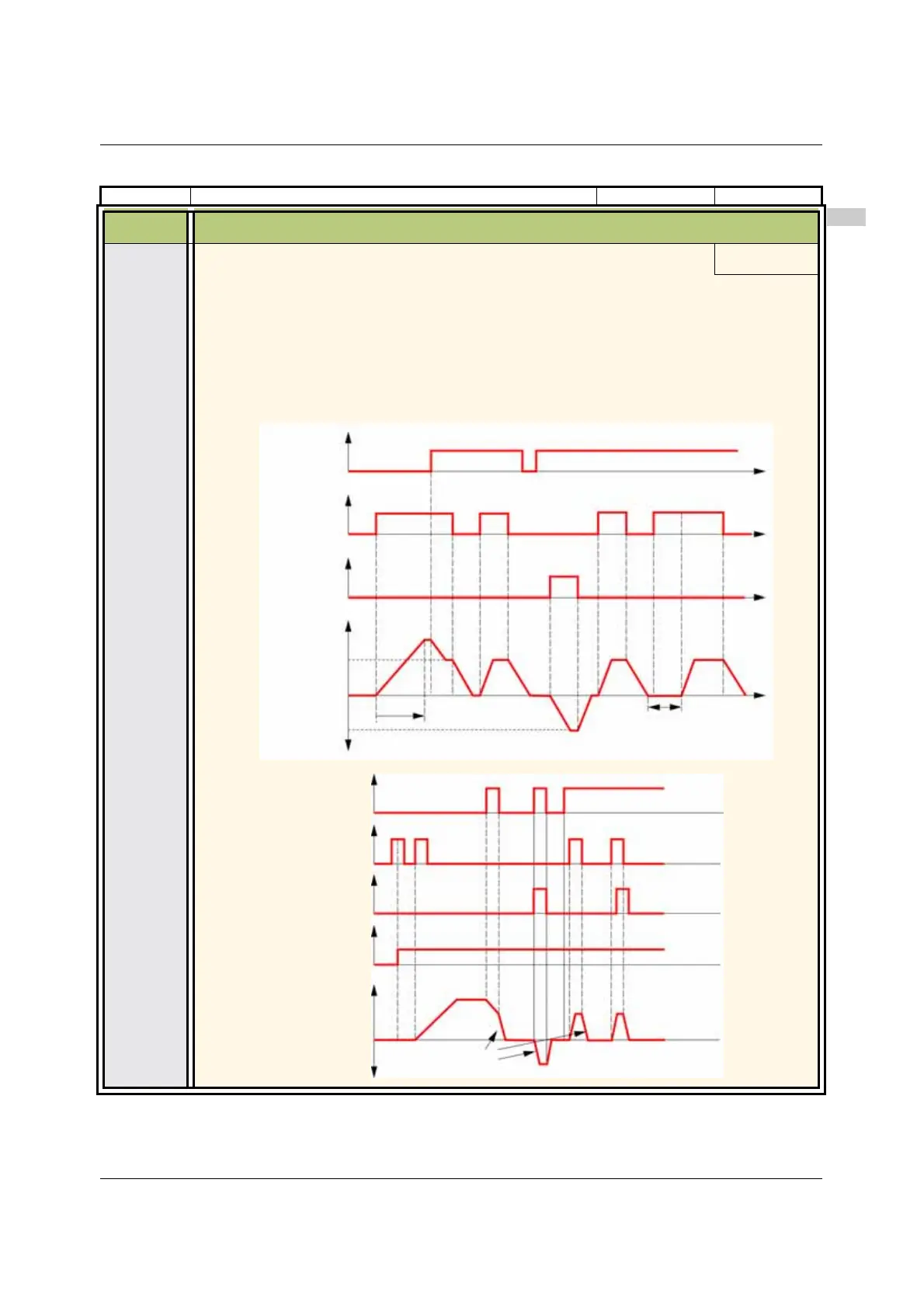

This parameter provides step by step control of motor running, using a logic input associated with a 2 and
3-wire control logic input. The jog frequency is fixed at 5 Hz. Acceleration and decelaration ramps taken
into account in the Jog function are 0.1 s.
• Function inactive.
• L1h: LI1 active high
• L2h: LI2 active high
• L3h: LI2 active high
• L4h: LI4 active high
2-wire control
3 wire control
I-O-
drC-
CtL-
FUN-
FLt-
COM-
Jog
Forward
Reverse
Motor
Frequency
5Hz
5Hz
Acceleration
0,5s
og
Forward
Reverse
Motor
Frequency
5Hz
5Hz
Normal
ramp
Jog
ramp
LI1 Run
