Applicative notes

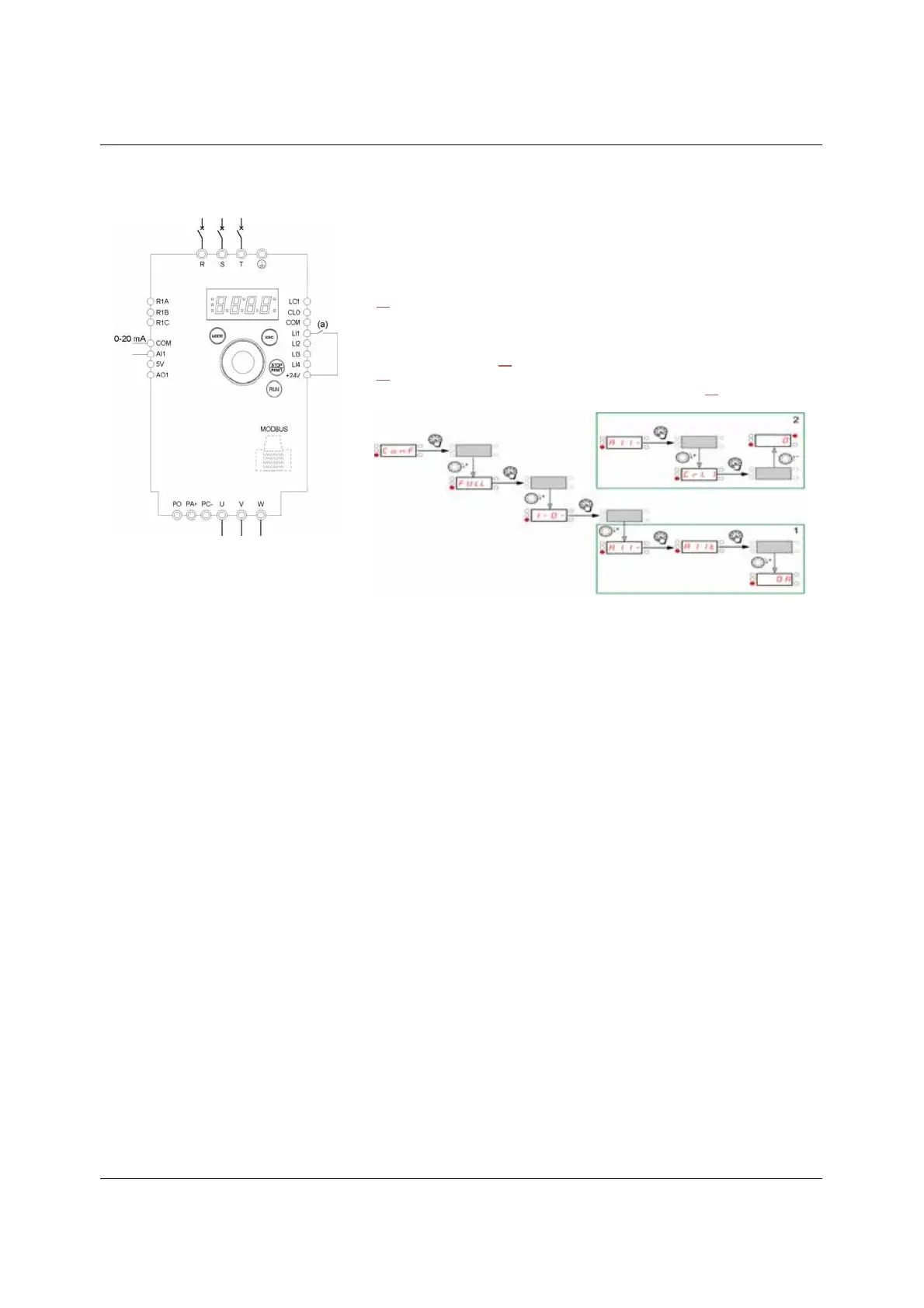

Speed control 0-20 mA (source)
(a) Run Forward
1. Connect the ground terminal to the grounding screws located below the output
terminals.
2. Connect the power terminals.
3. Connect the logic input LI1 and analog input AI1.
4. Turn on the drive without giving a run command.
5. Assign factory settings to the drive, Factory / recall customer parameter set FCS page
45
set to InI.
6. Set the motor parameters (in COnF mode) only if the factory configuration of the drive
is not suitable.
7. Perform an auto-tuning.
8. Set AI1 type AI1t page 51
to OA and AI1 current scaling parameter of 0% CrL1 page
51
to 0 A.
Check that AI1 current scaling parameter of 100% CrH1 page 51
is set to 20 mA.
9. Start.
